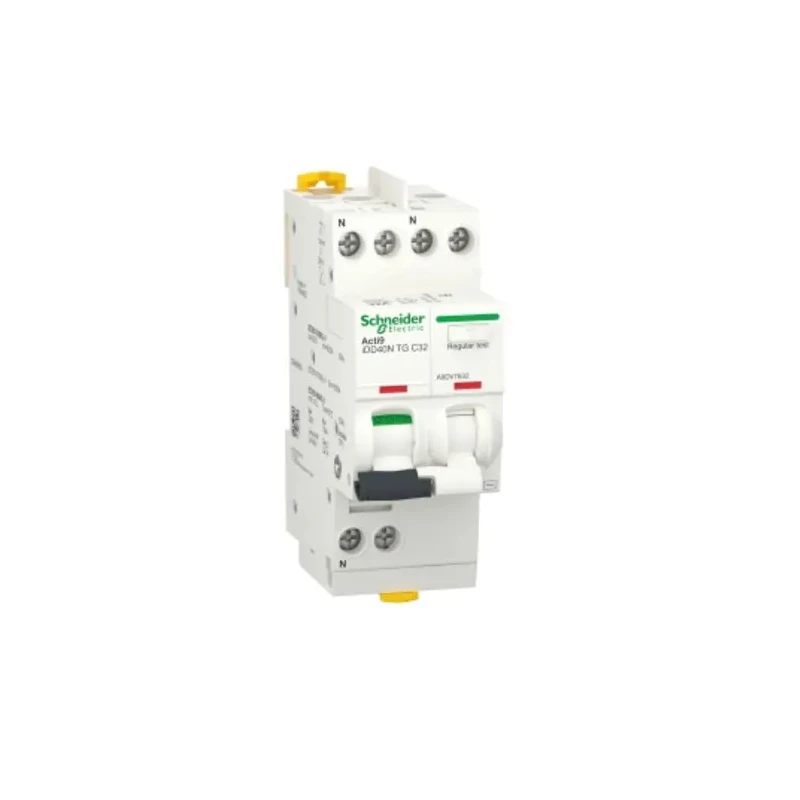

Schneider Electric Residual Current Circuit Breaker with Overload Protection 32A Current Rating 1-Pole 300 mA Trip A9DV7632

Schneider Electric A9DV7632 Residual Current Circuit Breaker with Overload Protection is a state-of-the-art electrical protection device offering a 32A current rating with a 1-pole design and 300 mA trip sensitivity. It employs thermal magnetic technology with an instantaneous earth-leakage protection time delay that safeguards residential and industrial electrical circuits from short circuits and overload currents.

The breaker features a toggle switch reset actuator enabling easy ON/OFF operation and trip indication for fast diagnostics. It mounts securely on standard DIN rails and incorporates tunnel type terminals ensuring reliable and safe wiring connections. This device conforms to RoHS compliance and EN/IEC 60947-2 standards, reflecting its adherence to stringent electrical safety and environmental norms.

Compact in size with dimensions of 93mm height, 73mm depth, and 36mm width, it fits efficiently into electrical distribution systems. It guarantees a breaking capacity of 10kA, essential for interrupting short circuits effectively. The breaker withstands impulse voltages up to 4 kV and is rated for ambient operation between -5°C and 60°C, tolerating relative humidity up to 95% at 55°C, ensuring robust performance in varied environments.

Additional features include padlockability for enhanced safety and the credibility of Schneider Electric’s Acti9 series products recognized for premium quality and sustainability credentials. This Residual Current Circuit Breaker is ideal for applications involving residential, overcurrent protection, and distribution systems where high safety standards and reliable performance are paramount.

Features thermal magnetic tripping mechanism with instantaneous earth-leakage protection time delay. Toggle switch actuator provides ON/OFF control and trip indication. Designed for DIN rail mounting with tunnel type terminals.

Complies with RoHS and EN/IEC 60947-2 standards. Compact dimensions of 93mm height, 73mm depth, and 36mm width. Breaking capacity of 10kA for effective short circuit interruption. Impulse withstand voltage of 4 kV ensures durability against transients.

Padlockable for added operational safety. Operates reliably in ambient temperatures from -5 °C to 60 °C with 95% humidity tolerance. Part of Schneider Electric’s premium Acti9 series products.

Used widely in residential, industrial, and commercial electrical applications, the A9DV7632 model ensures compliance and robust protection. Explore more Schneider Electric circuit breakers and related electrical protection devices on EnvMart.
