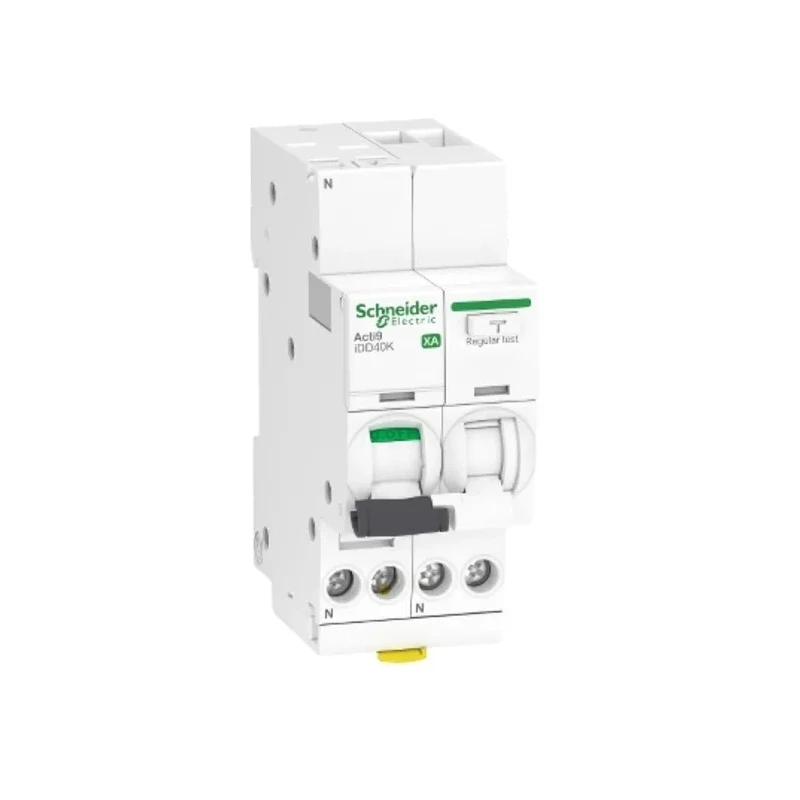

Schneider Electric Residual Current Circuit Breaker with Overload Protection 16A Current Rating 1-Pole 30mA Trip A9DS1616

Schneider Electric A9DS1616 Residual Current Circuit Breaker with Overload Protection provides advanced circuit protection with a 16A current rating, 1-pole configuration, and 30mA trip sensitivity designed for residential and overcurrent applications. This device utilizes thermal-magnetic trip unit technology that incorporates instantaneous earth-leakage protection with a timed delay for enhanced safety.

The product features a toggle switch actuator with ON/OFF and trip status indicators, simplifying user operation. Its DIN rail mounting capability allows for convenient installation in electrical distribution panels. The breaker meets important standards such as RoHS and EN/IEC 60947-2, ensuring compliance with electrical safety and environmental protection norms.

With a breaking capacity of 4.5kA, this circuit breaker effectively protects against short circuits and overload currents. Its compact size, measuring 85mm in height, 73mm in depth, and 36mm in width, makes it suitable for various panel designs without occupying excessive space. The breaker’s earth leakage protection type is AC, providing reliable detection and interruption of AC leakage currents. Featuring type C tripping characteristics, it responds reliably to overload conditions in typical residential electrical circuits.

This model operates at a rated AC voltage of 230V, accommodating standard residential and commercial power supplies. It is padlockable, adding an extra layer of safety by preventing accidental or unauthorized switching. Schneider Electric’s Acti9 series represents premium quality products designed for durability and consistent performance in electrical distribution and protection applications.

Manufactured in France, the A9DS1616 ensures adherence to high-quality manufacturing processes and materials. This product is ideal for use in residential electrical systems, distribution boards, and overcurrent protection mechanisms where reliability and safety are priorities.

Incorporates thermal-magnetic trip technology with delayed earth leakage protection. Toggle switch actuator includes ON/OFF and trip indicator features. DIN rail mounting facilitates simplified panel installation. Meets RoHS and EN/IEC 60947-2 standards for compliance and safety.

4.5kA breaking capacity suitable for residential and commercial applications. Compact form factor with dimensions: 85mm (H) x 73mm (D) x 36mm (W). AC earth leakage protection with 30mA trip sensitivity. Rated for operation at 230V AC voltage.

Padlockable design for enhanced safety and unauthorized access prevention. Manufactured in France ensuring quality and reliability. Explore more Schneider Electric circuit protection devices and accessories at EnvMart for dependable electrical safety solutions.
