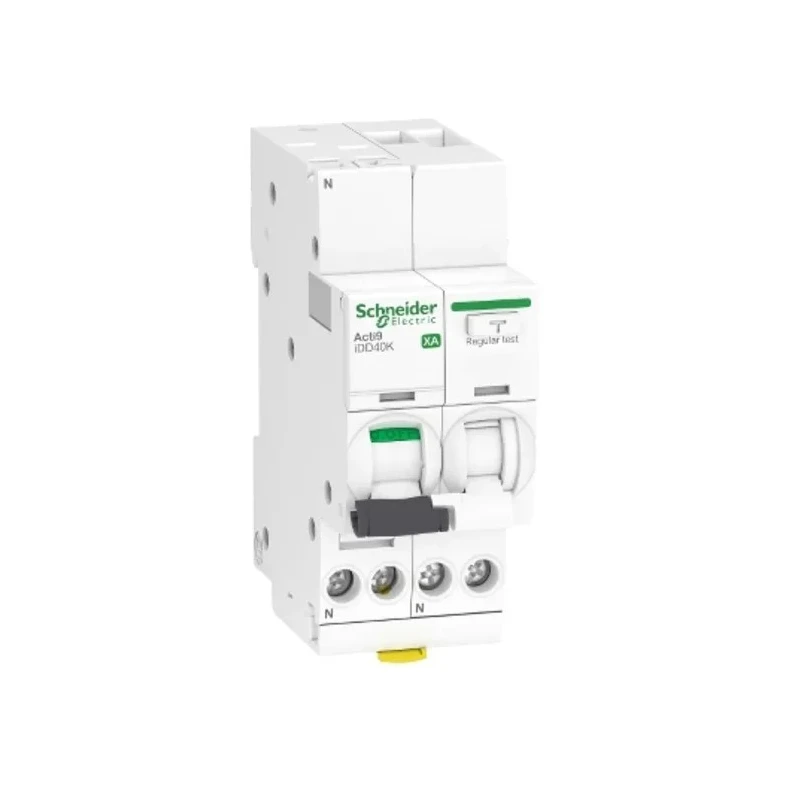

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A 1-Pole 30 mA Trip A9DS1620
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DS1620 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | ACTI9 iDD40K XA |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 60947-2, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- Equipped with thermal-magnetic tripping mechanism for reliable overload and short circuit protection.
- Type C tripping characteristics suitable for general purpose electrical applications.
- Compact DIN rail mounting ensures easy installation in electrical panels.
- Rated for 230V AC operation with a breaking capacity of 4.5 kA.
- Toggle switch actuator with ON/OFF and trip indicator for clear status indication.
- Designed with tunnel type terminals for secure wiring connections.
- Impulse withstand voltage rating of 4 kV ensures durability against transient surges.
- Padlockable switch provides additional safety by preventing unauthorized operation.
Product Description
Schneider Electric A9DS1620 Residual Current Circuit Breaker with Overload Protection is engineered to provide dependable circuit protection in residential, commercial, and industrial electrical distribution systems. This device combines instantaneous earth-leakage protection with thermal-magnetic trip technology, ensuring prompt response to overloads and short circuits.
Featuring a 20A current rating and a highly sensitive 30 mA residual current trip threshold, it effectively prevents electrical hazards such as electric shocks and fire risks caused by leakage currents.
The 1-pole design is suitable for single-phase installations and is part of the Acti9 iDD40K XA series, known for its high performance and compact size. Its DIN rail mounting facilitates straightforward integration into existing electrical panels.
With a robust breaking capacity of 4.5 kA and compliance with international standards EN/IEC 60947-2 and RoHS, it meets stringent safety and environmental requirements. The toggle switch actuator incorporates a clear ON/OFF and trip indicator, enhancing ease of use and maintenance.
The breaker is designed to operate effectively in environments with ambient temperatures from -5 to 60 °C and can handle a relative humidity of up to 95 % at 55 °C, making it suitable for various climatic conditions. Additional safety is provided by the padlockable control switch, preventing unintended operations.
Equipped with thermal magnetic tripping mechanism. Rated AC voltage of 230V. Compact dimensions: height 85 mm, width 36 mm, depth 73 mm. Earth leakage protection type AC with trip sensitivity of 30 mA. Toggle switch reset actuator type for easy manual operation.
Breaking capacity of 4.5 kA ensures reliable fault interruption. Standards compliant: EN/IEC 60947-2 and RoHS. Padlockable switch for enhanced operational safety.
This residual current circuit breaker with overload protection is ideal for ensuring electrical safety in industrial, residential, and commercial electrical distribution setups. Its high reliability and compliance make it a preferred choice for electrical engineers and contractors.
Explore more Schneider Electric products and Residual Current Circuit Breakers in the EnvMart catalog for comprehensive electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A.
It has a breaking capacity of 4.5 kA, ensuring reliable fault interruption.
It employs a thermal magnetic tripping mechanism for effective overload and short circuit protection.
The rated AC voltage for this circuit breaker is 230V.
This unit has a height of 85 mm, a width of 36 mm, and a depth of 73 mm.
It is designed for DIN rail mounting, facilitating easy installation in electrical panels.
The trip sensitivity is 30 mA, providing effective protection against leakage currents.
It complies with the EN/IEC 60947-2 and RoHS standards, ensuring safety and environmental compliance.
This circuit breaker features AC type earth leakage protection.
It has Type C tripping characteristics, suitable for general purpose electrical applications.
The reset actuator type is a toggle switch, allowing for easy manual operation.
It includes a padlockable switch to prevent unauthorized operation, enhancing safety.
