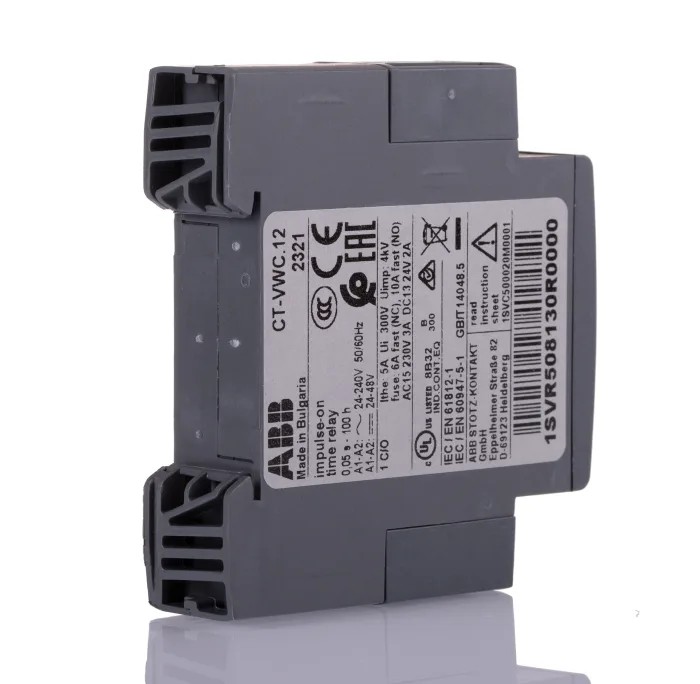

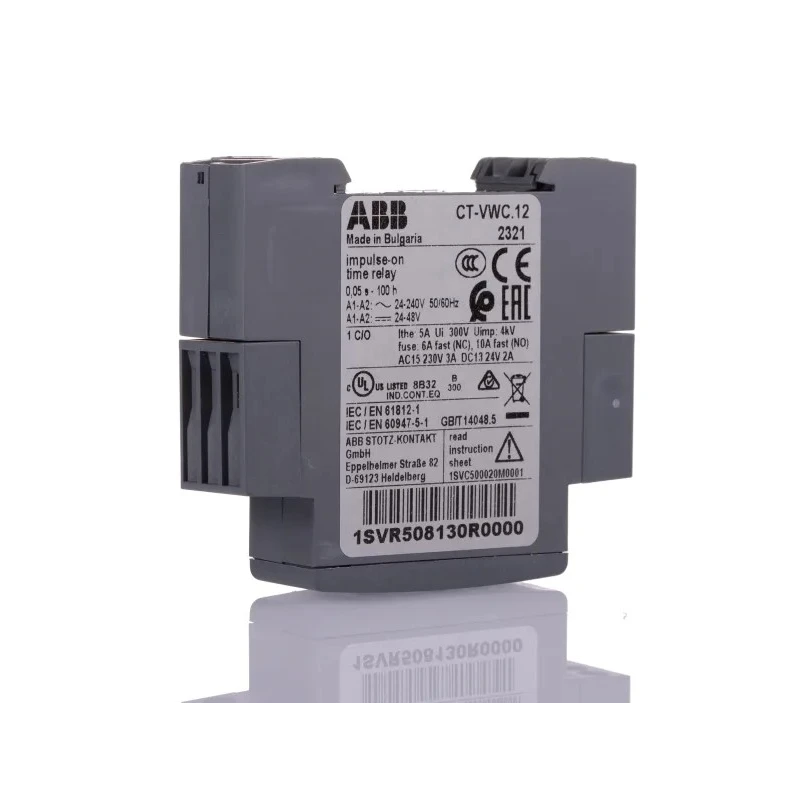

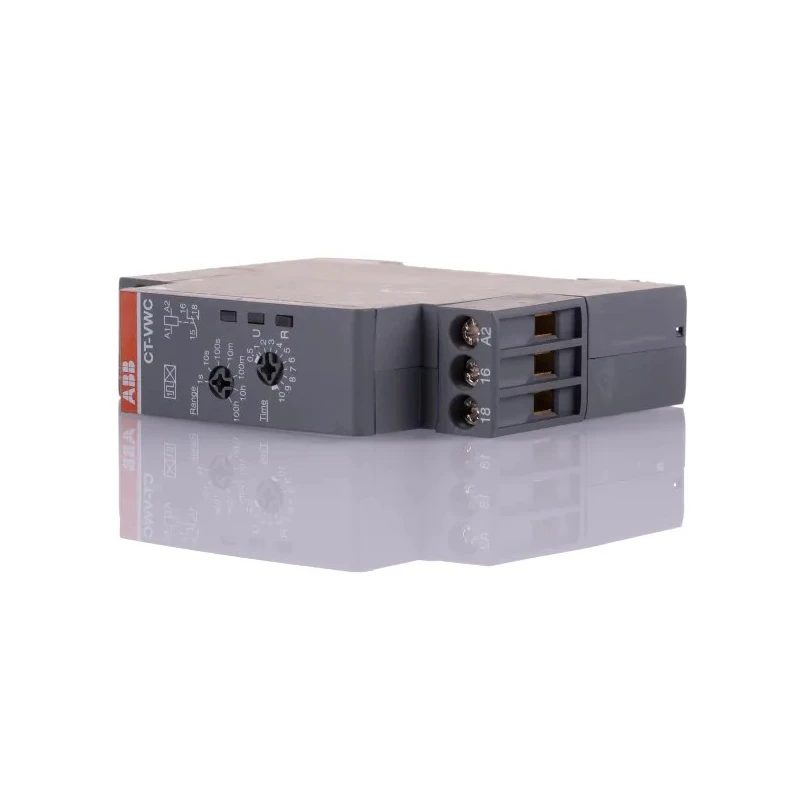

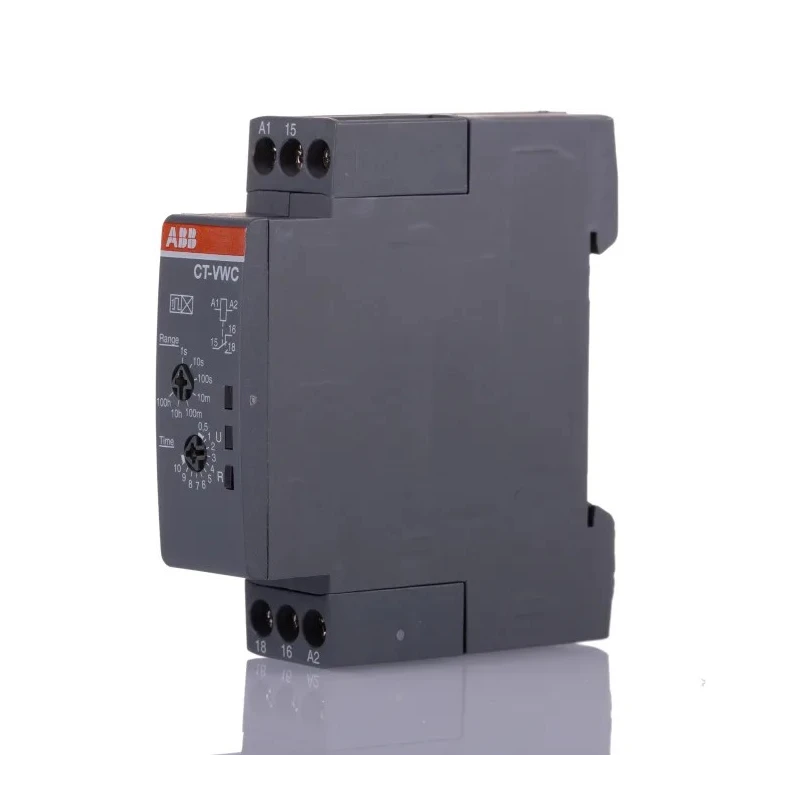

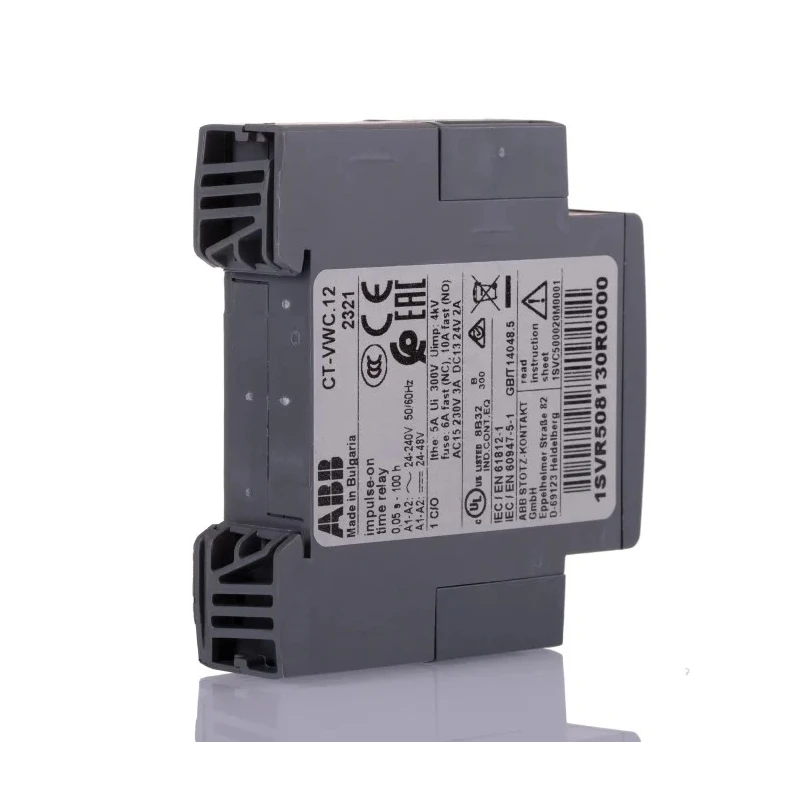

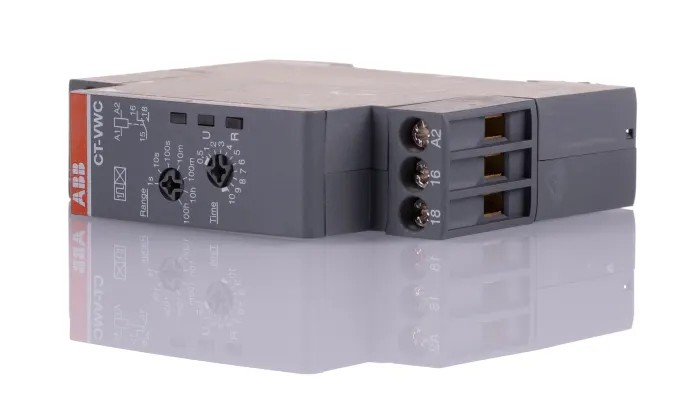

ABB CT-C Series DIN Rail Snap-On Timer Relay 24 to 48 V DC, 24 V AC, 240 V AC, 0.05 s to 100 h, 1-Function 1SVR508130R0000

ABB 1SVR508130R0000 CT-C Series DIN Rail Snap-On Timer Relay operates within a voltage range of 24 to 48 V DC, 24 V AC, and 240 V AC, with an impulse ON timer function spanning 0.05 seconds to 100 hours, ensuring precise control over timing functions in electrical automation systems. The relay features a single timer function combined with a SPDT (Single Pole Double Throw) switch configuration, ideal for switching and controlling circuits in industrial, commercial, and manufacturing environments.

With dimensions measuring 63mm in height, 63mm in length, and 17.5mm in width, the compact design fits neatly on DIN rails, complemented by a snap-on mounting mechanism enabling easy, tool-free installation. The screw terminal type ensures straightforward, secure wiring and connectivity.

This timer relay is rated for an operating temperature range of -20°C to 60°C, making it robust for use in harsh environments. It carries IP20 and IP50 ingress protection ratings, shielding internal components from solid objects and dust. The relay supports a contact current capacity of 4A and can switch voltages up to 300V, supporting a wide range of industrial applications.

Typical applications include lighting control circuits, conveyor system operations, ventilation control, and motor start control, where reliable time-delay switching is critical. The durable plastic housing provides insulation and resistance to vibrations and humidity, contributing to its longevity and stable performance.

Standards compliance includes CAN/CSA C22.2 No.14, EN 50581, IEC 61812-1, and UL 508, ensuring safety and quality assurance for electrical installations. Equipped with a single timer function and SPDT switch for versatile control.

Compact design with dimensions 63mm height, 63mm length, and 17.5mm width for space-saving panel installation. Robust screw terminal connections ensure secure and reliable wiring. Wide operating temperature range from -20°C to 60°C for stable performance in harsh environments.

Suitable for DIN rail mounting with snap-on feature for tool-free installation. IP20 and IP50 rated for protection against ingress of solid objects and dust. Rated for contact current of 4A and switching voltage up to 300V.

Used widely in lighting circuits, conveyor units, ventilation systems, and motor start control. Manufactured with robust plastic housing that offers insulation and vibration resistance. Conforms to CAN/CSA C22.2 No.14, EN 50581, IEC 61812-1, and UL 508 standards.

The ABB CT-C Series Timer Relay 1SVR508130R0000 is ideal for use in industrial automation, electrical panels, HVAC control systems, manufacturing processes, and other settings requiring reliable timing functions. Users benefit from quick and safe installation, flexible timing control, and durable build quality with this product.
