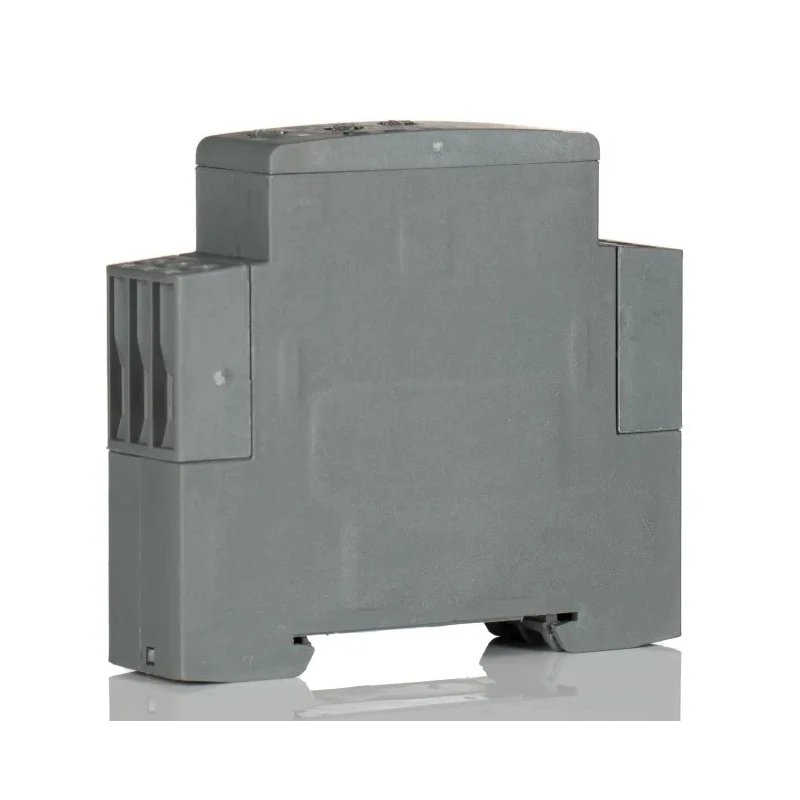

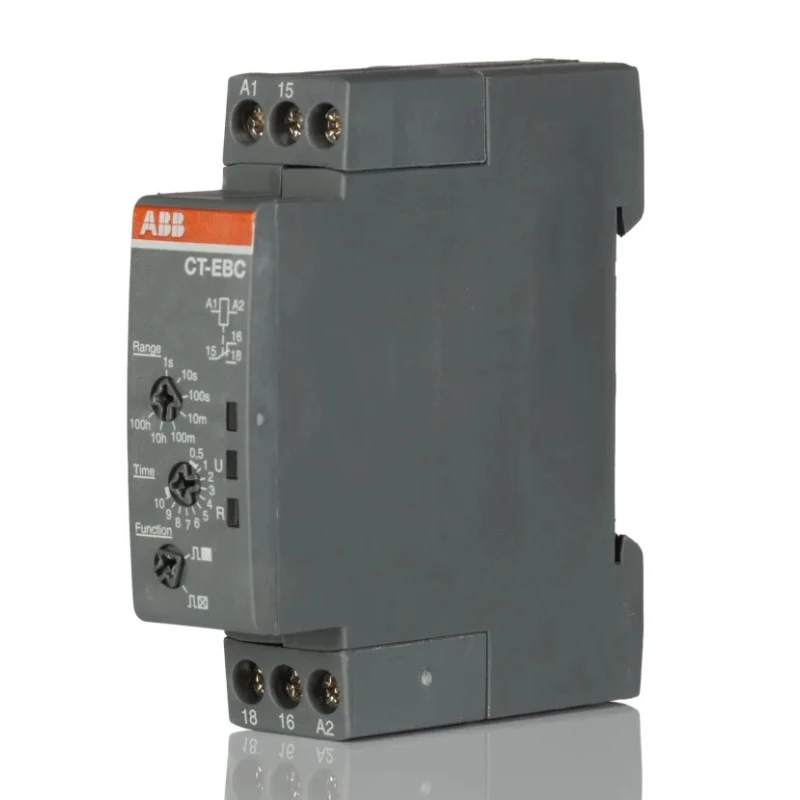

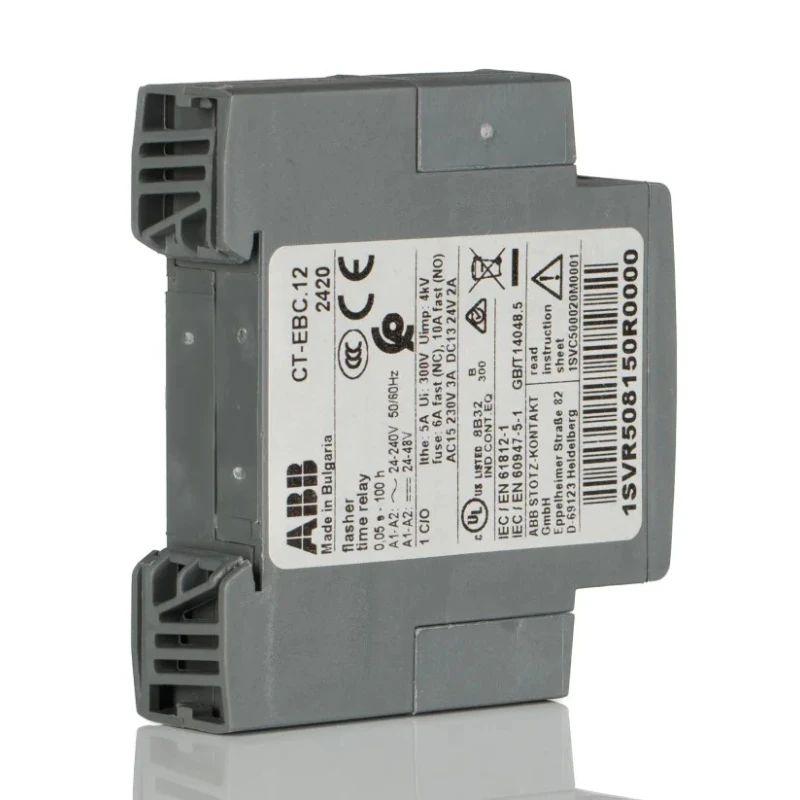

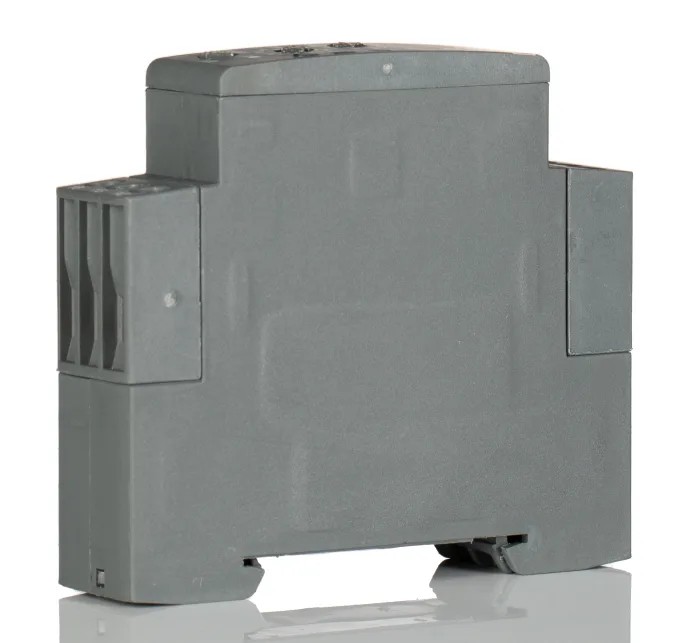

ABB CT-C Series DIN Rail Snap-On Timer Relay 1-Contact SPDT, 110 to 130 V AC, 0.1 to 10 s, 1-Function 1SVR508150R0000
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Brand | ABB |
| Height | 78.5mm |
| Length | 78.5mm |
| Model | 1SVR508150R0000 |
| IP Rating | IP20, IP50 |
| Mode | Cycling / Flasher |
| Width | 22.5mm |
| Mount Type | DIN Rail, Snap-On |
| Series | CT-C |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 to 10 s |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Number of Contacts | 1 |
| Number of Timer Functions | 1 |
| Contact Current | 4A |
| Supply DC Voltage | 110 to 130 V ac |
| Supply AC Voltage | 110, 130V ac |
| Patlite LED LED Light Bar, 24 V dc, IP66, IP67, IP69K, 200 mmBrand | Patlite |
Key Features
- Designed for easy snap-on DIN rail mounting for fast installation.
- Single pole double throw (SPDT) contact configuration.
- Operates on 110 to 130 V AC supply voltage for AC systems.
- Features a user-friendly dial to set delay without calculations.
- IP20 and IP50 ratings provide protection for industrial environments.
- Robust screw terminals ensure secure electrical connections.
- Wide operating temperature range from -20°C to 60°C.
- Resistant to reverse polarity reducing short circuit risk.
Product Description
ABB 1SVR508150R0000 CT-C Series DIN Rail Snap-On Timer Relay 1-Contact SPDT is engineered for reliable timing control with a flexible delay setting from 0.1 to 10 seconds. It operates on 110 to 130 V AC, ideal for low-voltage industrial and automation applications.
This timer relay includes a cycling/flasher function that continuously opens and closes to send repeating output signals, controlled via a front-facing dial. Its snap-on DIN rail mount allows quick, tool-free installation in various control panels.
Constructed with a screw terminal design and an IP20 rating with additional IP50 protection, it is suitable for use in demanding industrial environments, functioning reliably across a broad temperature range (-20°C to 60°C).
Key safety features include an insulated plastic housing and touch-proof contacts, ensuring safe handling during installation or maintenance. The device is robust enough for heavy use, rated for up to 4A contact current and offering a mechanical cycle life of 30 million operations.
Easy snap-on DIN rail installation for rapid setup. SPDT contact configuration supports versatile control needs. Adjustable timer function with 0.1 to 10 seconds delay. Durable construction for rugged industrial applications.
Safety features including insulated housing and touch-proof contacts. Resistant to reverse polarity to reduce short circuit risk. Broad operating temperature range from -20°C to +60°C. Reliable status indication with front-facing LEDs simplifies troubleshooting.
Mechanical lifespan rated at 30 million switching cycles for long-term use.
Typical applications include automotive indicator controls, warning and alarm systems, and airport equipment signaling. This product is manufactured to RoHS standards and originates from Bulgaria. Set your industrial control system with the dependable ABB 1SVR508150R0000 timer relay.
Explore the range of Timer Relays available on EnvMart for diverse electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates on a supply voltage of 110 to 130 V AC, making it suitable for low-voltage industrial and automation applications.
The timer relay features a delay setting range from 0.1 to 10 seconds, allowing for flexible timing control.
This timer relay has a single pole double throw (SPDT) contact configuration, which supports versatile control needs.
The dimensions of the unit are 78.5 mm in height, 78.5 mm in length, and 22.5 mm in width.
The maximum operating temperature for this model is 60°C, allowing it to function in a broad range of industrial environments.
It features a snap-on DIN rail mount, allowing for quick and tool-free installation in various control panels.
The timer relay has an IP20 rating with additional IP50 protection, providing suitable protection for industrial environments.
It is constructed with screw terminals, ensuring secure electrical connections for reliable operation.
Key safety features include an insulated plastic housing and touch-proof contacts, which ensure safe handling during installation or maintenance.
The mechanical cycle life of this model is rated at 30 million operations, indicating its capability for long-term use.
Yes, it is manufactured to RoHS standards, ensuring compliance with environmental regulations.
Typical applications include automotive indicator controls, warning and alarm systems, and airport equipment signaling.
