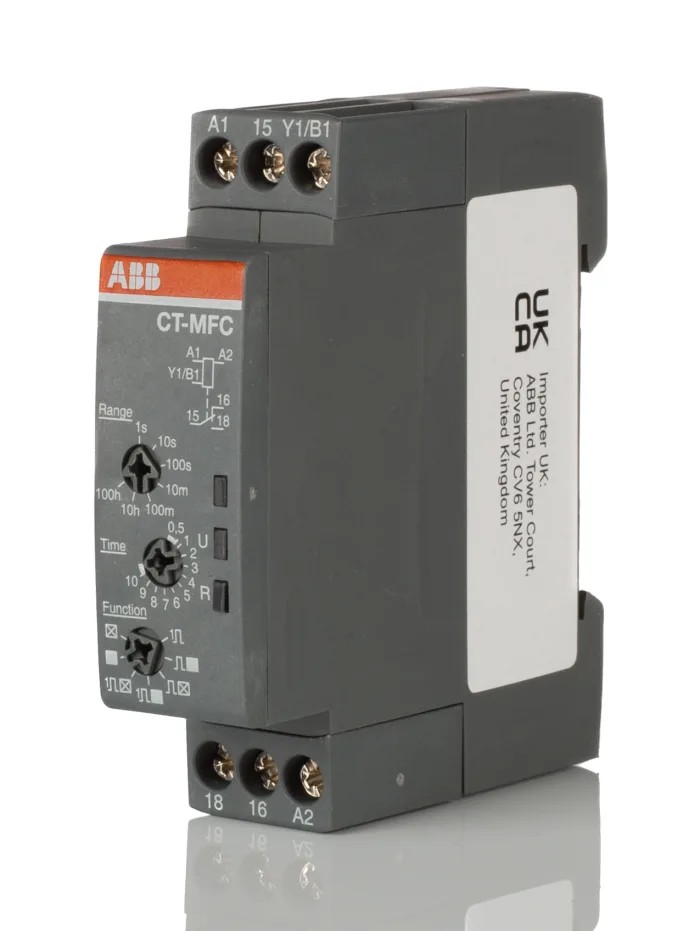

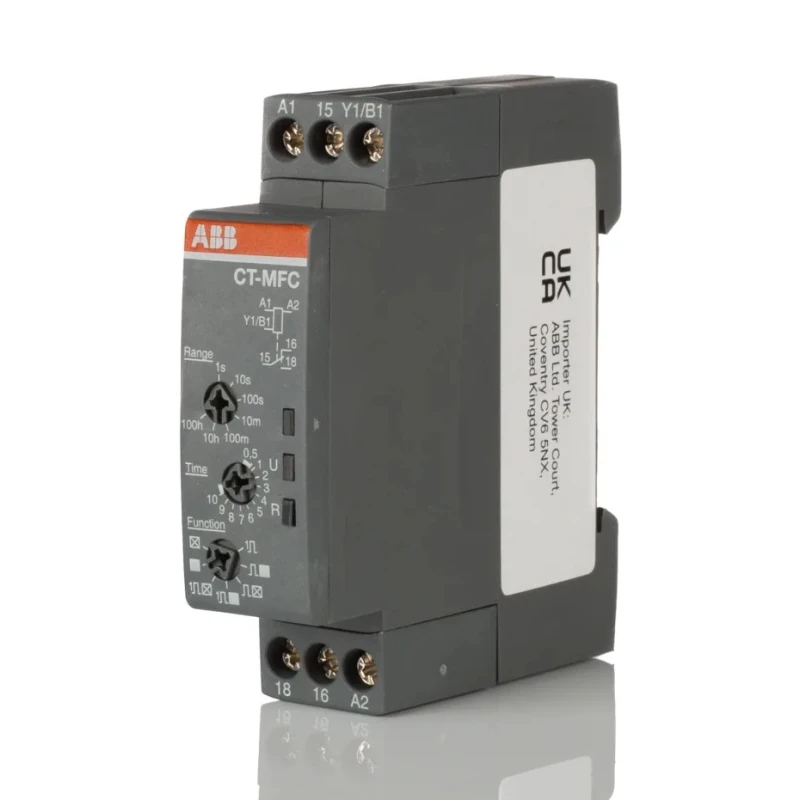

ABB CT-C Series DIN Rail Snap-On Timer Relay 1-Contact 24 to 240 V AC/DC, 0.05 s to 100 h 1SVR508020R0000 CT-MFC.12

ABB 1SVR508020R0000 CT-MFC.12 is a multifunction DIN rail snap-on timer relay designed for precise control of time delay functions in electrical and automation systems. This timer relay incorporates a single SPDT contact that operates reliably over a broad supply voltage range from 24 to 240 V AC/DC, making it suitable for a wide variety of industrial and commercial control circuits.

The device offers six different timer functions, combining the roles of multiple standalone timer units into one compact assembly. With an adjustable time range from 0.05 seconds up to 100 hours, users can tailor delay times for pump control, drive motors, alarm systems, and lighting applications.

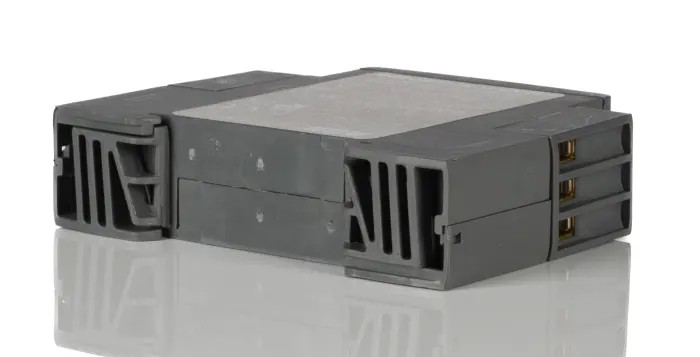

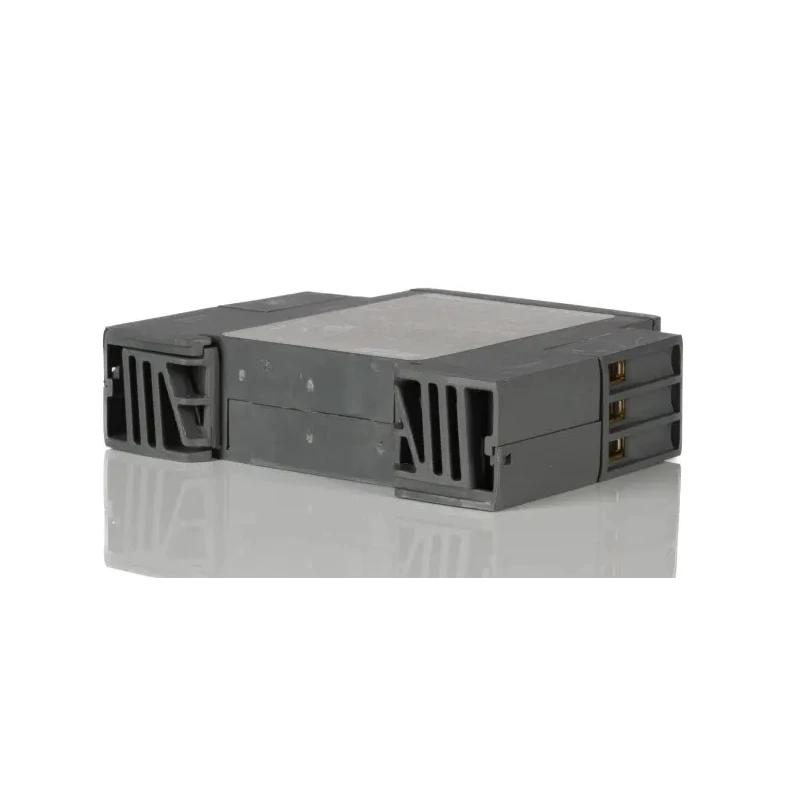

Its compact dimensions (63 mm x 63 mm x 17.5 mm) facilitate installation where panel space is limited. The relay is mounted on a DIN rail with a snap-on mechanism allowing quick assembly and replacement without the need for additional hardware. Screw terminal connectors provide secure, maintenance-friendly wiring.

Built to withstand challenging environments, the timer relay supports operating temperatures from -20°C to 60°C and features IP20 and IP50 ratings, ensuring adequate protection against dust ingress. Standards compliance includes EN 50581, CAN/CSA C22.2 No.14, IEC/EN 61812-1, and UL 508, certifying quality and safety for industrial use.

The relay’s SPDT contact configuration supports a contact current rating of 4 A with switching voltage up to 250 V, ensuring dependable switching performance in control circuits.

This ABB CT-C series timer relay is ideal for industrial automation professionals requiring flexible and reliable time delay functions in pumps, motors, light control, and alarm systems. Its versatile supply voltage accommodation and multiple timing functions reduce the need for additional components, streamlining control panel design.

Explore more electrical control solutions in the timer relays category at EnvMart to find your precise fit for industrial automation and electrical applications. This timer relay features a compact DIN rail snap-on mounting type for easy panel installation.

It provides six different timer functions for versatile time delay applications. Supports supply voltages from 24 to 240 V DC and 24 V or 240 V AC for broad compatibility. Designed with an SPDT contact configuration and a switching voltage of 250 V for reliable circuit switching.

Operates efficiently within a temperature range of -20°C to 60°C for harsh environments. Offers IP20 and IP50 ingress protection ratings for dust resistance in industrial settings. Equipped with screw terminal connections to ensure secure wiring.

Dimensions of 63 mm height, 63 mm length, and 17.5 mm width enable space-saving electrical panel designs. Discover the complete range of ABB Timer Relays and enhance your electrical systems with proven reliability and precision control at EnvMart.
