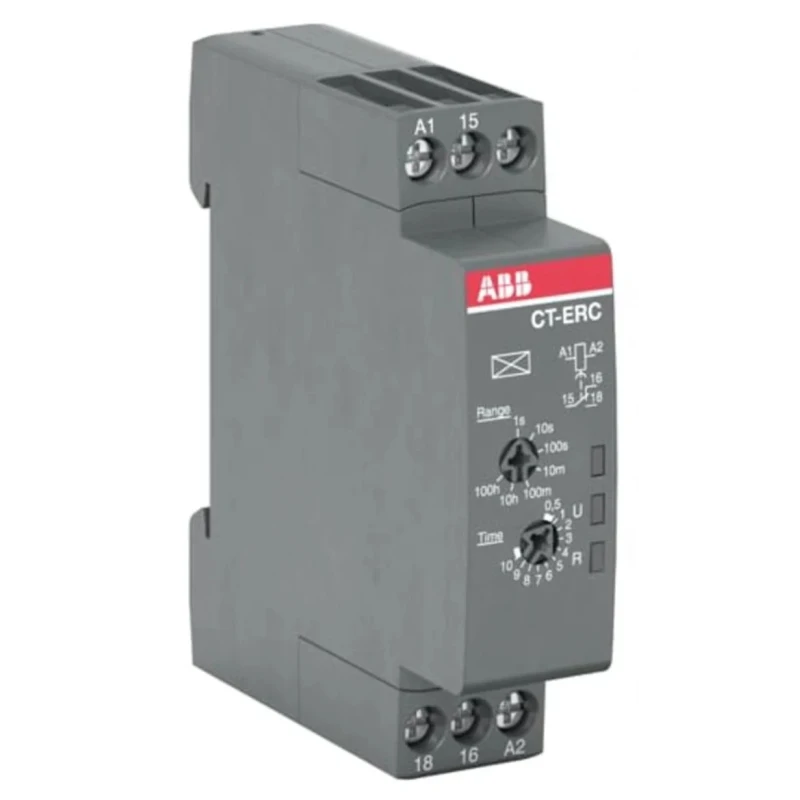

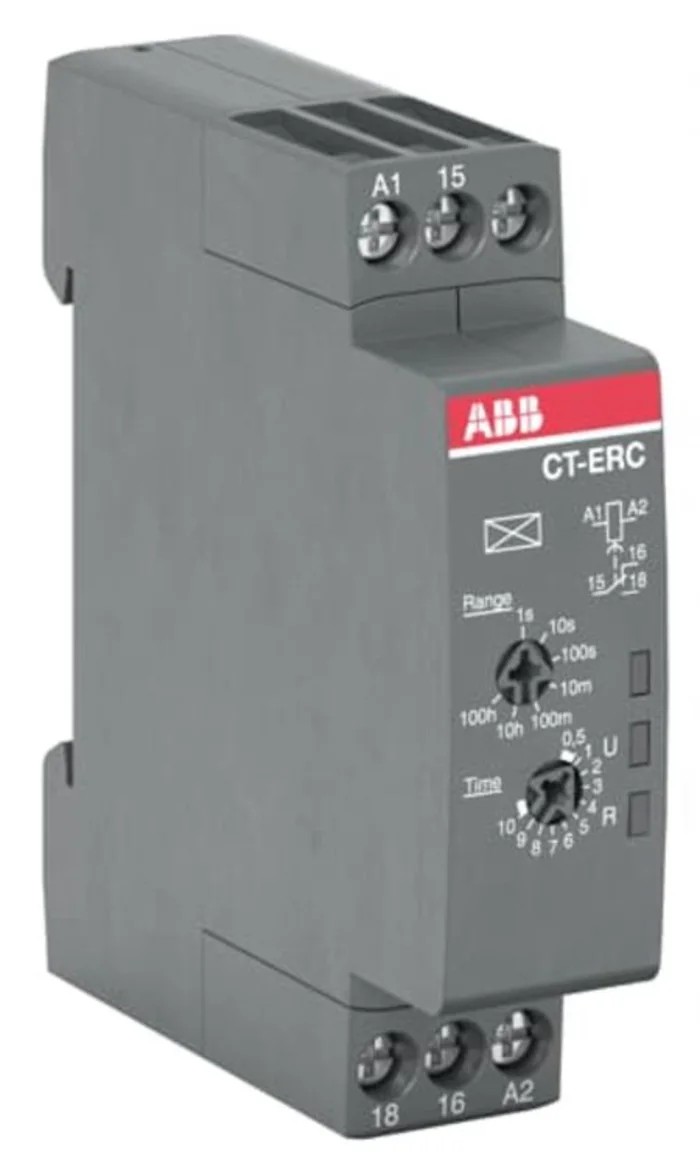

ABB CT-C Series DIN Rail Snap-On Timer Relay 1-Contact 24 to 48 V dc 24V ac 240 V ac 0.05 s to 100 h ON 1SVR508100R0000

Free Delivery in India | Lowest Global Shipping Charges

ABB CT-C Series DIN Rail Snap-On Timer Relay 1-Contact 24 to 48 V dc 24V ac 240 V ac 0.05 s to 100 h ON 1SVR508100R0000



Category Timer Relay Brand ABB Condition New

Specifications

Country of Origin	Bulgaria
Brand	ABB
Height	63mm
Function	Offset Double Ring End
Length	63mm
Model	1SVR508100R0000
IP Rating	IP20
Mode	ON Delay
Width	17.5mm
Mount Type	DIN Rail, Snap-On
Series	CT-C
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	-20°C
Time Range	0.05 s to 100 h
Terminal type	Screw
Number of Contacts	1
Number of Timer Functions	1
Switching Voltage	300V
Contact Current	4A
Supply DC Voltage	24 to 48 V dc
Supply AC Voltage	24, 240V ac

Key Features

Compact DIN rail mounting with snap-on installation for easy fitting.
Single contact SPDT configuration rated for 4 A contact current.
Programmable time delay range from 0.05 seconds up to 100 hours.
Wide operating temperature range from -20°C to 60°C ensures reliable performance.
IP20 rated terminals provide protection against dust and contact.
Screw terminal type allows secure and reliable wiring connections.
Complies with IEC 61812-1, EN 50581, CAN/CSA C22.2 No.14, and UL 508 standards.
Suitable for industrial automation applications including blower motors and compressor control.

Product Description

ABB 1SVR508100R0000 CT-C Series DIN Rail Snap-On Timer Relay is built for precise ON-delay timing functions in industrial electrical control systems. This timer relay operates with 24 to 48 V DC or 24V/240 V AC supply voltage and offers a highly flexible time delay range from 0.05 seconds to 100 hours, making it versatile for multiple automation needs.

The device is designed for straightforward installation on standard DIN rails with a compact form factor measuring 63 mm in length and height, and 17.5 mm in width. Its SPDT single-contact configuration supports switching voltages up to 300 V and a contact current of 4 A, meeting demanding electrical requirements.

With an operating temperature range from -20°C to 60°C and IP20 rated terminals, this relay ensures durable reliability even in harsh industrial environments. Screw terminals provide safe and robust wiring connections.

Certified to meet IEC 61812-1, EN 50581, CAN/CSA C22.2 No.14, and UL 508 standards, this timer relay is ideal for industrial process controls such as blower motors, compressors, irrigation systems, and other applications requiring scheduled electrical activation.

ON-delay timer relays function by delaying the output activation for a preset time after receiving an input signal, enhancing control over machine startup and preventing unexpected operations.

Compact DIN rail, snap-on mounting simplifies installation. Adjustable time delay from 0.05 seconds to 100 hours. Single SPDT contact rated at 4 A supports robust switching. Screw terminal type for secure wiring connections.

Wide temperature operating range from -20°C to 60°C assures durability. IP20 protection rating safeguards terminals from dust and touch. Certified to major international standards for safety and reliability. Dimensions optimized for limited panel space installations.

Suited for automation applications including compressors and blower motors. Ensures safe delayed activation to protect machinery and circuits. Explore the ABB Timer Relay range at EnvMart for trusted automation solutions and reliable industrial electrical components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The timer relay offers a programmable time delay range from 0.05 seconds to 100 hours, allowing for versatile timing applications in automation.

It operates with a supply voltage of 24 to 48 V DC or 24V/240 V AC, making it compatible with various electrical systems.

This model features a single contact SPDT (Single Pole Double Throw) configuration, rated for a contact current of 4 A.

The relay supports switching voltages up to 300 V, allowing it to handle a variety of electrical loads.

It has an operating temperature range from -20°C to 60°C, ensuring reliable performance in diverse industrial environments.

The timer relay is designed for DIN rail mounting with a snap-on installation, facilitating easy fitting and secure placement.

It features screw terminals, which provide secure and reliable wiring connections for installation.

It complies with IEC 61812-1, EN 50581, CAN/CSA C22.2 No.14, and UL 508 standards, ensuring it meets international safety and reliability requirements.

The dimensions of this model are 63 mm in length and height, and 17.5 mm in width, making it compact for limited panel space installations.

It is suitable for various industrial automation applications, including blower motors, compressor control, and irrigation systems, requiring scheduled electrical activation.

This timer relay has one timer function, providing a straightforward solution for ON-delay timing needs in control systems.

The timer relay is manufactured in Bulgaria, reflecting its production origin.
