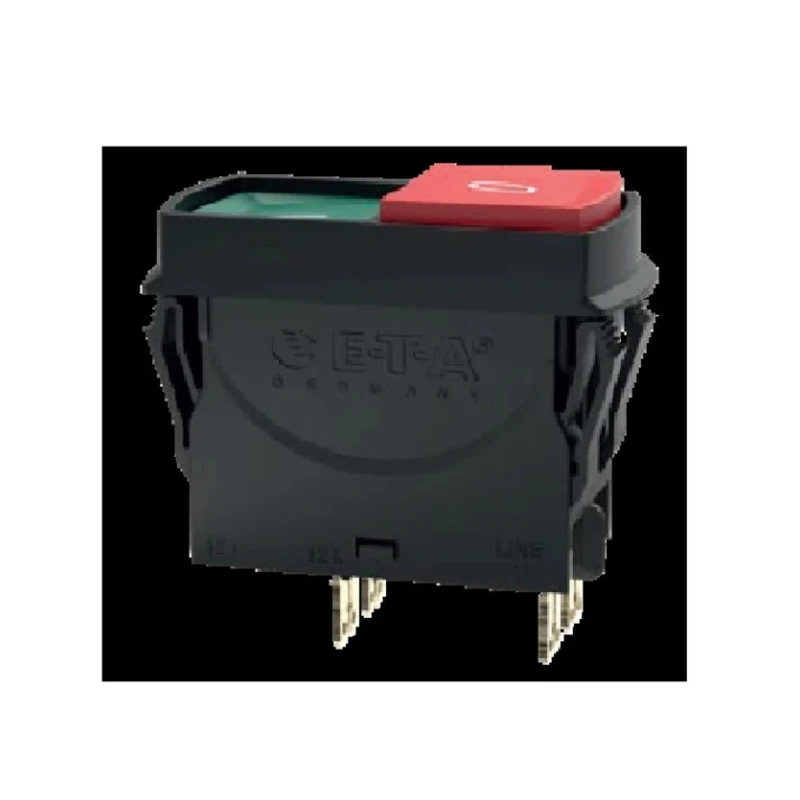

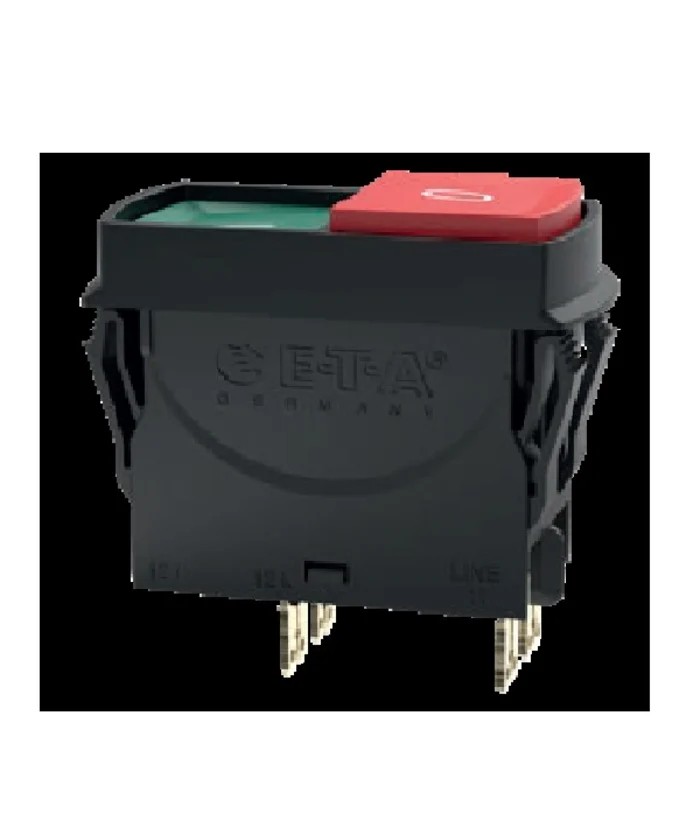

ETA 3120-N 2-Pole Thermal Circuit Breaker 2.5A Current Rating, Push Button Reset, Screw Mount 3120-N32F-H7T1-SGRD-2.5A
Specifications
| Country of Origin | Tunisia |
|---|---|
| Range | 3120-N |
| Brand | ETA |
| Height | 56.4mm |
| Model | 3120-N32F-H7T1-SGRD-2.5A |
| Depth | 42.6mm |
| Mounting Type | Snap-in, cut-out 50.5 x 21.5mm |
| Width | 26.4mm |
| Mount Type | Screw |
| Current Rating | 2.5A |
| Series | 3120-N |
| Terminal type | Screw |
| Breaking Capacity | 2.5A |
| Number of Poles | 2 |
| Standards/Approvals | RoHS, EAC, CSA, VDE, IEC, REACH, CCC |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Push Button |
Key Features
- Features a thermal bimetal trip element for effective overcurrent protection.
- Equipped with a positive trip-free mechanism ensuring disconnection even if the actuator is blocked.
- Mounting type is snap-in with a cut-out dimension of 50.5 x 21.5 mm.
- Screw mounting and screw terminal ensure secure installation and connection.
- Designed for rated AC voltage up to 240V and DC voltage up to 50V.
- Standard-compliant with RoHS, EAC, CSA, VDE, IEC, REACH, and CCC certifications.
- Ideal for overload protection of motors, pumps, transformers, and cables in industrial and electrical applications.
- Reset actuator type is a push button for easy manual reset after tripping.
Product Description
ETA 3120-N32F-H7T1-SGRD-2.5A thermal circuit breaker is a high-quality 2-pole electrical protection device with a current rating of 2.5 Amps, ideal for diverse electrical installations requiring efficient overcurrent protection and on/off switching functionality. It incorporates a thermal bimetal trip element to detect overload conditions and disconnect the circuit reliably.
The product features screw mounting and screw terminal types ensuring firm installation and electrical connections. It supports a rated AC voltage of 240V and a DC voltage of 50V, making it versatile for AC and DC circuits. This breaker comes with a push button reset actuator, allowing quick and easy resetting after a trip event.
The breaker dimensions are compact, measuring 26.4mm in width, 56.4mm in height, and 42.6mm in depth. It mounts via a snap-in mechanism with a cut-out size of 50.5 x 21.5 mm, facilitating effortless panel installation.
With certifications including RoHS, EAC, CSA, VDE, IEC, REACH, and CCC, it complies with international safety and environmental standards. The positive trip-free mechanism guarantees circuit disconnection even when the actuator is blocked, enhancing operational safety.
This circuit breaker is primarily designed for overload protection of motors, pumps, transformers, and cables, widely used in industrial, automation, electrical panel, HVAC, and manufacturing sectors. It enhances system reliability while reducing installation and maintenance efforts due to its space-saving design and simple reset function.
Thermal bimetal trip element for overcurrent protection. Positive trip-free mechanism prevents unsafe operation. Snap-in mounting with cut-out 50.5 x 21.5 mm. Screw mounting and terminals for secure installation. Rated for 240V AC and 50V DC operation.
Push button actuator for quick resetting. Compact dimensions and space-saving design. Certified RoHS, EAC, CSA, VDE, IEC, REACH, and CCC compliant. Manufactured in Tunisia with high-quality standards. Explore the ETA range of Thermal Circuit Breakers at EnvMart for reliable circuit protection solutions tailored to industrial and commercial electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this thermal circuit breaker is 2.5 Amps.
It measures 26.4mm in width, 56.4mm in height, and 42.6mm in depth.
It is rated for an AC voltage of up to 240V and a DC voltage of up to 50V.
It features a push button reset actuator, allowing for easy manual resetting after a trip event.
This model uses a snap-in mounting type with a cut-out dimension of 50.5 x 21.5 mm, along with screw mounting for secure installation.
It is certified compliant with RoHS, EAC, CSA, VDE, IEC, REACH, and CCC standards.
It incorporates a thermal bimetal trip element for effective overcurrent protection.
It is designed for overload protection of motors, pumps, transformers, and cables, making it suitable for industrial and electrical applications.
The breaking capacity of the ETA 3120-N is rated at 2.5A.
It features screw terminals, ensuring secure electrical connections.
It is manufactured in Tunisia.
This model belongs to the 3120-N series.
