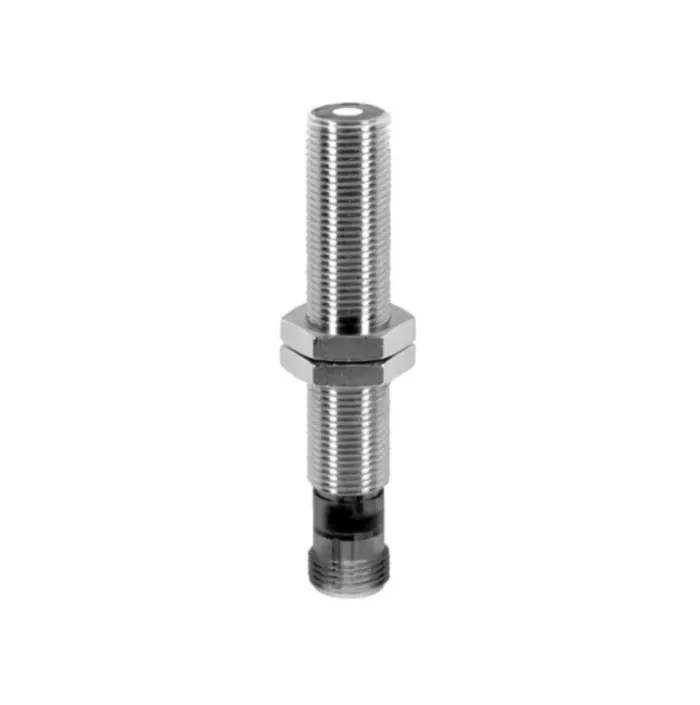

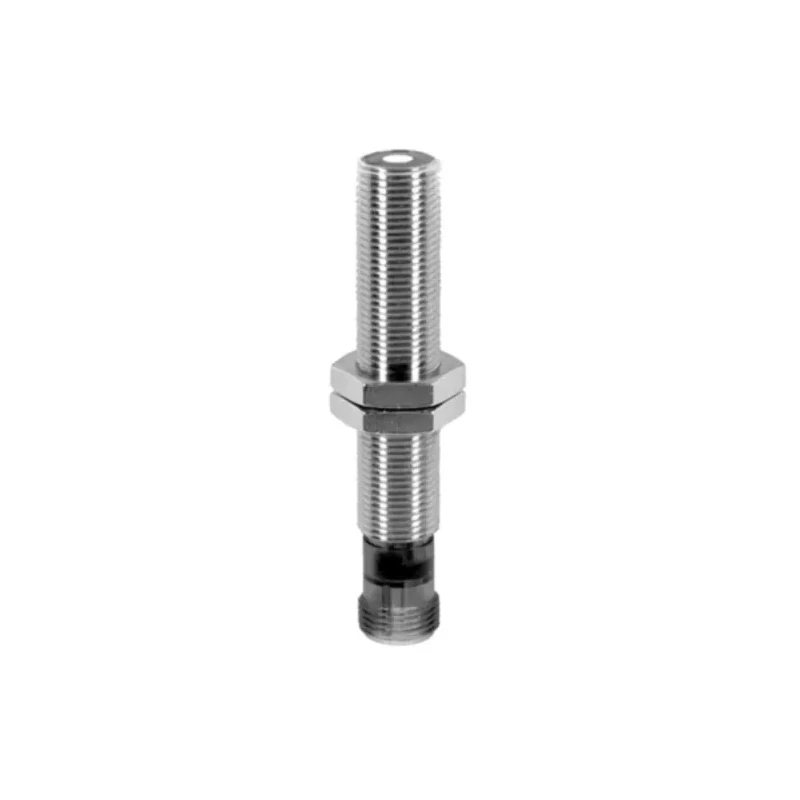

Baumer Threaded Barrel Ultrasonic Proximity Sensor M12, 200 mm Detection Range, 20mA Switching Current UNAM 12U9914/S14
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Response time | 30ms |
| Length | 70mm |
| Model | UNAM 12U9914/S14 |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Screw |
| Housing Material | Nickel Plated Brass |
| Output type | 0/10 V |
| Series | UNAM 12U9914/S14 |
| Maximum Operating Temperature | 60°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -10°C |
| Switching Current | 20mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 200mm |
Key Features
- Threaded barrel body with M12 thread size for easy screw mounting.
- Operates within a temperature range of -10°C to 60°C for industrial applications.
- Equipped with a 4-pin connector and protected against short circuit and reverse polarity.
- Provides analog 0/10 V output with switching current of 20mA.
- Constructed with nickel plated brass housing for durability and IP67 protection.
- Maximum supply voltage is 30 V DC ensuring wide compatibility.
- Fast response time of 30 ms suitable for automation control systems.
Product Description
Baumer UNAM 12U9914/S14 is a high-precision ultrasonic proximity sensor designed for industrial and automation applications. With a threaded barrel cylindrical shape and M12 screw mount, it provides robust installation and reliable operation within a detection range of 20 to 200 mm.
The sensor's nickel plated brass housing gives excellent mechanical strength and resistance to harsh environments, rated IP67 for protection against dust and water ingress. It operates effectively between -10°C and 60°C, making it suitable for a wide range of industrial settings.
The device includes a 4-pin M12 connector, supporting a switching current of 20mA and analog output voltage 0 to 10 V, powered by a maximum supply voltage of 30 V DC. Its fast response time of 30 milliseconds allows for timely detection and control in automated systems.
Protection features integrated into the sensor include short circuit and reverse polarity safeguards. This functionality ensures reliability and long service life across applications such as factory automation, material handling, and robotics.
Threaded barrel with M12 size for secure mounting. Detection range up to 200 mm with ultrasonic accuracy. Robust nickel plated brass housing with IP67 rating. Operating temperature from -10°C to 60°C for varied environments.
4-pin connector with 20mA switching current and short circuit protection. Analog 0/10 V output voltage compatible with control systems. Short response time of 30 ms for efficient automation feedback.
Manufactured in Switzerland, this Baumer sensor is ideal for advanced automation and control gear systems. Explore more Ultrasonic Proximity Sensors and sensor products at EnvMart to meet your industrial sensor requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a detection range of 20 to 200 mm, making it suitable for various industrial applications.
It provides an analog output voltage of 0 to 10 V, which is compatible with control systems.
The maximum switching current for this sensor is 20mA.
The sensor has a length of 70 mm and a width of 12 mm, designed for easy installation.
It operates effectively within a temperature range of -10°C to 60°C, suitable for various environments.
This unit features a threaded barrel design with an M12 thread size for secure screw mounting.
It is constructed with nickel plated brass housing, providing mechanical strength and resistance to harsh environments.
It includes protection against short circuits and reverse polarity, enhancing its reliability in operation.
The response time is 30 milliseconds, allowing for timely detection and control in automated systems.
The maximum supply voltage is 30 V DC, ensuring compatibility with various systems.
This model is CE certified, indicating compliance with European safety standards.
It is manufactured in Switzerland, known for its precision engineering.
