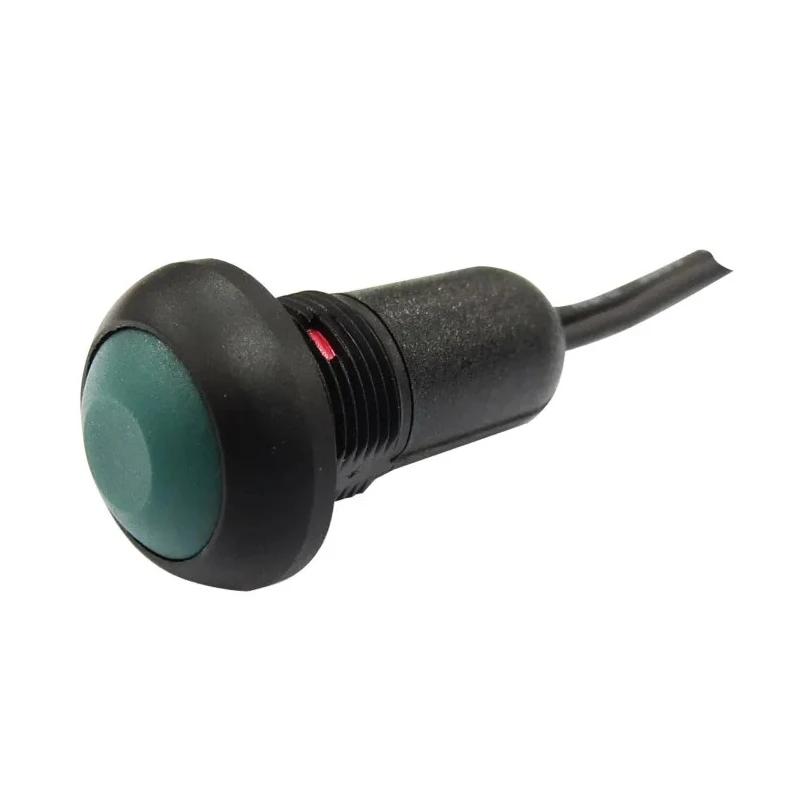

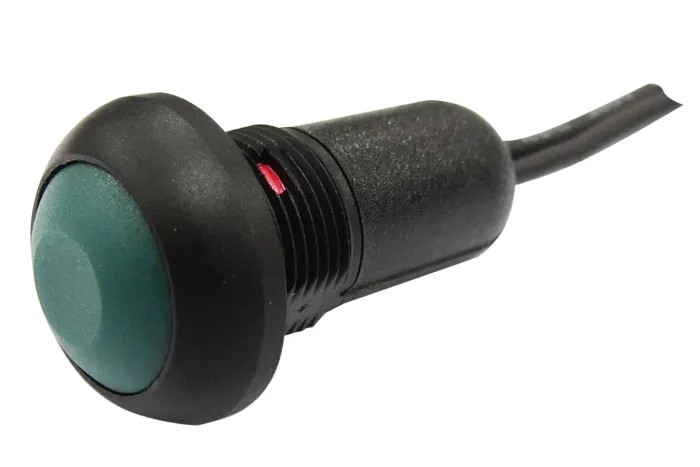

RS PRO Push Button Switch Momentary Panel Mount SPST Yellow LED IP67 36V DC 50V AC 209-9064
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 209-9064 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RS |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Yellow |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 125mA |
| Contact AC Voltage | 50V ac |
Key Features
- The switch operates with a momentary action in a SPST configuration.
- Panel mount design with a 13.6 mm cutout for easy installation.
- Yellow LED illumination enhances visibility and status indication.
- Waterproof and dustproof with an IP67 ingress protection rating.
- Suitable for operating voltages of 36 V DC and 50 V AC.
- Wide operating temperature range from -35°C to 85°C ensures performance in harsh environments.
- Construction includes polyamide 6/6 material and gold over silver contacts for reliable electrical performance.
- Contact current rating up to 125 mA with mechanical life of one million cycles.
Product Description
RS PRO 209-9064 Push Button Switch is a sub-miniature, momentary action switch configured as single-pole single-throw (SPST) designed for panel mounting with a precise 13.6 mm cutout. It features a yellow LED for clear indication and is rated IP67, providing robust protection against dust and water ingress, making it suitable for demanding industrial and commercial environments.
The switch's polyamide 6/6 actuator and gold over silver contacts ensure reliable electrical connectivity, supporting a contact current of 125 mA and voltages up to 36 V DC and 50 V AC. Its operating temperature range from -35°C to 85°C accommodates use in diverse climatic conditions. The threaded M12 x 0.75 bushing enables secure and durable mounting.
This momentary push-button switch boasts a mechanical lifespan of 1,000,000 cycles, combining longevity and consistent operation. It is ideal for applications including test equipment, telecommunications systems, networking devices, and various handheld appliances where precise on-off control is essential.
The switch operates with a momentary action in a SPST configuration. Panel mount design with a 13.6 mm cutout for easy installation. Yellow LED illumination enhances visibility and status indication. Waterproof and dustproof with an IP67 ingress protection rating.
Suitable for operating voltages of 36 V DC and 50 V AC. Wide operating temperature range from -35°C to 85°C ensures performance in harsh environments. Construction includes polyamide 6/6 material and gold over silver contacts for reliable electrical performance.
Contact current rating up to 125 mA with mechanical life of one million cycles. Threaded bushing with M12 x 0.75 thread for secure mount. Ideal for use in test equipment, telecommunications, networking, and handheld appliances.
RS PRO products undergo rigorous testing and compliance to industry standards such as UL and RoHS, ensuring quality and reliability. This Push Button Switch series is a trusted choice for engineers seeking durable and high-performance components.
Explore the RS PRO category for a wide range of electrical switches and components tailored to industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This switch has a contact current rating of up to 125 mA.
It has an IP67 ingress protection rating, making it waterproof and dustproof.
The required panel cutout size for installation is 13.6 mm.
It is suitable for operating voltages of 36 V DC and 50 V AC.
The minimum operating temperature for this switch is -35°C.
This switch operates with a momentary action in a single-pole single-throw (SPST) configuration.
It features a polyamide 6/6 actuator and gold over silver contacts for reliable electrical performance.
This model has a mechanical life of up to one million cycles.
The switch utilizes solder type terminals.
The LED illumination is yellow, enhancing visibility and status indication.
It is ideal for use in test equipment, telecommunications systems, networking devices, and handheld appliances.
