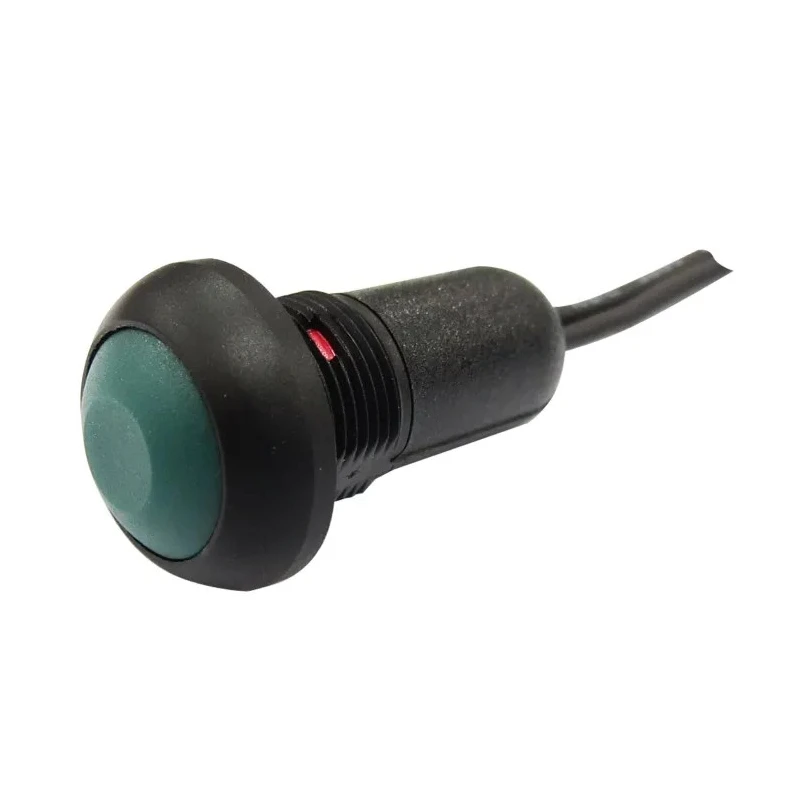

RS PRO Push Button Switch Momentary Panel Mount SPST 13.6 mm Cutout Red LED IP67 36 V dc 50 V ac 209-9051

RS PRO 209-9051 is a sub-miniature momentary push button switch designed for panel mounting with a 13.6 mm cutout. Featuring a single-pole single-throw (SPST) contact configuration and red LED illumination, it offers a reliable switching solution rated IP67 for dust and waterproofing.

The flat white actuator provides ergonomic user interaction, coupled with a robust polyamide 6/6 material body and epoxy sealing to withstand demanding industrial and commercial environments. This switch supports electrical ratings of 36 V dc and 50 V ac with a contact current rating of 125mA, making it ideal for low voltage control circuits.

Engineered for durability, it endures up to one million mechanical cycles, with an operating temperature range from -30°C to 85°C, suitable for harsh ambient conditions. Threaded mounting with M12 x 0.75 thread size ensures secure fitment in electrical panels or control enclosures.

Gold over silver contacts ensure excellent electrical conductivity and resistance to corrosion, enhancing performance longevity. The contact bounce time of 10 milliseconds contributes to cleaner switching signals, reducing electrical noise in sensitive electronic applications.

Typical industrial and commercial uses include test and measurement equipment, telecommunications network hardware, handheld appliance controls, and other automation applications requiring a sealed, reliable push button switch.

The switch features a flat white actuator for easy operation. Designed for reliable performance with a contact current rating of 125mA. Operating voltage supports 36 V dc and 50 V ac applications. Rated for extreme environments with operating temperatures from -30°C to 85°C and sealed to IP67.

Constructed with durable polyamide 6/6 housing and epoxy seal for enhanced robustness. Threaded panel mount with M12 x 0.75 thread size for secure installation. Mechanical life expectancy up to 1,000,000 cycles ensures long-term reliability.

Gold over silver contacts minimize corrosion and improve conductivity. Contact bounce of 10 ms enhances electrical performance during switching. Suitable for applications including test equipment, telecommunications, networking, and handheld appliances.
