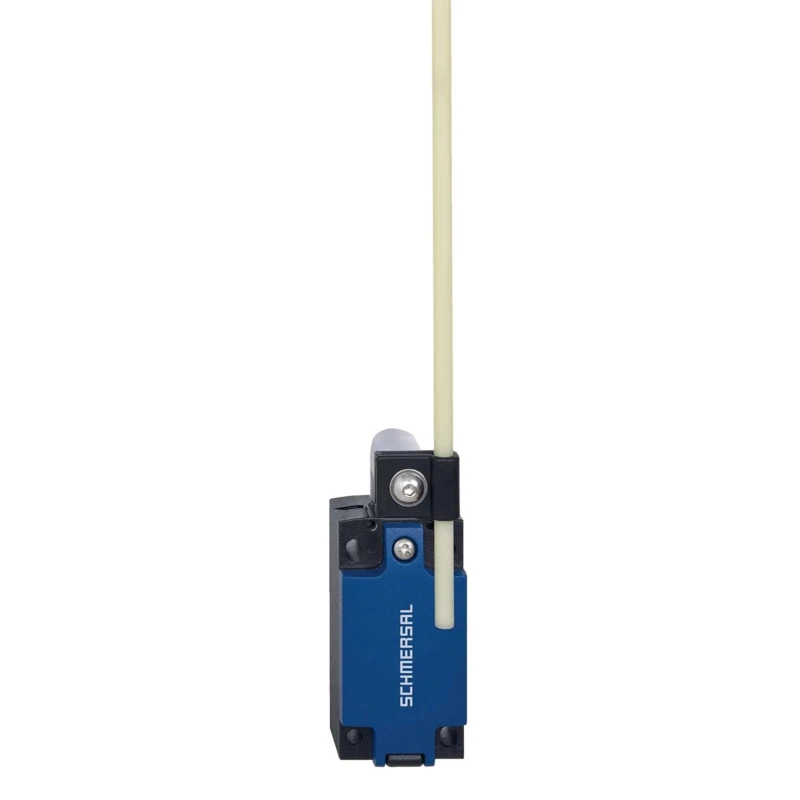

Schmersal PS315-T12-J300 Series Rod Lever J300 Limit Switch, 1 NO/2 NC, IP67, IP66, Metal Die Cast Zinc Housing 103015128

Schmersal 103015128 Rod Lever J300 Limit Switch provides robust and precise limit switching solutions ideal for industrial automation and electrical control systems. The switch features a rod lever actuator of type J300, housed in durable metal die cast zinc body ensuring mechanical strength and corrosion resistance. It is rated IP67 and IP66, offering exceptional protection against dust and water, suitable for harsh industrial environments.

This limit switch supports a contact configuration of 1 Normally Open (NO) and 2 Normally Closed (NC) contacts, with switching current rated at 3A suitable for control circuit applications. Electrical connections are secured via screw terminals, enhancing installation reliability. The silver contacts improve conductivity and longevity for frequent switching operations.

Operating voltage capabilities include 24V DC and 240V AC, supporting a wide range of control voltage systems. It operates efficiently across a temperature range from -30°C to 80°C, making it adaptable for varied industrial conditions. The mechanical life is guaranteed for at least 10 million operations ensuring long-term durability and reduced maintenance demands.

With a mechanical operating force of 50N, the switch performs reliably under industrial mechanical loads. It complies with internationally recognized safety and performance standards ISO 13849-1 and IEC 60947-5-1. Furthermore, it holds certifications including EAC, cULus, and CCC, confirming suitability in hazardous area applications.

The compact size with a length of 37mm and width of 41mm allows for integration in tight installation spaces. The conduit entry size is 1 x M20 x 1.5 ensuring compatibility with standard cable management systems. The Schmersal PS315-T12-J300 limit switch is ideal for use in automated manufacturing, industrial machinery, process control, and other commercial electrical switch applications.

The package represents new condition product made in Germany, embodying high build quality. This model 103015128 from Schmersal is a dependable component designed to improve machine safety, automate control circuits, and withstand industrial environmental demands.

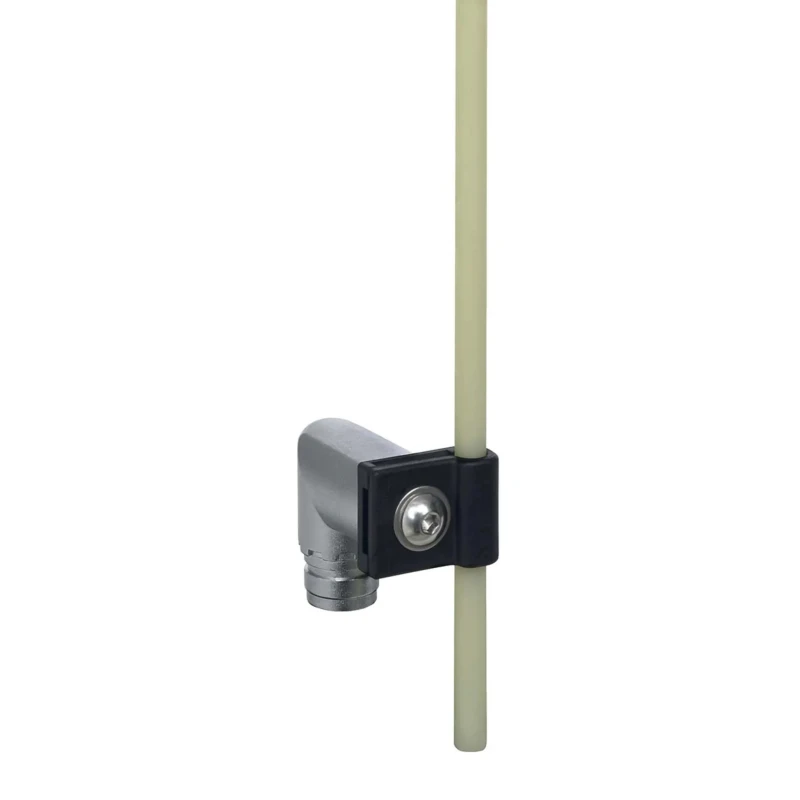

The actuator is a Rod Lever type J300 providing reliable switching performance. Housing is constructed of metal die cast zinc for durability and corrosion resistance. The switch supports a switching current of 3A and is rated for 24V DC and 240V AC operation.

It features silver contacts and a screw terminal connection for secure wiring. Protection ratings IP67 and IP66 ensure resistance against dust and water ingress. The switch operates reliably from -30°C up to 80°C ambient temperature.

Mechanical life expectancy is a minimum of 10 million operations. Operating force required is 50N, suitable for industrial applications. Complies with ISO 13849-1 and IEC 60947-5-1 standards for safety and performance. Certified with EAC, cULus, and CCC hazardous area approvals.
