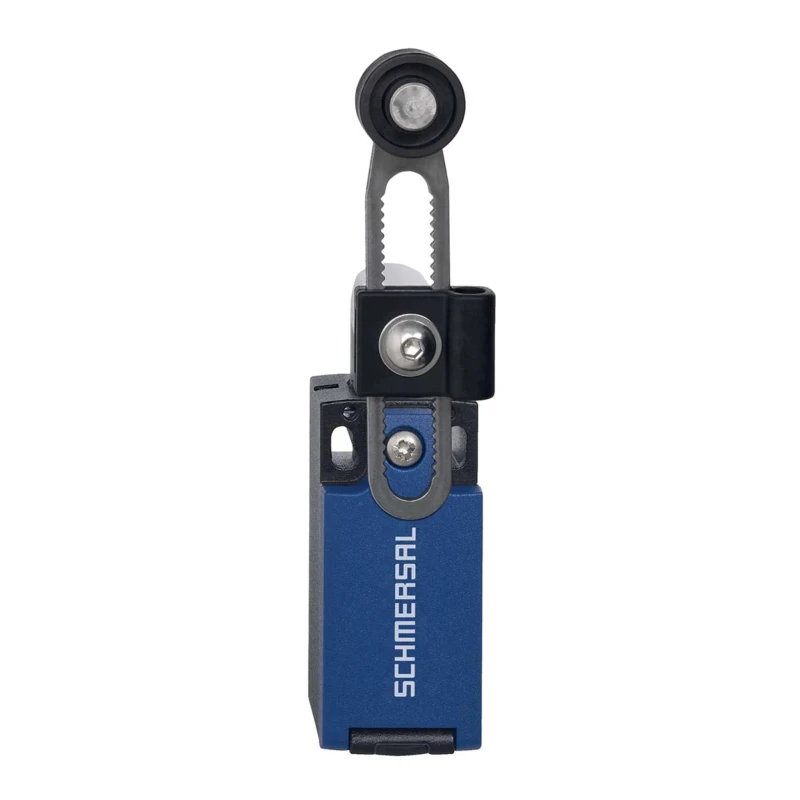

Schmersal Roller Lever Limit Switch with 1 NO/2 NC Contacts, IP67/IP66 Protection, Metal Die Cast Zinc Housing 103014973

Free Delivery in India | Lowest Global Shipping Charges

Schmersal Roller Lever Limit Switch with 1 NO/2 NC Contacts, IP67/IP66 Protection, Metal Die Cast Zinc Housing 103014973

Name: Schmersal Roller Lever Limit Switch with 1 NO/2 NC Contacts, IP67/IP66 Protection, Metal Die Cast Zinc Housing 103014973
Brand: SCHMERSAL
SKU: 282501
Price: 158.28 USD
Availability: InStock



Category Limit Switches Brand SCHMERSAL Condition New

Specifications

Country of Origin	Germany
Brand	Schmersal
Length	32.5mm
IP Rating	IP67, IP66
Width	31mm
Housing Material	Metal, Die Cast Zinc
Protection Class	IP66, IP67
Standards	ISO 13849-1
Series	PS215-Z12-N200
Maximum Operating Temperature	80°C
Contact Configuration	1 NO/2 NC
Actuator Type	Roller Lever
Contact Type	Silver
Minimum Operating Temperature	-30°C
Switching Current	3A
Terminal type	Screw
Operating Force	40N
Mechanical Life	10000000Operations
Switching DC Voltage	24V dc
Switching AC Voltage	240V ac
Conduit Entry	1 x M20 x 1.5
Mechanical life, minimum	10,000,000 Operations
B10d Normally-closed contact (NC)	20,000,000 Operations

Key Features

Operates at 240V AC with a switching current of 3A.
Features IP67 and IP66 ingress protection suitable for harsh environments.

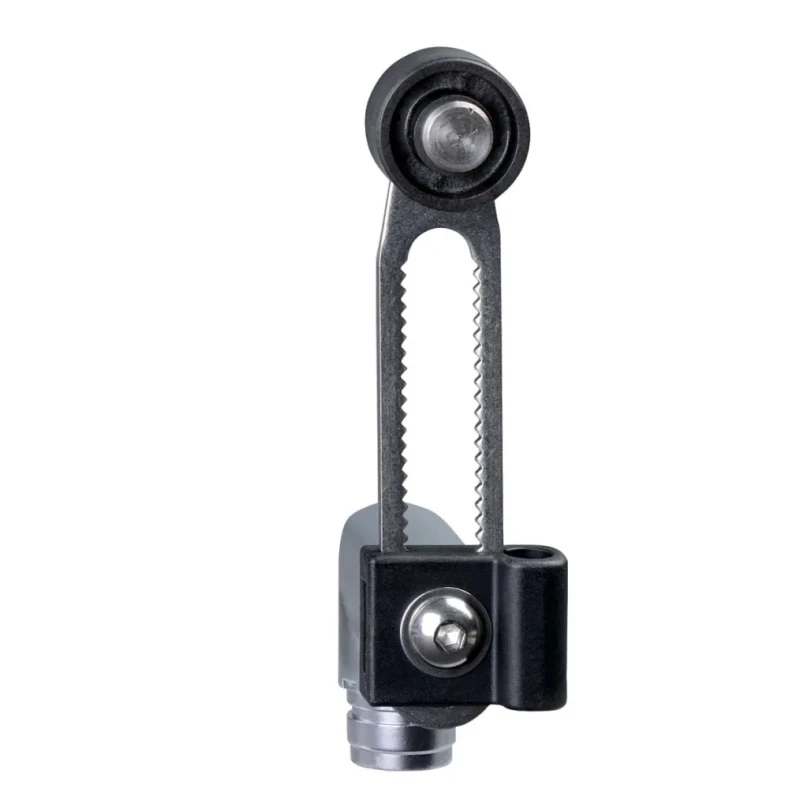

Equipped with a roller lever actuator made of metal with die cast zinc housing.
Silver contact type ensures high conductivity and durability.
Designed for long mechanical life with a minimum of 10,000,000 operations.
Operating temperature range from -30°C to 80°C.
Includes a screw terminal type for secure electrical connection.
Compact dimensions with 32.5 mm length and 31 mm width for versatile installation.

Product Description

Schmersal 103014973 Roller Lever Limit Switch is a durable industrial switching device designed for automation and machinery control applications. It features a sturdy roller lever actuator with metal die cast zinc housing that ensures long service life and robust performance even in harsh environments.

Operating at 240V AC with a switching current of 3A, this limit switch supports 1 Normally Open (NO) and 2 Normally Closed (NC) contacts based on a snap switch switching principle. The silver contacts provide excellent electrical conductivity and reliability for frequent switching operations.

With ingress protection ratings of IP67 and IP66, the switch is suitable for use in dusty and waterproof environments. It withstands operating temperatures from -30°C up to 80°C, making it versatile for various industrial climates.

The switch incorporates a screw terminal connector for secure wiring and a conduit entry of 1 x M20 x 1.5 to facilitate easy installation. Its compact size, measuring 32.5 mm in length and 31 mm in width, allows integration in space-constrained control panels or machines.

The mechanical life rating exceeds 10 million operations, demonstrating its reliability for extended industrial usage. Standards compliance includes ISO 13849-1 and IEC 60947-5-1, emphasizing safety and performance quality.

Operates with 1 NO and 2 NC contacts for flexible control configurations. Protection class IP66 and IP67 for dust and water resistance. Metal die cast zinc housing combined with silver contacts for durability. Snap switch element with a thermal test current of 5A and switching frequency of 5,000 times per hour.

Mechanical life minimum of 10,000,000 operations ensures long-term reliability. Operating force rated at 40N for precise actuation.

This limit switch is ideal for use in industrial automation, factory machinery, electrical engineering equipment, and control systems requiring precise position detection and control. It is made in Germany to high manufacturing standards, providing confidence in quality and performance.
