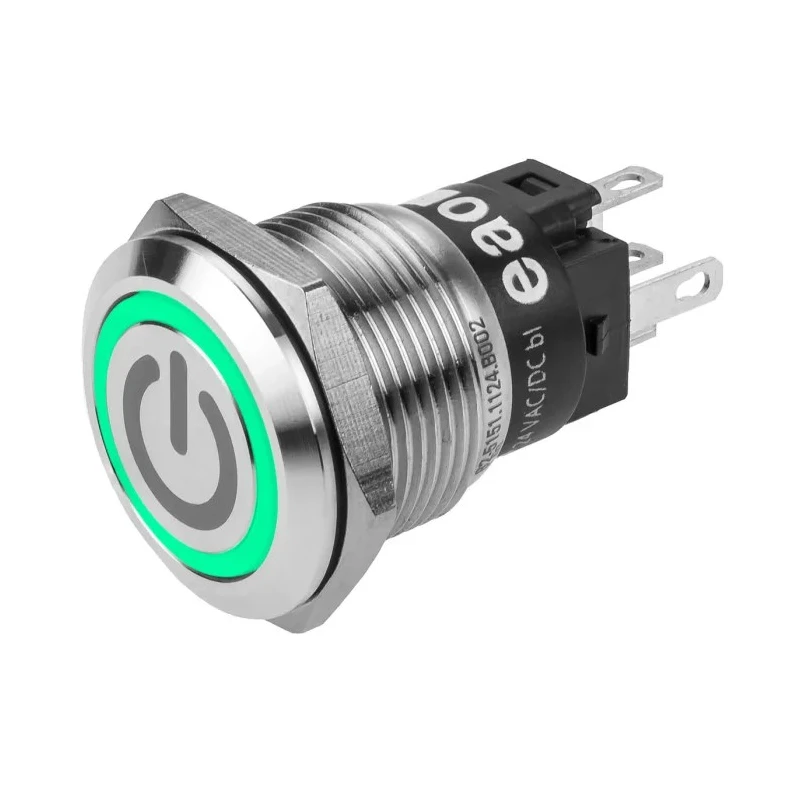

EAO 82 Series Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, SPDT, Green LED, IP65 82-5151.2134.B002



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	35.5mm
Model	82-5151.2134.B002
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Green
Switch Operation	Latching
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	Standby Symbol
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

The switch provides excellent tactile feedback with a long service life exceeding 1 million cycles.
It is vandal-resistant with impact-resistant properties suitable for exposed public areas.
The device supports both 240 V AC and 240 V DC operations with a switch contact current of 3 A.
It complies with CB, CCC, cUL, and UL standards ensuring quality and safety.
The robust construction includes gold-plated silver contacts for low voltage and current applications.
The switch operates reliably within a temperature range of -30°C to 70°C.
Ideal applications include industrial machinery, ticketing and vending machines, elevators, security systems, medical and food industry equipment.

Product Description

EAO 82-5151.2134.B002 is a premium illuminated push button switch designed for panel mounting with a 19 mm cutout. It features a latching switch operation and an SPDT contact configuration with a green LED indicator for operational status.

This switch offers vandal-resistant and impact resistant construction suitable for exposed public areas such as ticketing and vending machines. It delivers excellent tactile feedback and a long service life with over one million cycles.

The device supports both 240 V AC and 240 V DC voltages, with a switch contact current rating of 3 A. It has gold-plated silver contacts available for enhanced performance at low voltages and currents.

Operating reliably between -30°C and 70°C, this switch meets CB, CCC, cUL, and UL standards that ensure compliance and safety for industrial and commercial applications.

It is extensively used in industrial machinery, elevator and people mover controls, building access and security management systems, medical equipment, and food industry environments with corrosion-resistant variants available on request.

The switch features impact resistant vandal-proof design. Excellent tactile feedback ensures user confidence. Gold-plated silver contacts improve reliability in low current applications. Compliant with multiple international safety standards.

Capable of over one million switching cycles providing durability. Suitable for a broad range of applications including industrial and public spaces. Green LED illumination provides clear status indication.

This EAO Push Button Switch epitomizes quality and durability for demanding industrial and commercial environments. Browse our Electronics & Electricals category for more high-quality switches and components by EAO and other top brands.
