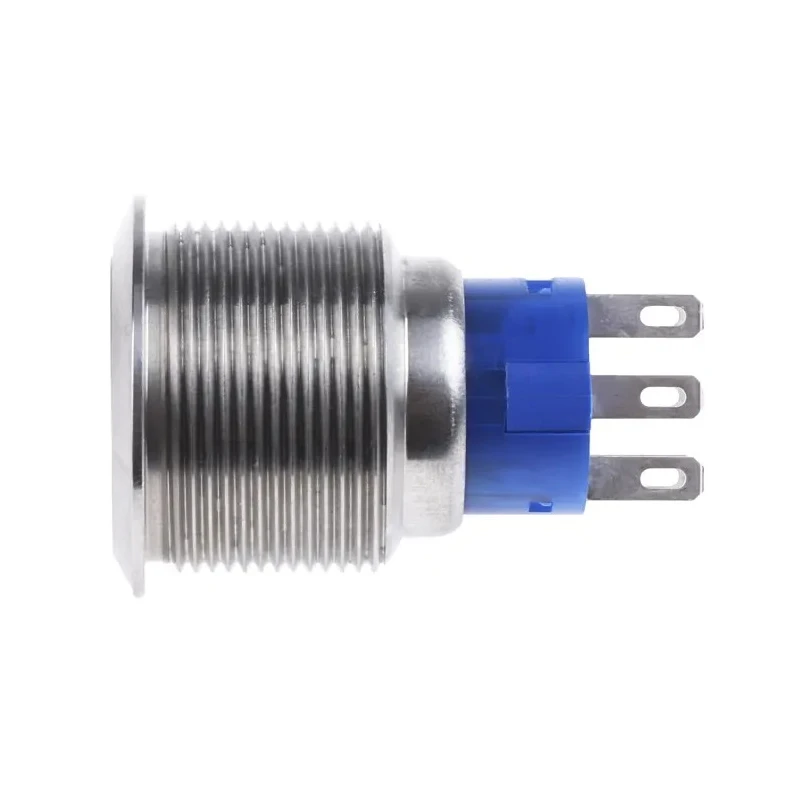

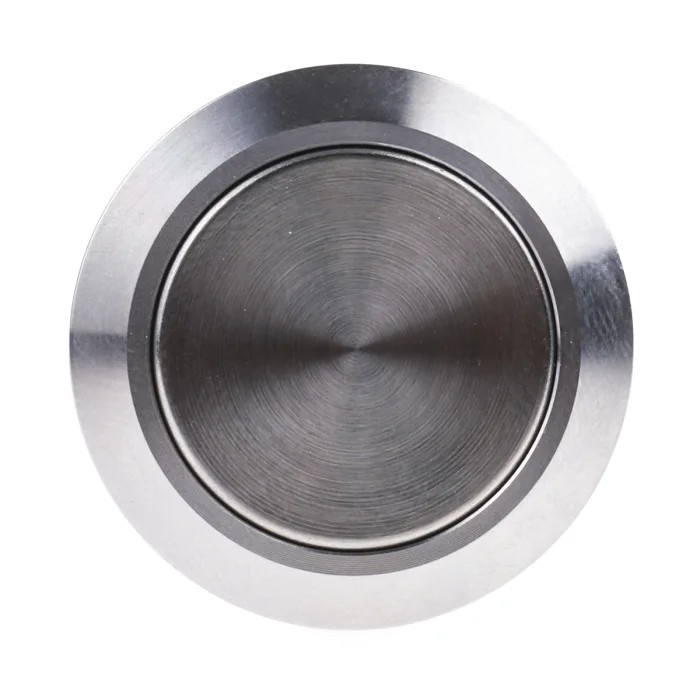

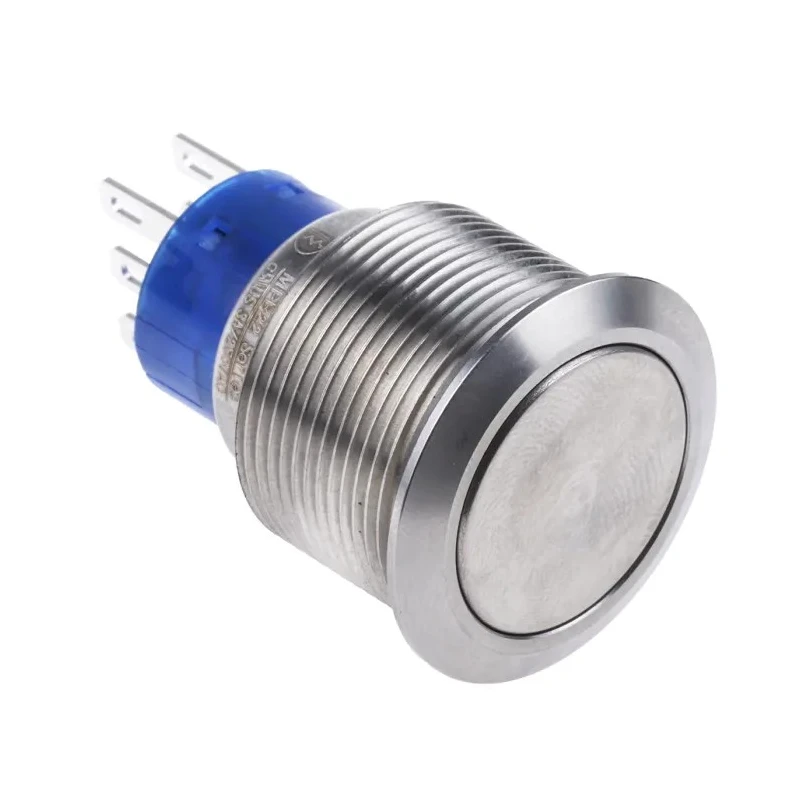

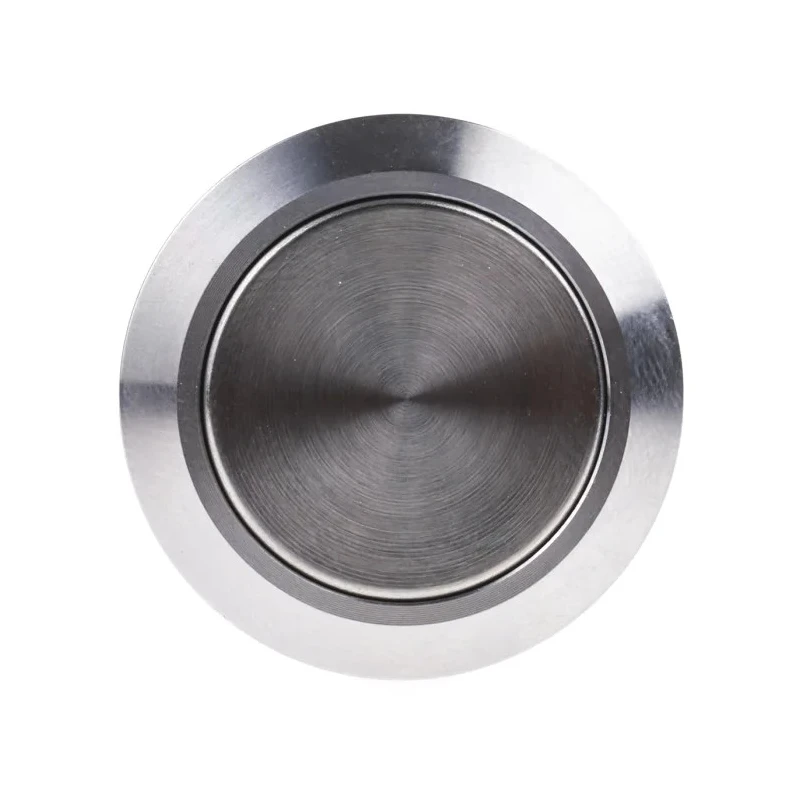

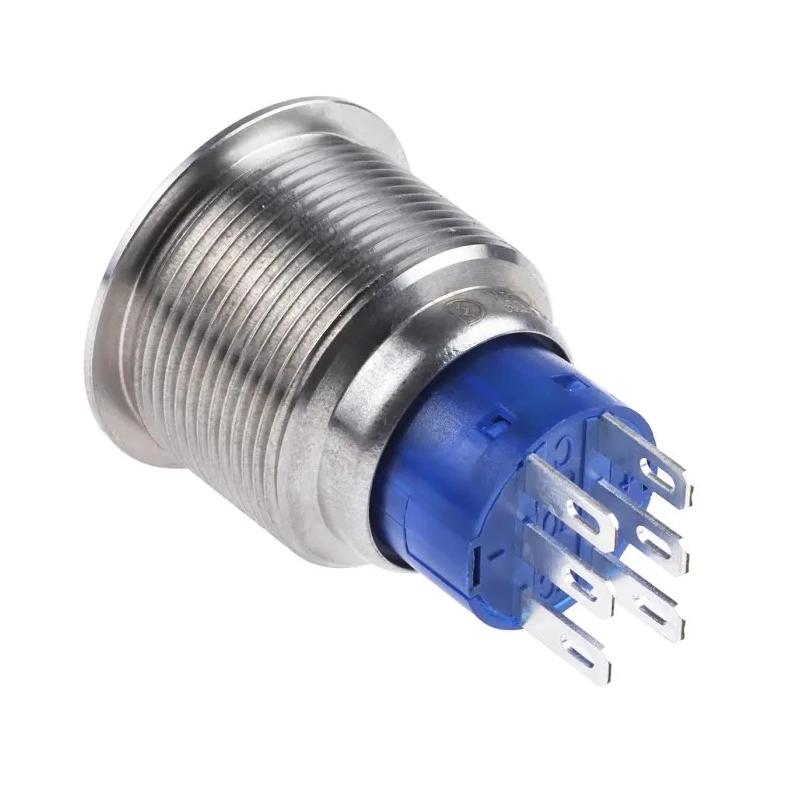

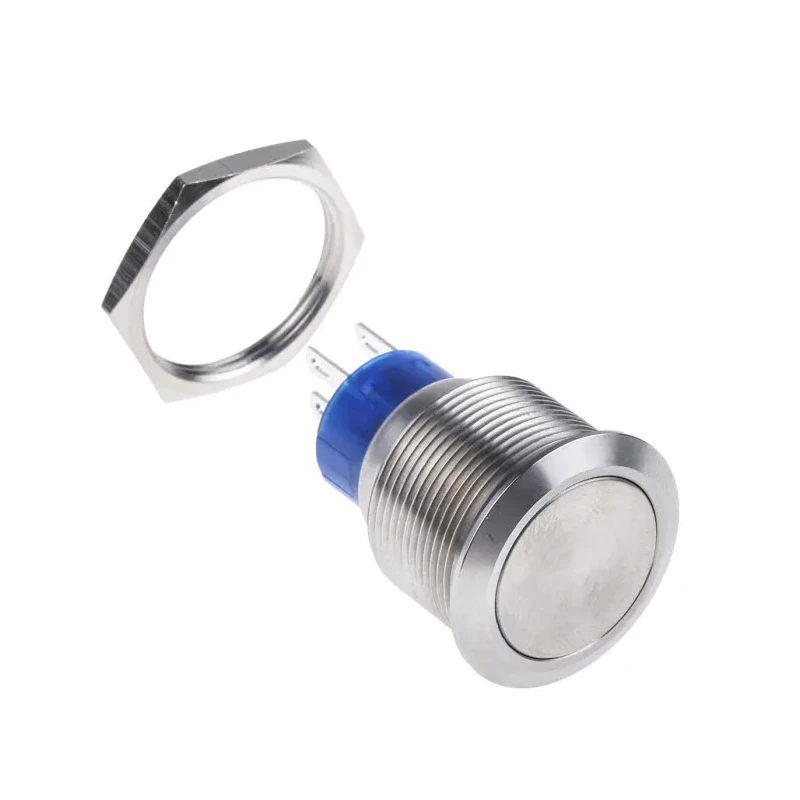

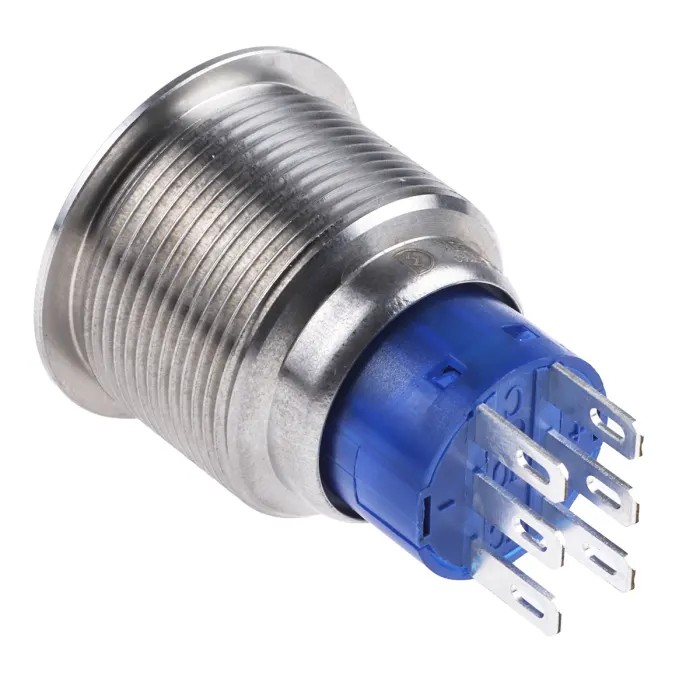

RS PRO Push Button Switch Momentary Panel Mount 22.2 mm Cutout DPDT IP67 250 V AC 175-9310
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 175-9310 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | cULus Recognized, EC18, EN18, UL 94 V-0, UL 94 V-2 |
| Switch Operation | Momentary |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 3, 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch operates on momentary action for precise control.
- Panel mount type with a 22.2 mm cutout ensures easy installation.
- Double Pole Double Throw (DPDT) contact configuration supports versatile circuit requirements.
- High protection rating IP67 makes it dust tight and waterproof.
- Flat actuator style for comfortable user interaction.
- Compatible with contact voltages up to 250 V AC and DC.
- Switch contact current rating includes 3 A and 5 A for varied applications.
- Operates within temperature range from -20°C to 70°C ensuring reliability in diverse environments.
Product Description
The RS PRO 175-9310 Push Button Switch is a momentary action, panel mount switch designed for industrial, automation, and electrical control applications. With a precise panel cutout of 22.2 mm and a robust Double Pole Double Throw (DPDT) contact configuration, this switch offers versatility and reliability in demanding installations.
Its IP67 rating certifies dust and water ingress protection, making it suitable for harsh industrial environments where exposure to elements is common. The flat actuator style provides ergonomic and tactile feedback for operators, ensuring efficient and safe operation.
Rated for contact voltages of 250 V AC and DC and contact currents of 3 A and 5 A, the switch meets diverse electrical load requirements. Its operating temperature range from -20°C to 70°C supports use in a variety of climates and industrial processes.
Manufactured to meet strict standards such as cULus recognition, EC18, EN18, and UL 94 flame retardancy ratings, the RS PRO 175-9310 assures users of high safety and durability. The lightweight metal construction also offers corrosion resistance and effective heat dissipation.
This product is ideal for industrial control instruments, medical devices, security systems, automotive peripherals, audio-visual equipment, and energy storage solutions, providing high-quality switching in demanding scenarios.
The switch operates on momentary action for precise control. Panel mount type with a 22.2 mm cutout ensures easy installation. Double Pole Double Throw (DPDT) contact configuration supports versatile circuit requirements.
High protection rating IP67 makes it dust tight and waterproof. Flat actuator style for comfortable user interaction. Compatible with contact voltages up to 250 V AC and DC. Switch contact current rating includes 3 A and 5 A for varied applications.
Operates within temperature range from -20°C to 70°C ensuring reliability in diverse environments. Compliance to multiple standards including cULus, EC18, EN18, UL 94 V-0, and UL 94 V-2 guarantees safety and quality. Explore the RS PRO range at EnvMart for quality Push Button Switches with industrial-grade specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Double Pole Double Throw (DPDT) contact configuration, providing versatility for various circuit requirements.
It can operate at a maximum temperature of 70°C, making it suitable for various industrial environments.
This model has an IP67 rating, indicating it is dust tight and waterproof, suitable for harsh conditions.
The required panel cutout size for this switch is 22.2 mm, ensuring easy installation in compatible panels.
It is compatible with contact voltages of up to 250 V AC and 250 V DC, accommodating a range of electrical loads.
The switch has a contact current rating of 3 A and 5 A, allowing it to handle varied applications effectively.
It features a flat actuator style, providing comfortable user interaction and tactile feedback during operation.
This push button switch is recognized under multiple standards, including cULus, EC18, EN18, UL 94 V-0, and UL 94 V-2, ensuring safety and quality.
The minimum operating temperature for this model is -20°C, allowing it to function in colder environments.
It has solder type terminals, which are suitable for secure electrical connections during installation.
This switch is suitable for industrial control instruments, medical devices, security systems, automotive peripherals, and audio-visual equipment.
The specific weight of this model is not provided in the specifications, so please refer to the product documentation for detailed information.
