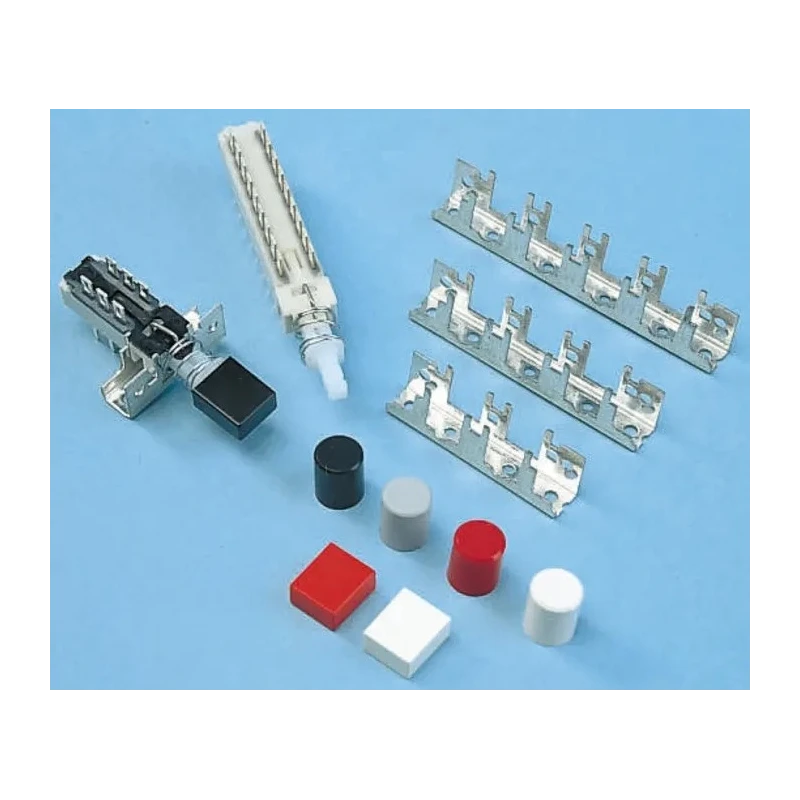

C & K F Series Push Button Switch 12.5 mm Cutout DPDT 6A Contact Current 103-2001-001
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Outputs | one side for fitting to the PCB, the other to the wire |
| Series | F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | UL and CSA, VDE |
| Switch Contact Current | 6A |
Key Features
- Features a double pole double throw (DPDT) contact configuration for versatile circuit control.
- Panel cutout size of 12.5 mm ensures compatibility with standard switch panels.
- Switch contact current rating of 6 amperes supports moderate load applications.
- Operates reliably within a temperature range of -40°C to 70°C for harsh environments.
- Complies with industry standards including UL, CSA, and VDE for safety and quality assurance.
- Terminal type is solder, facilitating secure and stable electrical connections.
- Outputs designed on one side for PCB fitting and the opposite side for wire connection.
- F series modular pushbuttons support modular assembly with miniature buttons for multiple applications.
Product Description
C & K 103-2001-001 F Series Push Button Switch with a 12.5 mm panel cutout features a DPDT (Double Pole Double Throw) contact configuration rated for 6A current. This modular pushbutton switch offers flexibility for electrical, automation, and control applications requiring reliable switching performance in environments with operating temperatures ranging from -40°C to 70°C.
The design includes solder-type terminals, facilitating secure connections suitable for surface-mounting on PCBs or wire wiring. The switch outputs include one side configured for PCB mounting and the opposite side for wire connections, providing versatile installation methods.
C & K’s F series modular switch range allows for modular frame switches with miniature buttons enabling varied combinations and functions by removing the jumper for switching or pushbutton roles within the same body.
This push button switch complies with UL, CSA, and VDE standards, ensuring adherence to internationally recognized safety and quality protocols. It is suitable for diverse industrial and commercial uses in electronics, electrical, automation systems, and instrumentation. Typical applications include control panels, automation equipment, and electronic assemblies requiring robust and precise pushbutton switches.
DPDT contact configuration for reliable double pole control. 12.5 mm panel cutout size for standard mounting. 6A rated switch contact current for moderate electrical loads. Wide operating temperature range from -40°C to +70°C.
Compliance with UL, CSA, and VDE safety standards. Solder terminal type enabling stable electrical connections. Outputs designed for both PCB and wire connections. Modular F series design allows multiple combinations and uses.
This switch is ideal for applications across industrial automation, electrical control panels, laboratory equipment, and HVAC controls. Explore the extensive range of C & K Push Button Switches for additional configurations and sizes on EnvMart for optimal integration into your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
The panel cutout size for this push button switch is 12.5 mm, ensuring compatibility with standard switch panels.
This model operates reliably within a maximum temperature of 70°C, suitable for harsh environments.
The switch has a contact current rating of 6 amperes, supporting moderate load applications.
It features solder-type terminals, which facilitate secure and stable electrical connections.
This model complies with UL, CSA, and VDE standards, ensuring adherence to recognized safety and quality protocols.
The outputs are designed with one side for fitting to a PCB and the opposite side for wire connections, providing versatile installation options.
The minimum operating temperature for this model is -40°C, allowing it to function in extreme conditions.
This switch is part of the F series, which supports modular assembly with miniature buttons for varied applications.
It is suitable for various applications including control panels, automation equipment, and electronic assemblies requiring reliable switching performance.
The country of origin for this push button switch is India.
Yes, this model is designed with outputs that allow for surface-mounting on PCBs, making it versatile for different installation methods.
