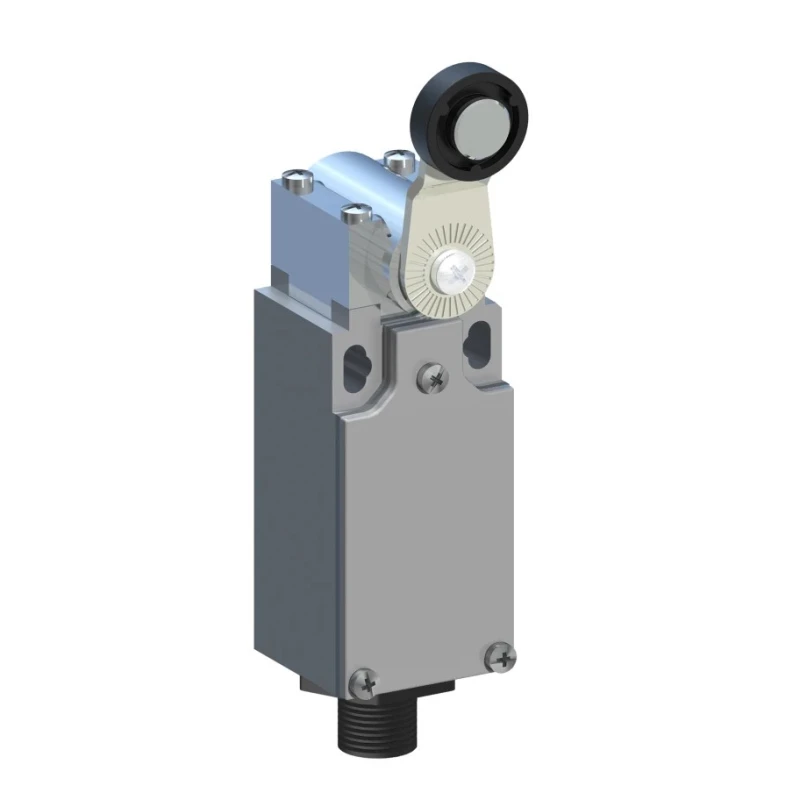

RS PRO Roller Lever Limit Switch DPST Metal Housing IP66 400V AC 10A IP66
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Length | 30.3mm |
| Model | IP66 |
| Depth | 107.5mm |
| IP Rating | IP66 |
| Width | 45mm |
| Housing Material | Metal |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | DPST |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | M12 5 Pole-Male Connector |
| Standards/Approvals | RoHS |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 400V ac |
| Conduit Entry | M12 |
Key Features
- The actuator type is a roller lever for precise switching.
- It supports switching currents up to 10A for reliable performance.
- The switch is rated IP66 for protection against dust and water ingress.
- Metal housing ensures durability in demanding environments.
- Terminal connection uses an M12 5 Pole-Male Connector.
- Operating temperature range is from -25°C to 70°C for versatility.
- Mechanical life expectancy exceeds 10 million cycles for long service.
- Suitable for vertical mounting and industrial automation control systems.
Product Description
RS PRO IP66 Roller Lever Limit Switch DPST 10A is designed for versatile industrial, automation, and control applications requiring precise position sensing. This limit switch features a durable metal housing rated IP66, providing excellent resistance to dust and water ingress, suitable for harsh environments.
The roller lever actuator type provides reliable and repeatable snap action switching, with a conventional thermal current rating of 10A. This product supports switching voltages up to 400V AC and 250V DC, making it adaptable for a wide range of industrial control circuits.
It comes equipped with an M12 5 pole male connector terminal for secure electrical connections, and is optimized for vertical mounting orientation. The mechanical life expectancy of 10 million cycles ensures longevity and reduces maintenance needs.
Operating temperature ranges from -25°C to 70°C, allowing operation in diverse conditions. Its compact dimensions of 45mm width and 107.5mm depth allow integration into existing control panels with limited space.
The metal casing and snap action contacts provide robust physical and electrical performance, while compliance with RoHS standards ensures environmentally responsible manufacturing. This limit switch is not certified for hazardous areas but is ideal for automation, manufacturing processes, and industrial machinery control.
The actuator type is a roller lever for precise switching. It supports switching currents up to 10A for reliable performance. The switch is rated IP66 for protection against dust and water ingress. Metal housing ensures durability in demanding environments.
Terminal connection uses an M12 5 Pole-Male Connector. Operating temperature range is from -25°C to 70°C for versatility. Mechanical life expectancy exceeds 10 million cycles for long service. Suitable for vertical mounting and industrial automation control systems.
Switching voltage supports up to 400V AC and 250V DC. Compact size with width of 45mm and depth of 107.5mm. Explore the RS PRO range of Limit Switches for reliable and durable industrial control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this limit switch is 10A.
This model supports switching voltages up to 400V AC and 250V DC.
It uses a roller lever actuator type for precise switching.
The limit switch is rated IP66, providing protection against dust and water ingress.
The operating temperature range is from -25°C to 70°C.
The mechanical life expectancy exceeds 10 million cycles.
It uses an M12 5 pole male connector for terminal connection.
The dimensions are 45mm in width and 107.5mm in depth.
Yes, it is optimized for vertical mounting orientation.
The housing is made of metal, ensuring durability in demanding environments.
Yes, it complies with RoHS standards for environmentally responsible manufacturing.
It is suitable for industrial automation, manufacturing processes, and control systems.
