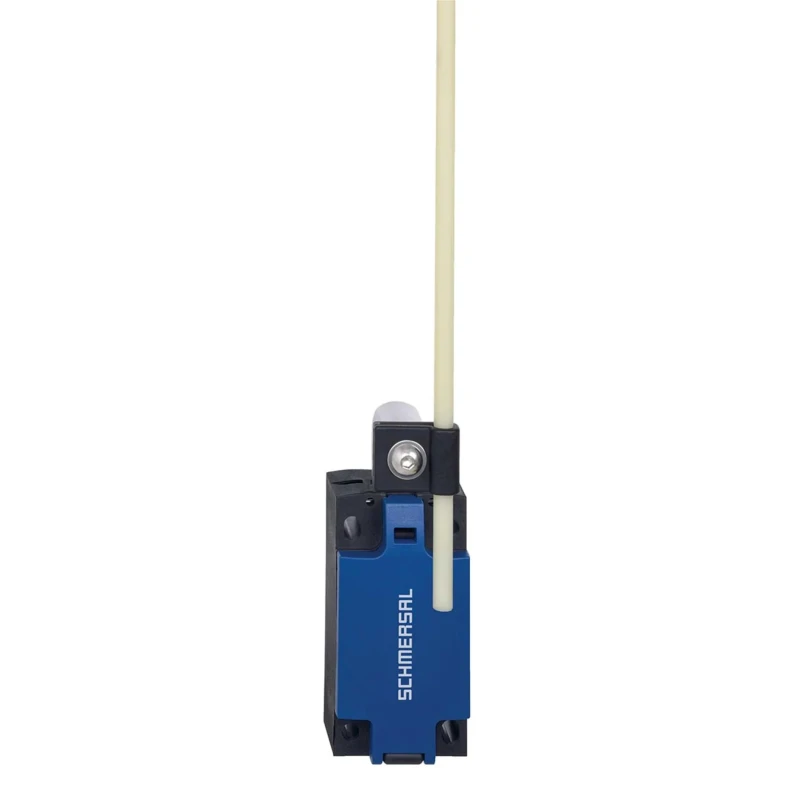

Schmersal PS316-Z12-J300 Series Rod Lever J300 Limit Switch, 1 NO/2 NC, IP67, IP66, Fibreglass Reinforced Plastic 103015144
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 37mm |
| IP Rating | IP67, IP66 |
| Width | 41mm |
| Housing Material | Fibreglass Reinforced, Plastic |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS316-Z12-J300 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |

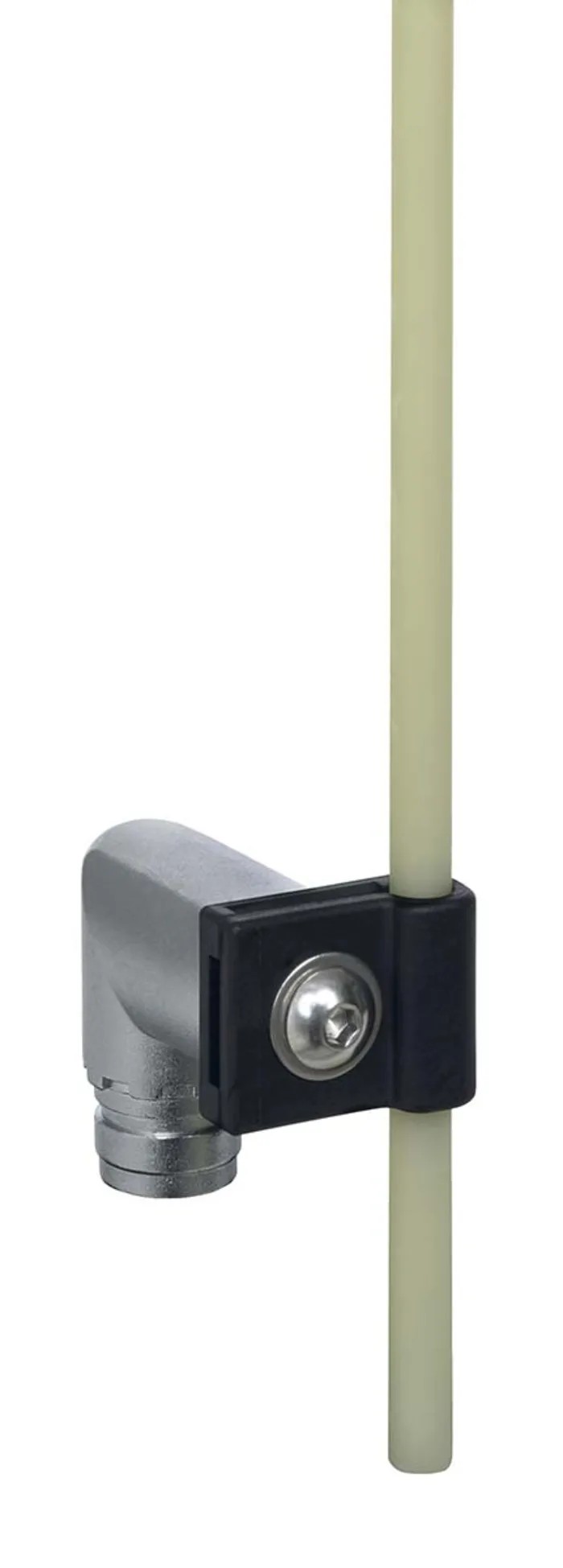

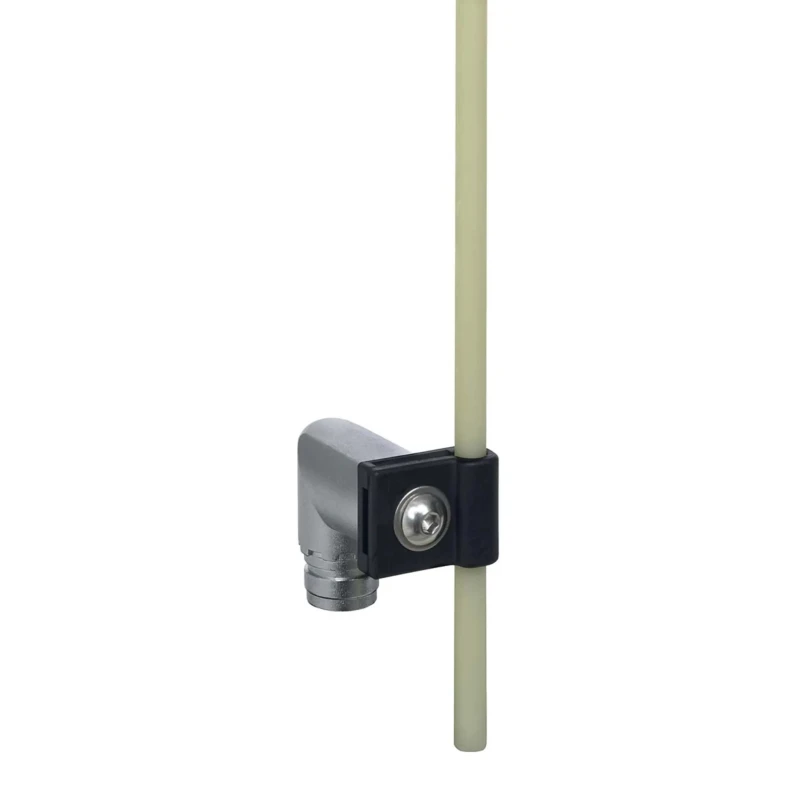

| Actuator Type | Rod Lever J300 |
| Contact Type | Silver |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Screw |
| Operating Force | 50N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 1 x M20 x 1.5 |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- Rod lever actuator type designed for industrial switching applications.
- Housing made of fibreglass reinforced plastic for enhanced durability.
- Silver contact type ensures excellent electrical conductivity.
- Rated switching current of 3A suitable for low power control circuits.
- Screw terminal type for secure wiring connections.
- Operating temperature range from -30°C to 80°C.
- High mechanical life rated at minimum 10,000,000 operations.
- Protection class compliant with IP66 and IP67 standards.
Product Description
Schmersal 103015144 Rod Lever J300 Limit Switch is engineered for precise industrial automation and control applications, offering robust performance in harsh environments. This limit switch features a fibreglass reinforced plastic housing that provides excellent resistance to mechanical stress and corrosion. With an actuator type of rod lever J300, it ensures dependable actuation in various positioning tasks.
The switch incorporates silver electrical contacts configured as 1 normally open (NO) and 2 normally closed (NC) contacts, supporting switching currents up to 3A at 24V dc and 240V ac, suitable for diverse control circuits. The robust screw terminal connections secure wiring and facilitate maintenance.
Designed for demanding operating conditions, the switch operates reliably within a temperature range of -30°C to 80°C and conforms to IP66 and IP67 ingress protection standards, making it suitable for dusty or wet industrial environments. It has a high mechanical life expectancy of at least 10 million operations, ensuring long-term durability and minimal downtime.
The compact size with a length of 37mm and width of 41mm allows easy integration into existing systems. Compliance with IEC 60947-5-1 and ISO 13849-1 standards underscores its commitment to safety and performance in industrial automation.
Rod lever actuator type designed for industrial switching applications. Durable fibreglass reinforced plastic housing for harsh environments. Silver contact type for reliable electrical conductivity. 3A rated switching current for versatile control applications.
Screw terminal connections ensure secure wiring. Wide operating temperature range from -30°C to 80°C. Protection class IP66 and IP67 for ingress resistance. Minimum mechanical life of 10,000,000 operations. Compact size enables flexible mounting options.
Certified to IEC 60947-5-1 and ISO 13849-1 safety standards.
This limit switch is ideal for industrial, electrical, automation, and manufacturing applications requiring durable, precise, and safe position detection. Explore the Schmersal range for additional components and switches suitable for various control system needs.
Explore more products in our Limit Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 normally open (NO) and 2 normally closed (NC) contacts, with a rated switching current of 3A. It supports switching voltages of 24V DC and 240V AC.
The operating temperature range for this limit switch is from -30°C to 80°C, making it suitable for various industrial environments.
It uses a rod lever actuator type designated as J300, designed for precise actuation in industrial applications.
The housing is made of fibreglass reinforced plastic, providing enhanced durability and resistance to mechanical stress and corrosion.
It has a high mechanical life expectancy rated at a minimum of 10 million operations, ensuring long-term functionality.
This unit has a length of 37mm and a width of 41mm, allowing for flexible mounting options in various applications.
This model complies with IP66 and IP67 ingress protection standards, making it suitable for dusty and wet environments.
It features screw terminal connections, which ensure secure wiring and facilitate maintenance.
It is certified to ISO 13849-1 safety standards, ensuring its reliability in industrial automation applications.
The operating force required for actuation is 50N, which is typical for industrial applications.
This limit switch is manufactured in Germany, reflecting the standards of quality associated with German engineering.
It is designed for industrial, electrical, automation, and manufacturing applications requiring precise and safe position detection.
