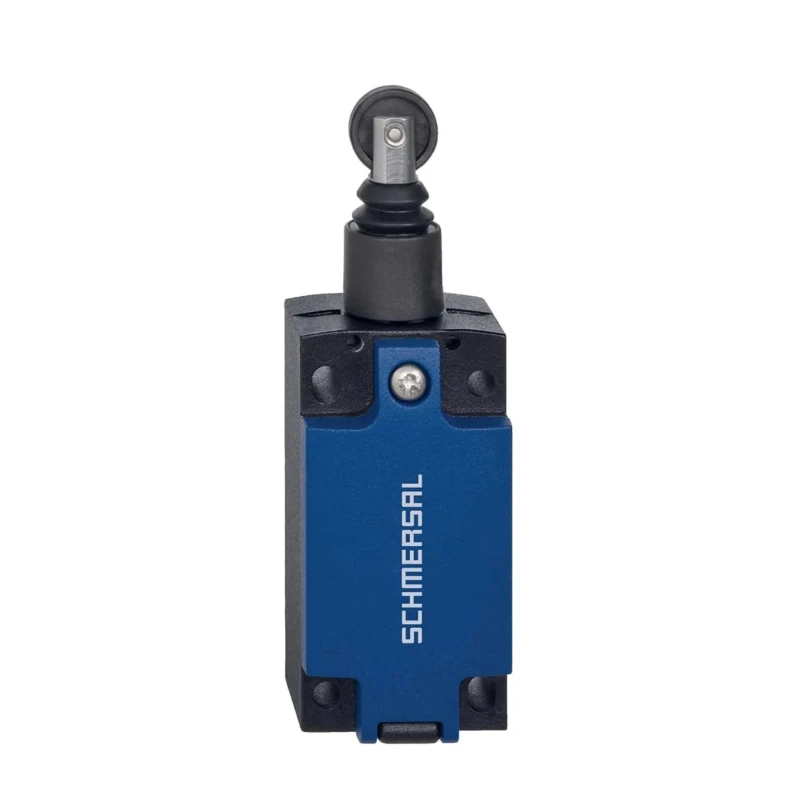

Schmersal PS315-Z12-R300 Series DIN Rail Limit Switch, 1 NO/2 NC Contacts, IP66, IP67, Metal Die Cast Zinc 103015101

Schmersal 103015101 DIN Rail Limit Switch from the PS315-Z12-R300 series is a high-performance industrial switch designed for precise position detection in automation and safety systems. Featuring a robust metal die cast zinc housing, this limit switch ensures mechanical and environmental durability with IP66 and IP67 rated protection.

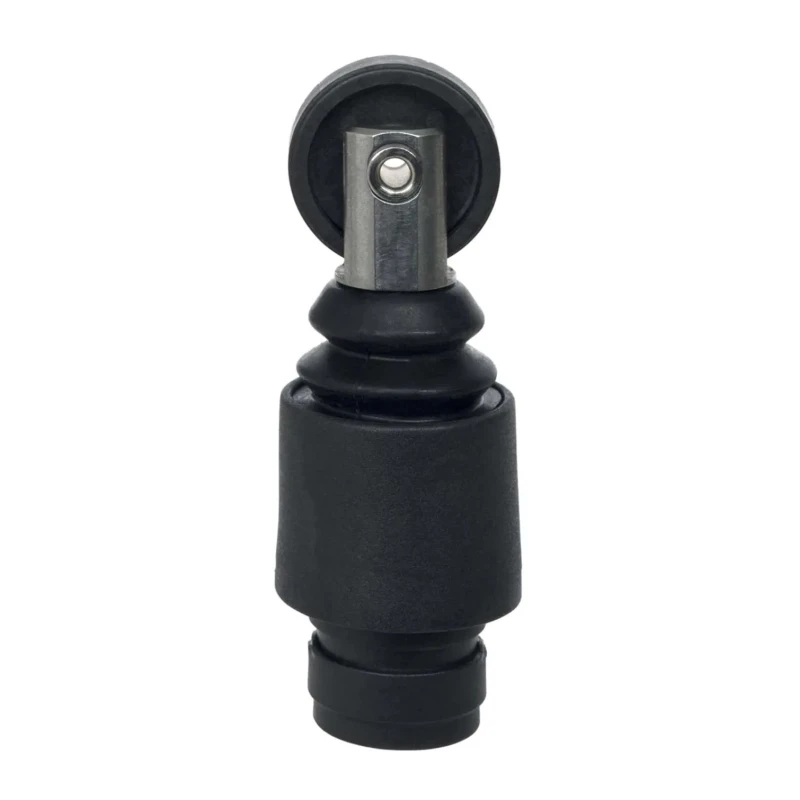

This model incorporates a roller plunger actuator with 1 normally open (NO) and 2 normally closed (NC) silver contacts designed to handle switching currents up to 3A at 240V AC. The switch operates efficiently within a temperature range of -30°C to 80°C, making it suitable for diverse industrial conditions.

The switch offers screw terminal type connections for straightforward wiring and features a mechanical life expectancy of 10 million operations, reflecting its suitability for continuous industrial use. Additionally, it meets international standards such as IEC 60947-5-1 and ISO 13849-1, ensuring compliance with safety and functional requirements.

With a switching frequency of 5,000 operations per hour and a mechanical operating force of 50N, this switch provides reliable performance for industrial automation, manufacturing systems, and process control environments. The protection class ratings IP66 and IP67 guarantee dust-tightness and protection against water submersion, suitable for challenging installations.

The Schmersal PS315-Z12-R300 series limit switch is an ideal choice for applications requiring precision, reliability, and robust protection on DIN rail assemblies. This product originates from Germany and aligns with various hazardous area certifications including EAC, cULus, and CCC.

Durable metal die cast zinc housing suitable for harsh environments. Rated for switching current of 3A at 240V AC voltage. Operates reliably in temperatures ranging from -30°C to 80°C. Equipped with screw terminal connections for secure installation.

Complies with IEC 60947-5-1 and ISO 13849-1 standards. Mechanical lifespan of 10 million operations ensuring long-term durability. Integrated roller plunger actuator type for precise switching action. Protection class IP66 and IP67 for dust-tight and water immersion resistance.

Compatible with standard DIN rail mounting systems. Explore more Schmersal automation and safety components in the Limit Switches category for reliable industrial solutions.
