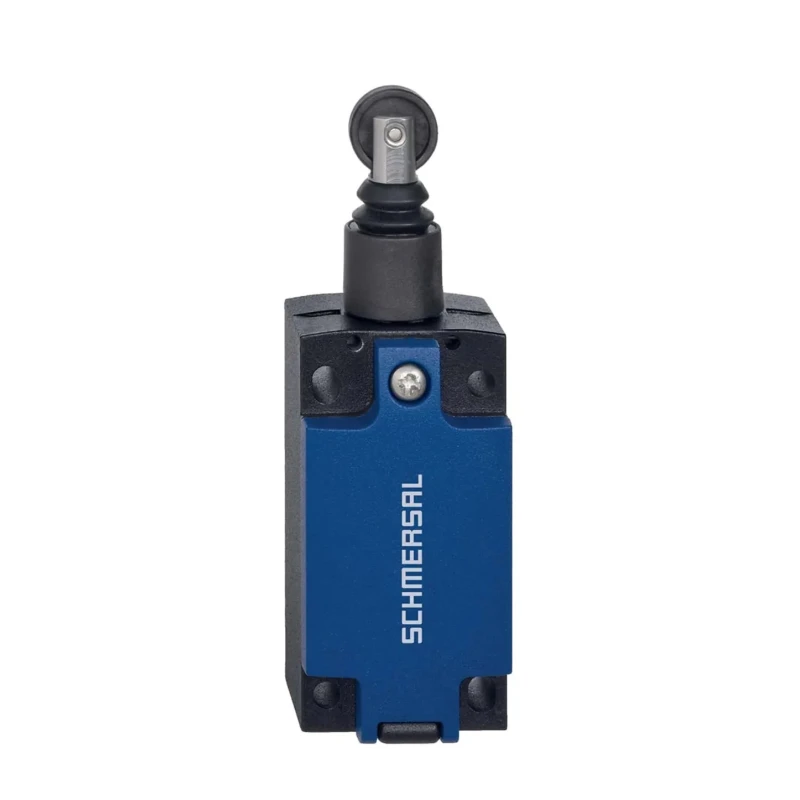

Schmersal PS315-T12-R300 Series Roller Plunger Limit Switch 1 NO/2 NC IP66 IP67 Die Cast Zinc Metal Housing 240V 103015118

Schmersal 103015118 PS315-T12-R300 Series Roller Plunger Limit Switch is engineered for reliable position detection and automation control in industrial environments. It features a roller plunger actuator that provides precise mechanical actuation for limit switching tasks.

The device is encased in a sturdy die cast zinc metal housing which offers excellent mechanical protection and resistance against harsh industrial conditions. Its protection rating of IP66 and IP67 ensures immunity against dust ingress and temporary water immersion, making it suitable for demanding indoor and outdoor applications.

This limit switch supports a contact configuration of 1 Normally Open (NO) and 2 Normally Closed (NC) contacts with silver contact material, delivering consistent and low-resistance electrical connections. It is designed for a switching AC voltage of 240V and a rated switching current of 3A.

With mechanical durability tested up to 10 million operations, this limit switch assures operational reliability over extended usage periods within an operating temperature range from -30°C to 80°C. The terminal connections use secure screw terminals, facilitating straightforward and reliable wiring.

The compact form factor measuring 37mm in length and 41mm in width allows for installation in constrained spaces without sacrificing performance. The switch conforms to the international standards IEC 60947-5-1 and ISO 13849-1, ensuring compliance with industry safety and functional requirements.

This product, manufactured in Germany, finds extensive usage in industrial automation, manufacturing lines, conveyor systems, and safety equipment where precise position sensing and reliable limit switching are crucial. Its robust mechanical design and ingress protection make it well-suited for industrial, laboratory, and manufacturing environments requiring durable and accurate limit switch solutions.

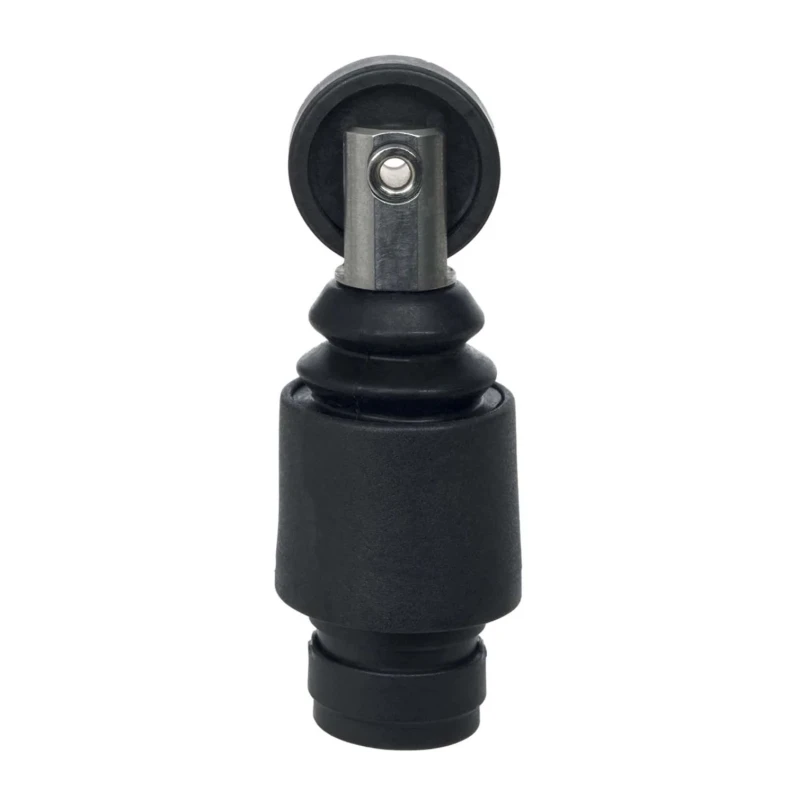

The actuator type is roller plunger suitable for mechanical triggering. Constructed with die cast zinc metal housing ensuring durability and protection. Rated with IP66 and IP67 protection classes for dust tight and water immersion resistance.

Designed to operate at 240V AC with a switching current of 3A. Equipped with silver contacts to provide reliable electrical connectivity. Supports mechanical life of up to 10 million operations for long-lasting use. Operates reliably between -30°C and 80°C temperature range.

Includes screw type terminal connections for secure wiring. Compact dimensions with a length of 37mm and width of 41mm. Complies with IEC 60947-5-1 and ISO 13849-1 safety and performance standards. Browse the wide selection of Limit Switches and industrial electrical components on EnvMart to find optimal solutions for your automation and control requirements.
