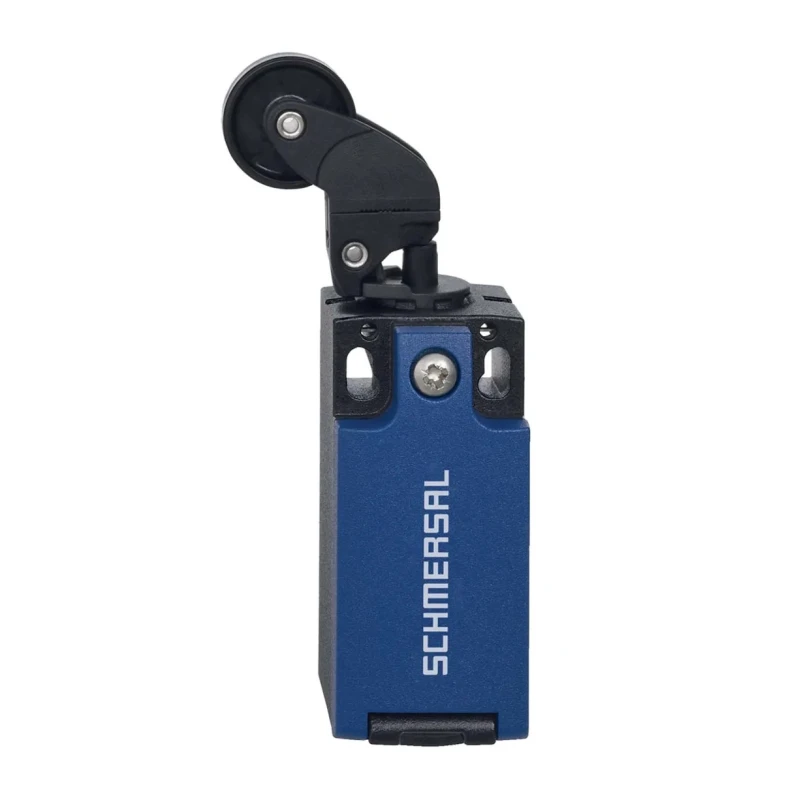

Schmersal PS215-Z12-K250 Series Angle Roller Lever K250 Limit Switch, 1 NO/2 NC, IP67, IP66, Metal Die Cast Zinc 103014969

Schmersal 103014969 PS215-Z12-K250 Series Angle Roller Lever K250 Limit Switch is a highly reliable device designed for precise position detection and control in industrial systems. Featuring an angle roller lever actuator (K250 type), the switch provides reliable mechanical actuation with 1 Normally Open (NO) and 2 Normally Closed (NC) silver contacts for flexible switching configurations.

The robust metal housing, made from die cast zinc, offers excellent durability and resistance to mechanical and environmental stresses, rated with ingress protection classes IP66 and IP67. This ensures functioning in wet, dusty, or challenging industrial environments such as manufacturing, automation, and safety controls.

Electrical ratings include a switching current of 3A with a capability to handle up to 24V DC and 240V AC voltages. The limit switch terminal connection is via screw terminals for secure and maintenance-friendly wiring. Mechanical life expectancy is rated at a minimum of 10 million operations, underscoring the switch's quality and longevity.

Operating temperatures between -30°C and 80°C make it suitable for use in extremes of climate and industrial conditions. The device conforms to internationally recognized standards including ISO 13849-1 and IEC 60947-5-1, and certifications such as EAC, cULus, and CCC further attest to its compliance and safety credentials.

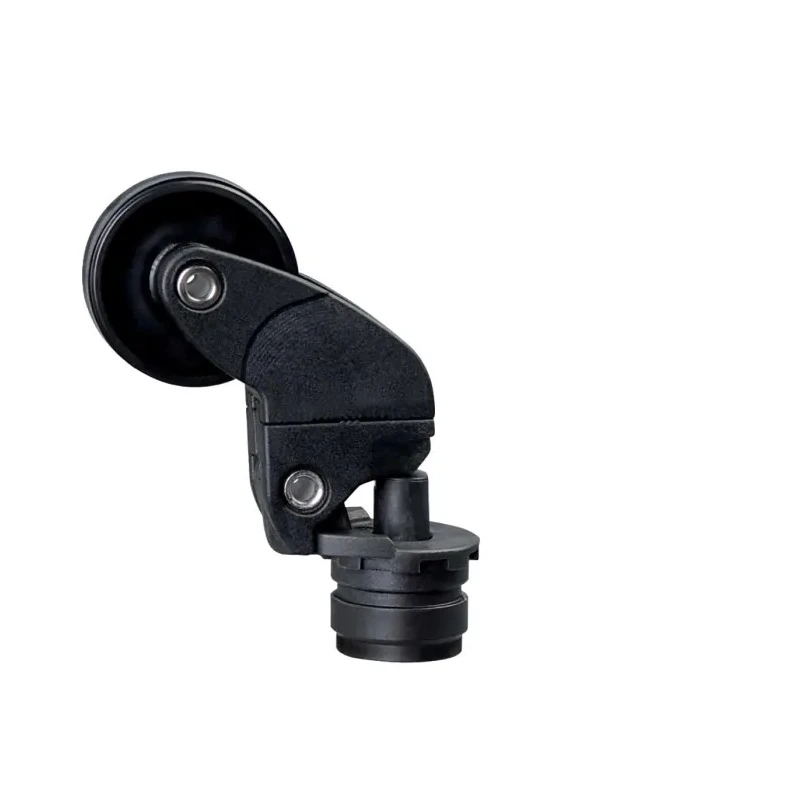

The switch features an angle roller lever actuator ensuring precise operational control. Contact configuration provides 1 NO and 2 NC silver contacts for diverse control schemes. Die cast zinc housing guarantees robust mechanical protection with IP66/IP67 rating.

Supports switching DC and AC voltages up to 24V and 240V respectively with a 3A current rating. Terminal type is screw connection for secure and convenient wiring. Conduit entry sized 1 x M20 x 1.5 suitable for standard industrial wiring conduits.

Mechanical life rated for 10 million operations ensures dependable performance over time. Operating force of 40N provides consistent mechanical actuation sensitivity. Compact dimensions of 32.5 mm length and 31 mm width facilitate installation in constrained spaces.

Certified to ISO 13849-1 and IEC 60947-5-1 standards with additional hazardous area approvals.

This Limit Switch is ideal for applications in sectors such as industrial automation, manufacturing processes, electrical safety circuits, and machine control systems where reliable and durable position sensing is critical. Its rugged construction and compliance with international safety standards make it an excellent component in demanding industrial environments.
