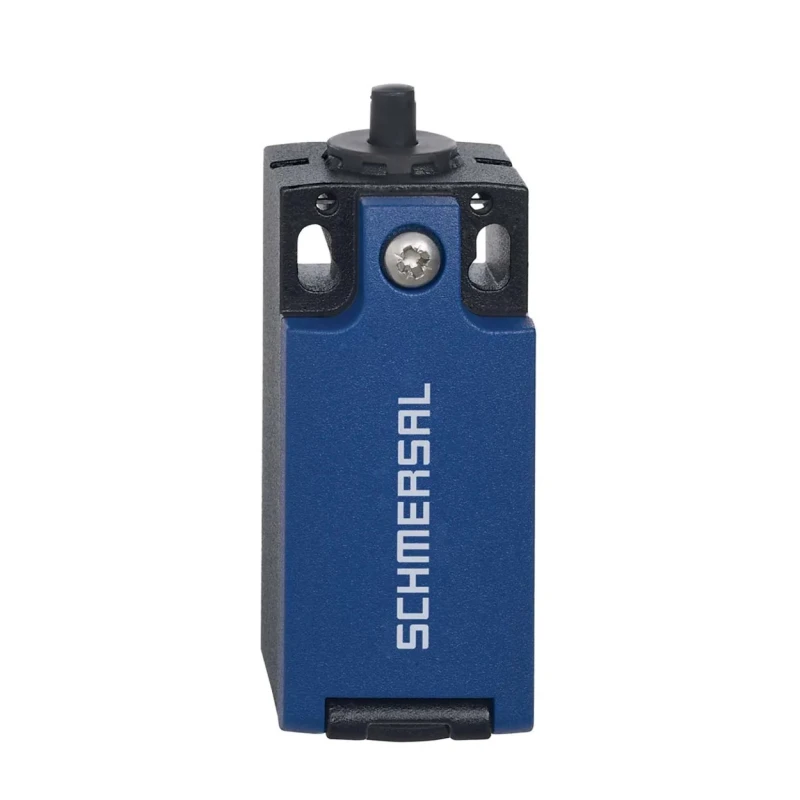

Schmersal Plunger Limit Switch, IP66 IP67 Die Cast Zinc Metal Housing, 240V AC, 3A, PS215-T12-S200 Series 103014979
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 32.5mm |
| IP Rating | IP66, IP67 |
| Width | 31mm |
| Housing Material | Die Cast Zinc, Metal |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS215-T12-S200 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | Plunger |
| Contact Type | Silver |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Screw |
| Hazardous Area Certification | CCC, cULus, EAC |
| Operating Force | 40N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- Norm construction design with B type plunger actuator.
- Die cast zinc metal housing ensures robust protection.
- Contact configuration includes 1 Normally Open (NO) and 2 Normally Closed (NC) contacts.
- Silver electrical contacts provide high conductivity and reliability.
- Screw type terminal connection for secure wiring.
- Suitable for harsh environments with operating temperature from -30°C to 80°C.
- Meets IEC 60947-5-1 and ISO 13849-1 standards for safety and performance.
- Mechanical life rated at 10,000,000 operations for durability.
Product Description
Schmersal 103014979 Plunger Limit Switch PS215-T12-S200 Series is designed for industrial and automation applications requiring precise positional control. It features a plunger actuator with a robust die cast zinc metal housing that offers IP66 and IP67 ingress protection, suitable for harsh and demanding environments.
This limit switch operates at 240V AC voltage with a switching current of 3A, making it ideal for various electrical control circuits. Its electrical contacts are made of silver, ensuring excellent conductivity and long-term reliability. The switch includes a contact configuration of 1 Normally Open (NO) and 2 Normally Closed (NC) contacts, suitable for multiple switching functions.
The device is fitted with screw terminals to ensure secure and reliable electrical connections. It operates safely across a wide temperature range from -30°C to 80°C and complies with recognized industrial standards IEC 60947-5-1 and ISO 13849-1, ensuring safety and performance in industrial automation systems.
Mechanically, the switch provides a life expectancy of at least 10 million operations, supporting long-term industrial usage. Hazardous area certifications such as CCC, cULus, and EAC mark this product as compliant with safety regulations for global markets.
Compact in size with 32.5mm length and 31mm width, it is designed for easy mounting with a conduit entry size of M20. The operating force required is 40N, providing precise actuator response.
This limit switch is suitable for applications in electrical automation, manufacturing, machinery safety systems, and other industrial settings requiring reliable position detection and control.
Norm construction design with B type plunger actuator. Die cast zinc metal housing provides durable protection. 1 NO and 2 NC contact configuration with silver contacts. Screw terminal connectors for easy wiring. Operating temperature from -30°C to 80°C.
Meets IEC 60947-5-1 and ISO 13849-1 standards. Mechanical life rated for 10,000,000 operations. Certified CCC, cULus, EAC for hazardous areas. Compact dimensions of 32.5mm length and 31mm width. Explore more Schmersal Limit Switches and related products on EnvMart for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 80°C.
It features a contact configuration of 1 Normally Open (NO) and 2 Normally Closed (NC) contacts.
This unit has a length of 32.5mm and a width of 31mm.
The switching current rating is 3A.
It is suitable for harsh environments due to its IP66 and IP67 ingress protection ratings.
The mechanical life is rated for at least 10,000,000 operations.
The housing is made of die cast zinc metal, providing robust protection.
It is certified with CCC, cULus, and EAC for hazardous areas.
It uses a plunger actuator type.
The operating force required is 40N.
It meets the IEC 60947-5-1 and ISO 13849-1 standards for safety and performance.
It features screw type terminal connections for secure wiring.
