Honeywell Technologies Long Straight Lever Micro Switch PCB Terminal 6A 250V AC SPDT IP00 ZW50F20JD1

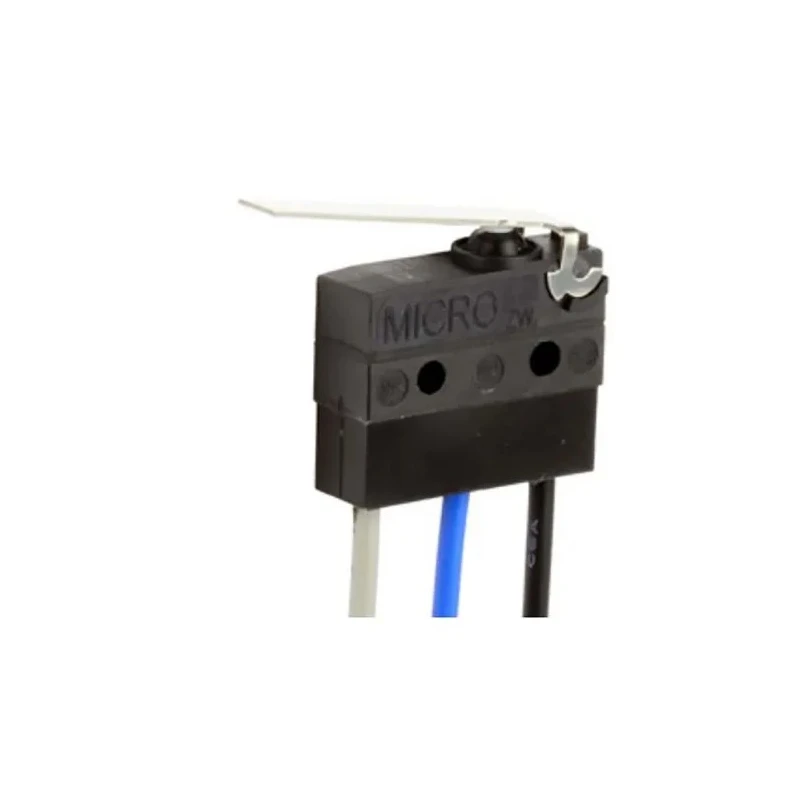

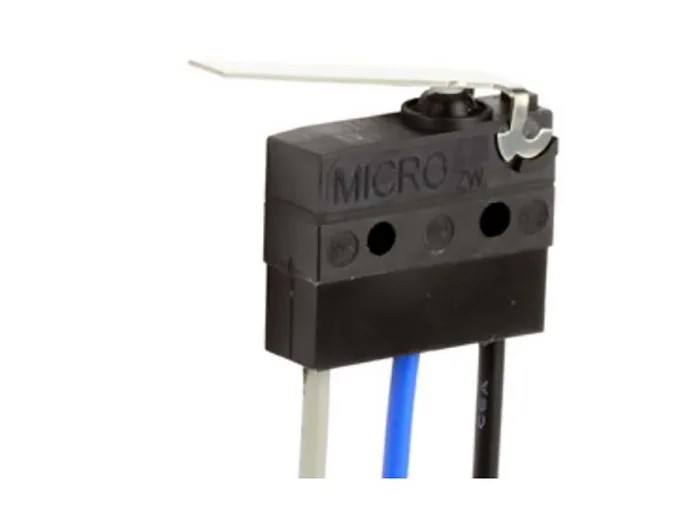

Honeywell ZW50F20JD1 is a subminiature micro switch featuring a long straight lever actuator and PCB terminal type, designed for integration into printed circuit boards where a robust and compact switching element is required.

This micro switch supports a switch contact current of 6A at 250 V AC and utilizes a single-pole double-throw (SPDT) contact configuration for versatile signal switching delivery. The housing material is polybutylene terephthalate, providing dimensional stability and protection against mechanical stress.

It operates reliably in a broad temperature range from -40°C to 120°C, making it suitable for both cold-start and high-temperature industrial conditions. The operating force of 203 grams ensures consistent and responsive actuation.

The mechanical life of this micro switch is rated at 1,000,000 cycles, which reduces maintenance frequency and increases operational longevity. It is certified with safety and quality approvals including CQC, cUL, ENEC, UL, and conforms to RoHS standards for restricted substances.

The IP00 ingress protection rating denotes a non-sealed device suited for protected environments, with an available IP67 sealed option for harsher conditions requiring dust and water resistance.

The micro switch measures 19.8 mm length, 9.25 mm depth, and 6.4 mm width, designed for easy mounting on PCBs in control and sensing systems.

Typical applications include limit sensing in industrial automation equipment, control panel AC switching, end-of-travel detection in small motors, consumer appliance safety interlocks, and repeatable actuation in test rigs.

The switch features a polybutylene terephthalate housing providing mechanical robustness. SPDT contact configuration enables single-pole double-throw switching functionality. Operating force is 203 grams ensuring consistent actuation responsiveness.

Wide temperature range from -40°C to 120°C suits diverse environments. The micro switch supports up to 1 million mechanical cycles guaranteeing durability. Compliance with CQC, cUL, ENEC, RoHS, and UL standards ensures international safety and quality recognition.

IP00 rating covers non-sealed applications with availability of IP67 variant for sealed environments. Compact dimensions facilitate PCB mounting in tight spaces. Ideal for industrial automation, control panels, small motors, consumer appliance safety interlocks, and test rig applications.
