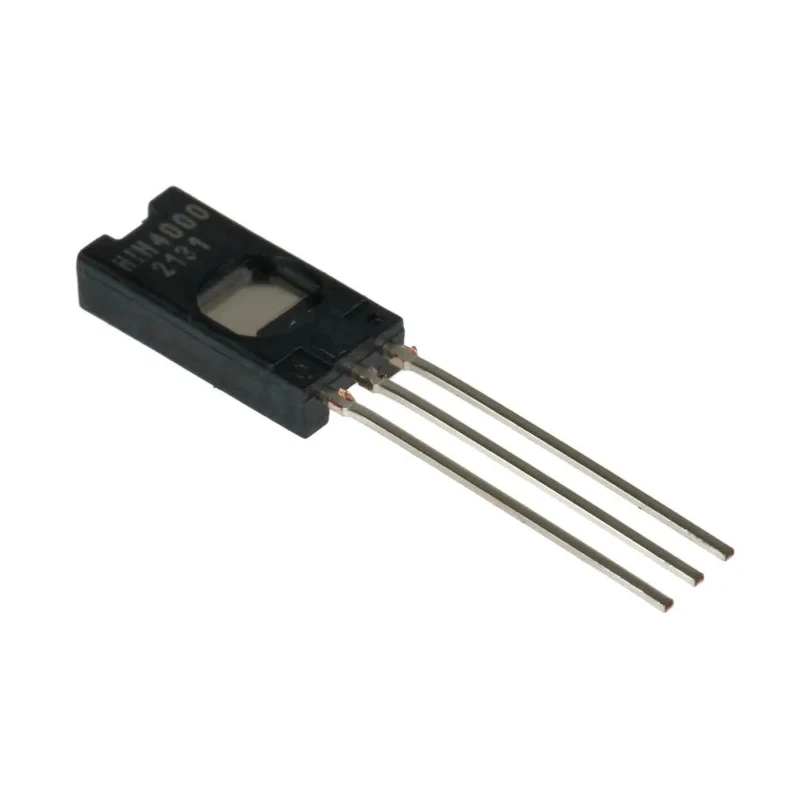

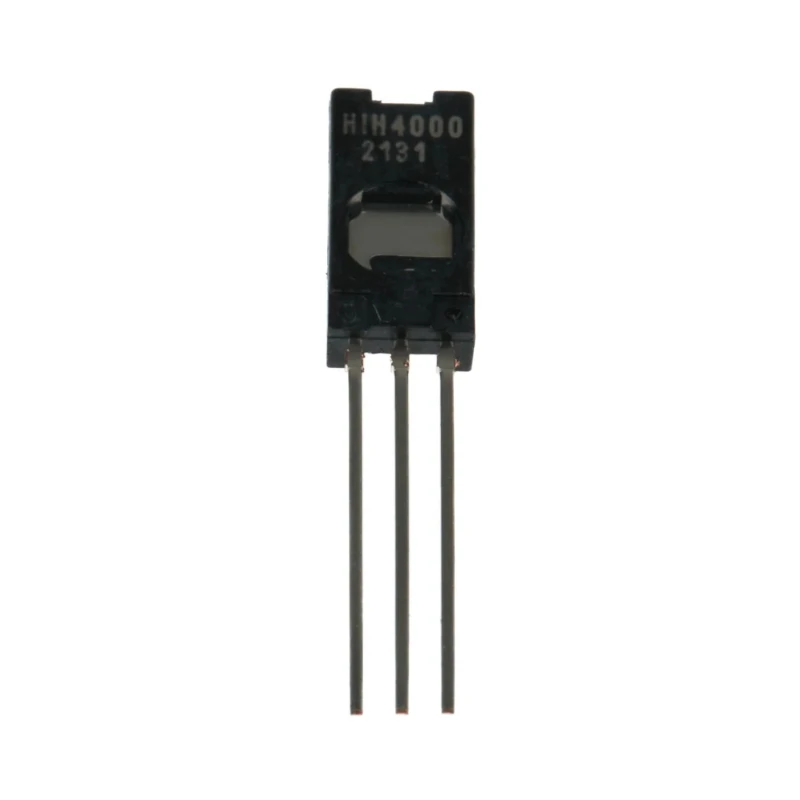

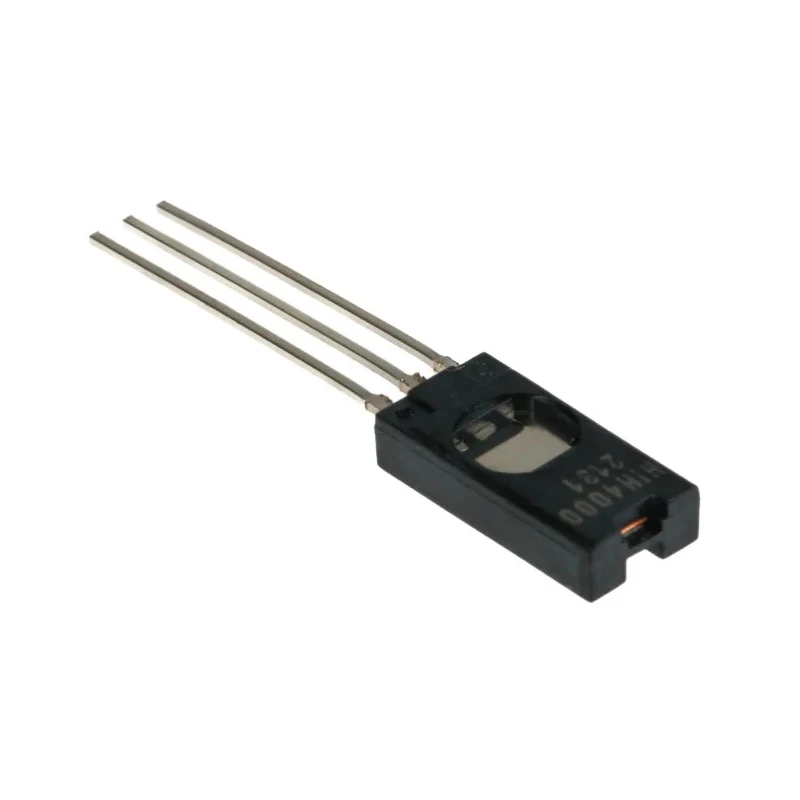

Honeywell Technologies Humidity Sensor Analogue Output Through Hole Mount ±3.5 %RH 3-Pin SIP HIH-4000-002

Honeywell HIH-4000-002 is a high-accuracy analogue output humidity sensor featuring a 3-pin through-hole single in-line package (SIP) designed specifically for OEMs requiring reliable and durable humidity sensing solutions.

The sensor operates over a wide temperature range of -40°C to +85°C, making it suitable for challenging environmental conditions. Its moulded thermoset plastic housing provides protection against moisture, oils, dirt, dust, and chemicals ensuring longevity and stable performance.

The low current draw of approximately 200 μA makes it appropriate for incorporation in battery-powered and low-drain systems. The near-linear analog voltage output relative to relative humidity facilitates straightforward integration with controllers or measurement devices.

Typical applications include heating, ventilation, and air conditioning (HVAC) systems, medical instruments requiring strict humidity control, refrigeration units, and meteorological monitoring equipment.

The compact SIP housing measures 4.17 mm in length, 2.03 mm in width, and 8.59 mm in height, allowing easy PCB mounting via through-hole soldering of the 3 pins. Analogue output type Humidity Sensor providing ±3.5 %RH accuracy.

Single in-line package (SIP) with 3 pins for through-hole PCB mounting. Operating voltages range from 4 V minimum to 5.8 V maximum. Operating temperature spans -40 to 85 °C, supporting diverse applications. Robust construction resists environmental contaminants and physical impacts.

Low power consumption suitable for portable and low-drain devices. Near linear voltage output versus humidity allows direct electronic interfacing.

Choose Honeywell HIH-4000-002 for precise, durable, and easy-to-integrate humidity sensing in demanding industrial and commercial conditions. Discover more sensors and components in the Electronics & Electricals category on EnvMart.
