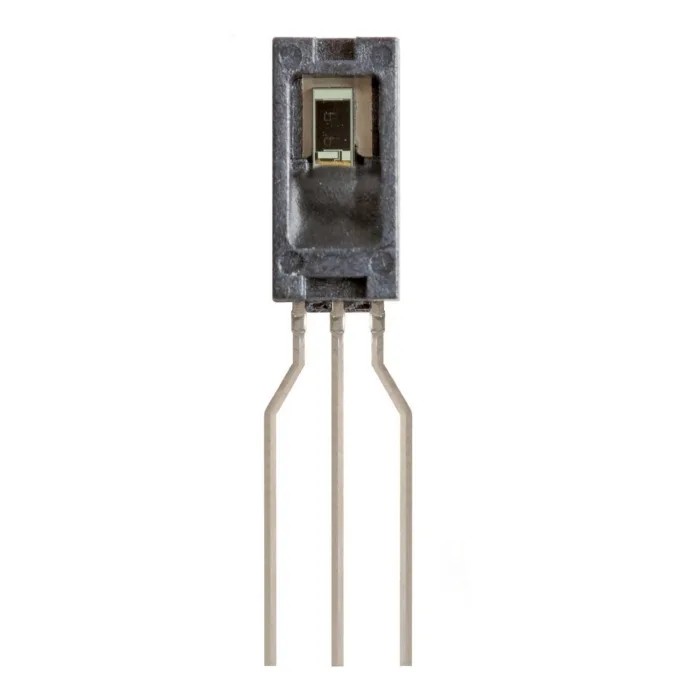

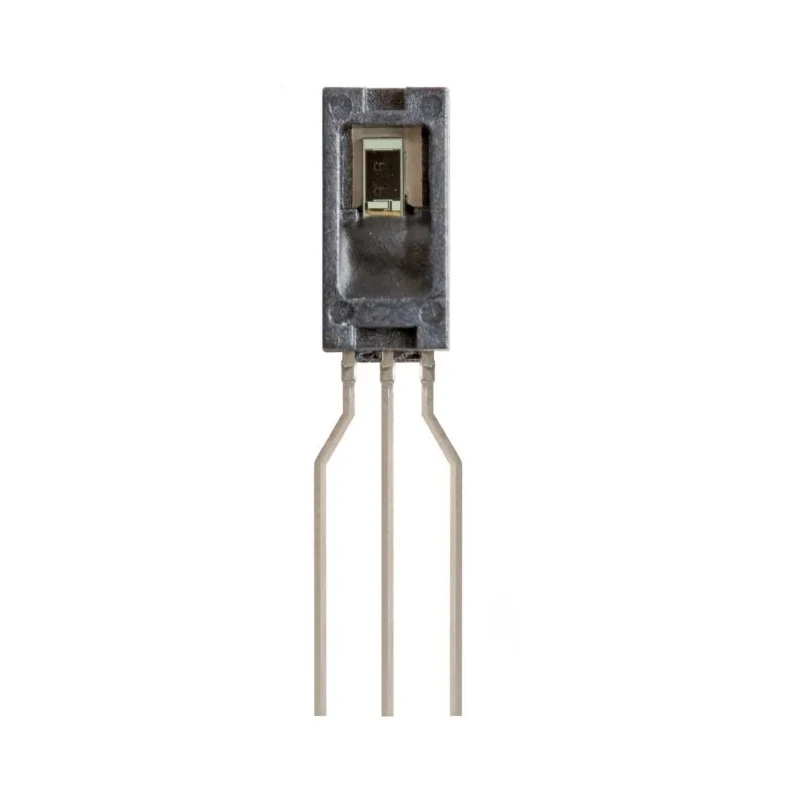

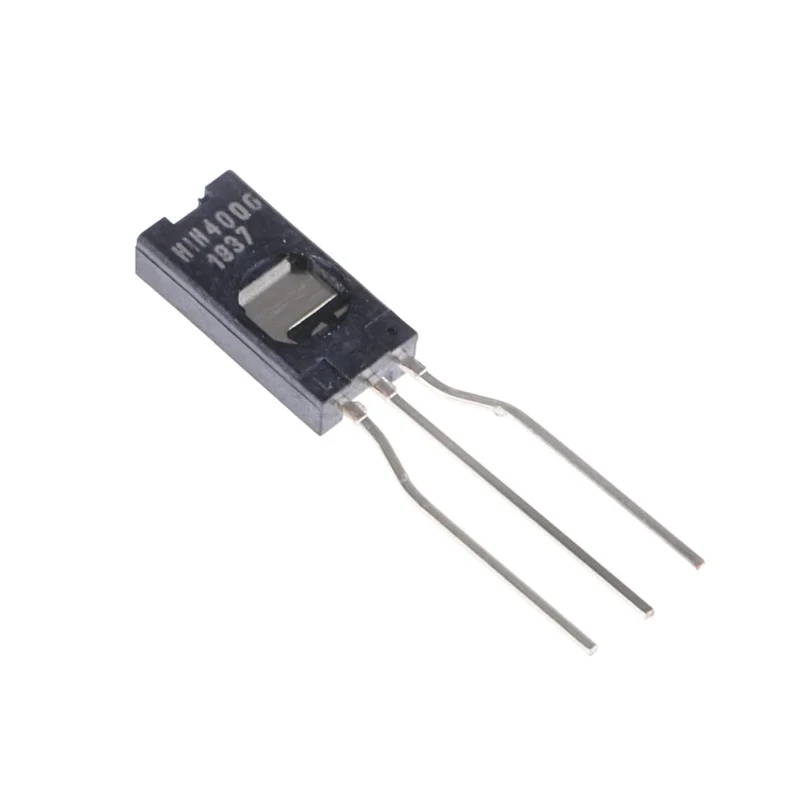

Honeywell Technologies Humidity Sensor HIH-4000-001 Analogue Output, Through Hole Mount, ±3.5 %RH, 3-Pin HIH-4000-001
Specifications
| Country of Origin | Mexico |
|---|---|
| Accuracy | ±3.5 %RH |
| Brand | Honeywell Technologies |
| Height | 2.03mm |
| Length | 21.66mm |
| Model | HIH-4000-001 |
| RH Range | 0 to 100 % |
| Width | 2.03mm |
| Mount Type | Through Hole |
| Output type | Analogue |
| Series | HIH-4000 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Sub Type | Humidity Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.8V |
| Minimum Supply Voltage | 4V |
| Sensor Gain | -4mV/°C |
| Honeywell Proximity SensorBrand | Honeywell |
Key Features
- Near linear voltage output simplifies direct interface to controllers.
- Low current draw of approximately 200 µA enables battery-powered system use.
- Moulded thermoset plastic housing ensures chemical resistance and durability.
- Operating temperature range from -40°C to 85°C supports varied environmental conditions.
- Humidity range spans 0 to 100 %RH for comprehensive ambient sensing.
- Compact SIP package with dimensions 21.66mm length and 2.03mm width and height.
- 3-pin through hole mount design facilitates easy PCB installation.
- Stable low drift and fast response time enhances measurement accuracy over time.
Product Description
Honeywell Technologies HIH-4000-001 analogue output humidity sensor features a through hole mount and precision sensing with ±3.5 %RH accuracy. The HIH-4000 series sensors provide near linear voltage output, making them suitable for direct connection to controllers or measurement devices.
This sensor comes enclosed in a moulded thermoset plastic housing which offers chemical resistance and mechanical durability. It operates over a wide temperature range of -40°C to 85°C and senses relative humidity from 0 to 100 %RH. The component has a compact SIP package measuring 21.66 mm in length and 2.03 mm in both width and height.
The 3-pin through hole design enables straightforward PCB mounting. The sensor maintains stable, low drift performance and offers fast response times, making it suitable for applications requiring reliable humidity measurements.
Near linear voltage output simplifies direct interface to controllers. Low current draw of approximately 200 µA enables battery-powered system use. Moulded thermoset plastic housing ensures chemical resistance and durability.
Operating temperature range from -40°C to 85°C supports varied environmental conditions. Humidity range spans 0 to 100 %RH for comprehensive ambient sensing. Compact SIP package with dimensions 21.66mm length and 2.03mm width and height.
3-pin through hole mount design facilitates easy PCB installation. Stable low drift and fast response time enhances measurement accuracy over time. Ideal for refrigeration, HVAC, medical, drying, meteorology, and other industrial applications.
Explore more temperature and Humidity Sensors and find reliable industrial electronics solutions in the Honeywell Technologies product line at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HIH-4000-001 humidity sensor has an accuracy of ±3.5 %RH.
This model senses relative humidity from 0 to 100 %RH.
It operates over a temperature range of -40°C to 85°C.
The sensor provides an analogue output, which simplifies direct connection to controllers or measurement devices.
The sensor has a compact SIP package measuring 21.66 mm in length and 2.03 mm in both width and height.
This model features a 3-pin through hole mount design for easy PCB installation.
The sensor has a low current draw of approximately 200 µA, making it suitable for battery-powered systems.
The sensor is enclosed in a moulded thermoset plastic housing, which provides chemical resistance and durability.
The maximum supply voltage for this sensor is 5.8V.
The minimum supply voltage for this model is 4V.
This sensor is suitable for applications in refrigeration, HVAC, medical, drying, meteorology, and other industrial settings.
The HIH-4000-001 is manufactured in Mexico.
