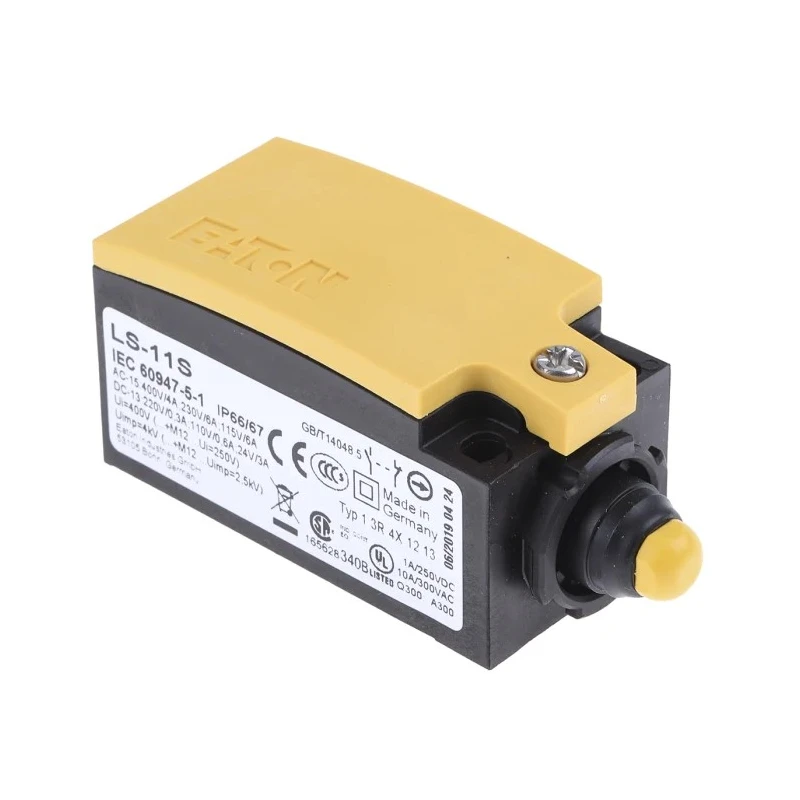

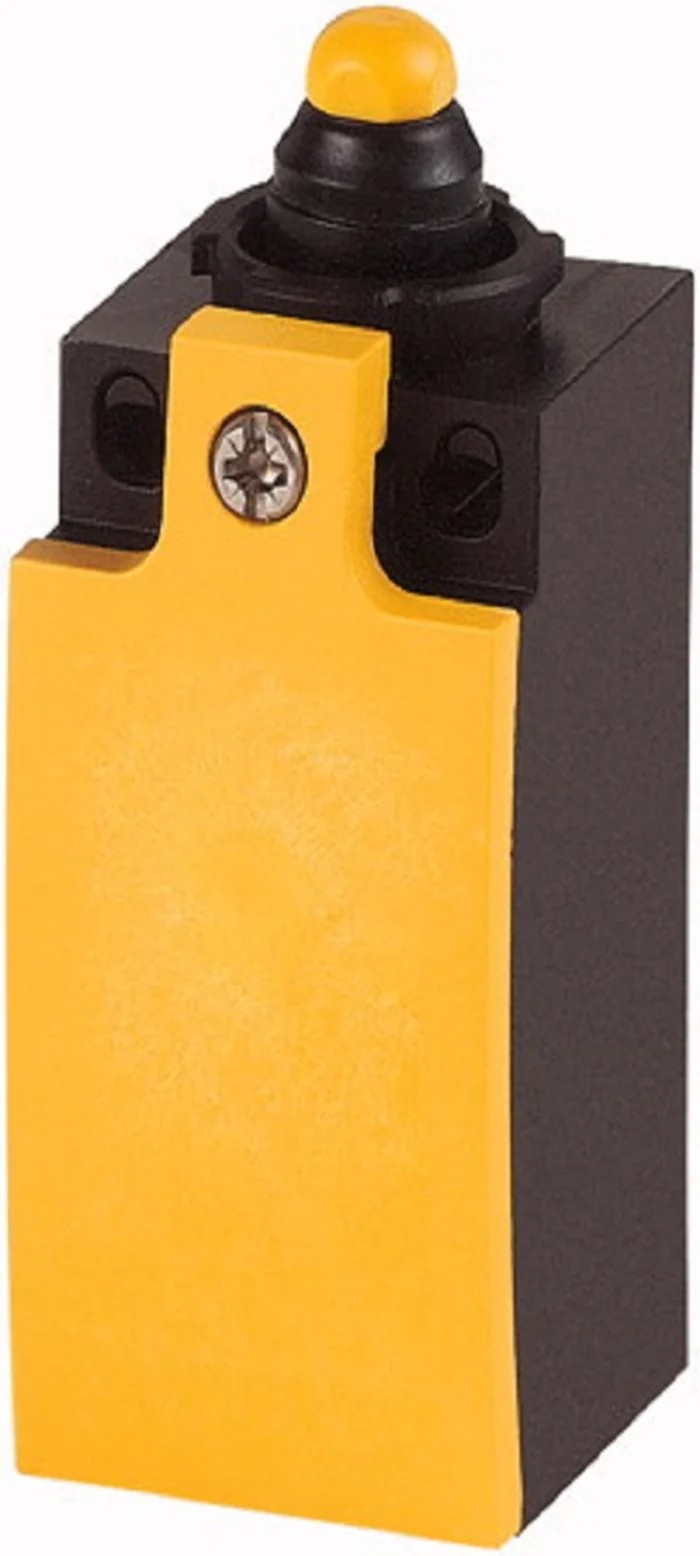

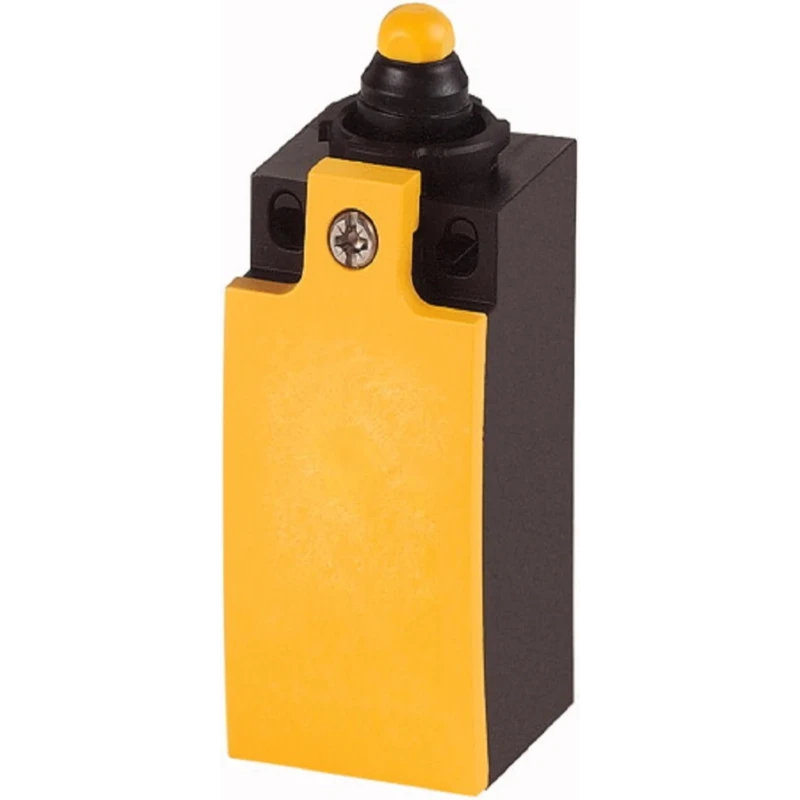

Eaton LS-Titan Series Plunger Limit Switch 1 NO/1 NC Plastic Housing IP67 IP66 415V AC 6A 266105 LS-11S

Eaton 266105 LS-11S Plunger Limit Switch is a high-quality industrial limit switch designed for precise position detection and control in various automation systems. Featuring a plunger actuator, this switch mechanically senses the presence or limit position of an object by actuating when the plunger is depressed. It supports a contact configuration of 1 Normally Open (NO) and 1 Normally Closed (NC), making it ideal for versatile electrical control applications.

Its tough plastic housing complies with IP66 and IP67 ingress protection ratings, providing excellent resistance against dust and water ingress, suitable for challenging industrial environments. This switch can handle switching currents up to 6 Amps and voltages of 415 Volts AC, as well as up to 220 Volts DC, making it adaptable for AC and DC applications.

The device supports a wide operating temperature range from -25°C to +70°C, ensuring reliable performance in various climate conditions. Its slow action type contacts and snap-action functionality help prevent arcing and false signalling, increasing control system reliability. The cage clamp terminals are designed for ease of installation and vibration resistance, allowing maintenance-free operation.

This limit switch offers a mechanical lifespan of 8 million cycles, highlighting its durability for continuous industrial use. With compact dimensions measured at approximately 33.5 mm length, 31 mm width, and 76.5 mm depth, it fits well into constrained mechanical assemblies.

Typical applications include machinery position control, assembly line automation, material handling, and equipment safety controls in industrial, manufacturing, and automation sectors. Manufactured to EN/IEC standards, it ensures consistent safety and operational compliance.

Plunger actuator type for accurate mechanical sensing. Robust IP67 and IP66 rated plastic housing. 1 NO/1 NC contact configuration allowing flexible circuit control. Supports 415V AC and 220V DC switching voltages. 6A switching current capacity.

Wide temperature operating range from -25°C to +70°C. Maintenance-free cage clamp terminals with vibration resistance. Mechanical life of 8,000,000 cycles ensures high durability. Certified to EN/IEC standards for safe use.
