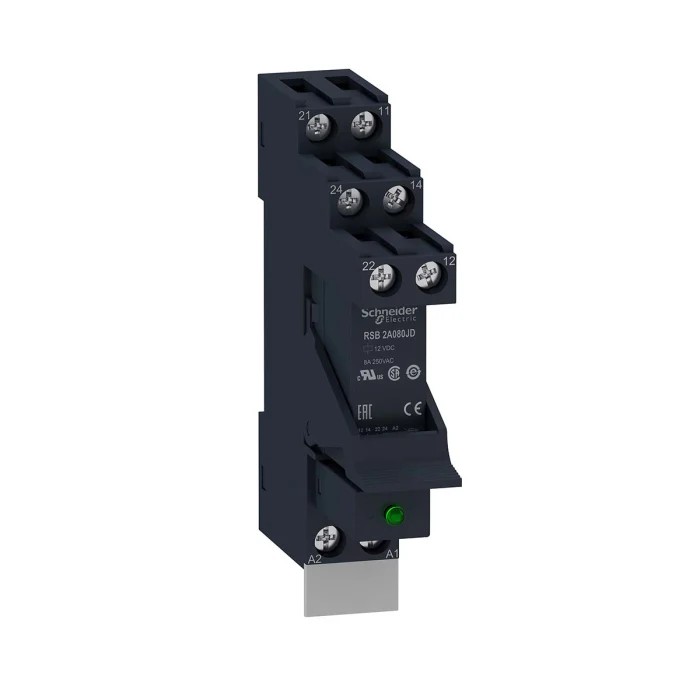

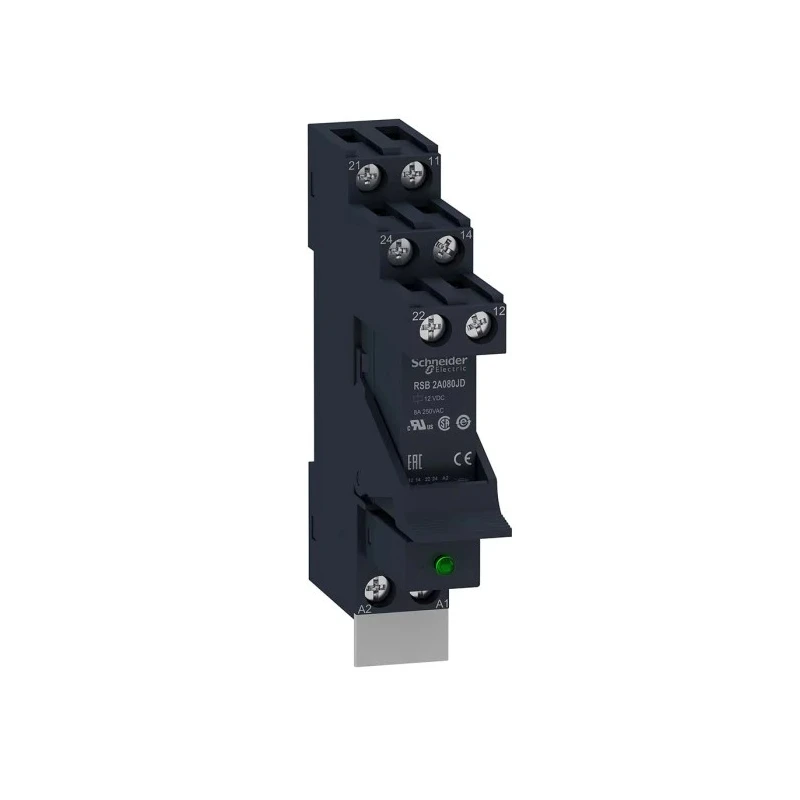

Schneider Electric Interface Relay Harmony Relay RSB Series, DIN Rail Mount, 12V dc Coil, DPDT RSB2A080JDPV
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 84.2mm |
| Length | 64.2mm |
| Model | RSB2A080JDPV |
| Width | 15.6mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RSB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 13.2V dc |
| Switching AC Voltage | 250V ac |
| Better World Claim | Designed for Disassembly |
Key Features
- The relay features DPDT contact arrangement with silver alloy contacts for reliable switching.
- It supports a switching current of up to 8A suitable for various control applications.
- Designed for DIN Rail mounting ensuring easy integration in electrical panels.
- Operating temperature ranges from -40°C to 85°C allowing use in demanding environments.
- Coil resistance is 360Ω and coil voltage is 12V dc for efficient actuation.
- Compact dimensions of 64.2mm length, 84.2mm height, and 15.6mm width save panel space.
- Certified under multiple standards including CE, UL, UL 508, RoHS, IEC 61984, and CSA ensuring compliance and safety.
- Product designed for disassembly supporting sustainable and eco-friendly practices.
Product Description
Schneider Electric RSB2A080JDPV Interface Relay from the Harmony Relay RSB Series is a high-quality electromechanical interface relay designed for reliable switching in industrial, automation, and electrical control applications. This DIN Rail mount relay features a 12V dc coil and double pole double throw (DPDT) contact configuration suitable for various control circuit requirements.
The relay coil has a resistance of 360Ω and operates at 12V dc, facilitating efficient performance with low power consumption. It supports a maximum switching current of 8A, handling both AC and DC voltages up to 250V ac and 13.2V dc respectively. The contact material is silver alloy, ensuring excellent conductivity and durability.
Designed to withstand harsh environments, this relay operates across a temperature range of -40°C to 85°C, making it suitable for diverse industrial and commercial settings including automation systems, electrical panels, manufacturing plants, and HVAC controls. Its compact dimensions (64.2mm by 84.2mm by 15.6mm) optimize space usage on the DIN Rail.
The product complies with multiple global standards including CE, UL, UL 508, RoHS, IEC 61984, CSA, EN/IEC 61810-1, REACH, and EAC certifications, ensuring high safety, environmental, and quality standards. It is a Better World Product designed for disassembly, highlighting its sustainability and environmental consideration.
Originating from China, this Schneider Electric Harmony Relay is new and ready to be deployed in commercial, industrial, laboratory, and manufacturing automation applications for dependable interface relay functionality.
The relay features DPDT contact arrangement with silver alloy contacts for reliable switching. Supports switching current up to 8A suitable for control applications. DIN Rail mounting facilitates installation in electrical enclosures.
Operates between -40°C and 85°C for wide environmental tolerance. Coil resistance 360Ω and coil voltage 12V dc for efficient operation. Compact size of 64.2mm length, 84.2mm height, and 15.6mm width. Complies with CE, UL, RoHS, IEC, CSA and other safety standards.
Designed for disassembly supporting sustainable practices. Explore more Schneider Electric products or browse the Interface Relay category on EnvMart for a broad selection of electrical and automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, suitable for various control circuit requirements.
It supports a maximum switching current of 8A, making it suitable for control applications in various environments.
The relay operates with a coil voltage of 12V dc and has a coil resistance of 360Ω for efficient actuation.
The relay has compact dimensions of 64.2mm in length, 84.2mm in height, and 15.6mm in width, optimizing space on the DIN Rail.
It operates effectively within a temperature range of -40°C to 85°C, suitable for demanding environments.
This model is designed for DIN Rail mounting, facilitating easy installation in electrical panels.
The relay features silver alloy contacts, which ensure reliable switching and conductivity.
It can handle AC voltages up to 250V and DC voltages up to 13.2V, making it versatile for various applications.
This relay complies with multiple standards including CE, UL, RoHS, IEC 61984, and CSA, ensuring safety and environmental compliance.
Yes, it is designed for disassembly, supporting sustainable and eco-friendly practices.
It is suitable for industrial, automation, and electrical control applications, including HVAC controls and manufacturing plants.
This relay is part of the Harmony Relay RSB Series from Schneider Electric, known for reliable electromechanical performance.
