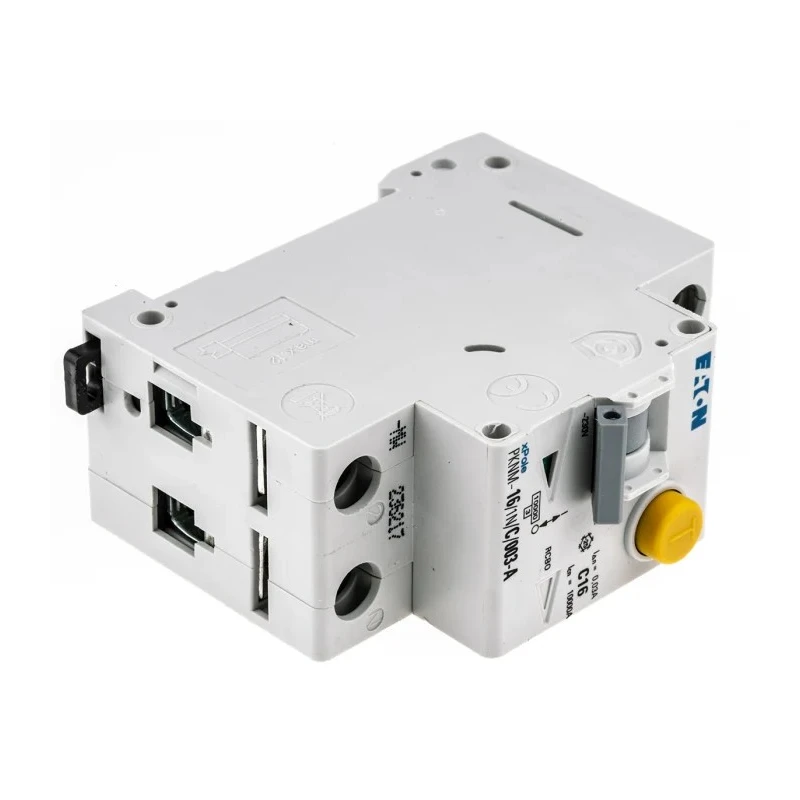

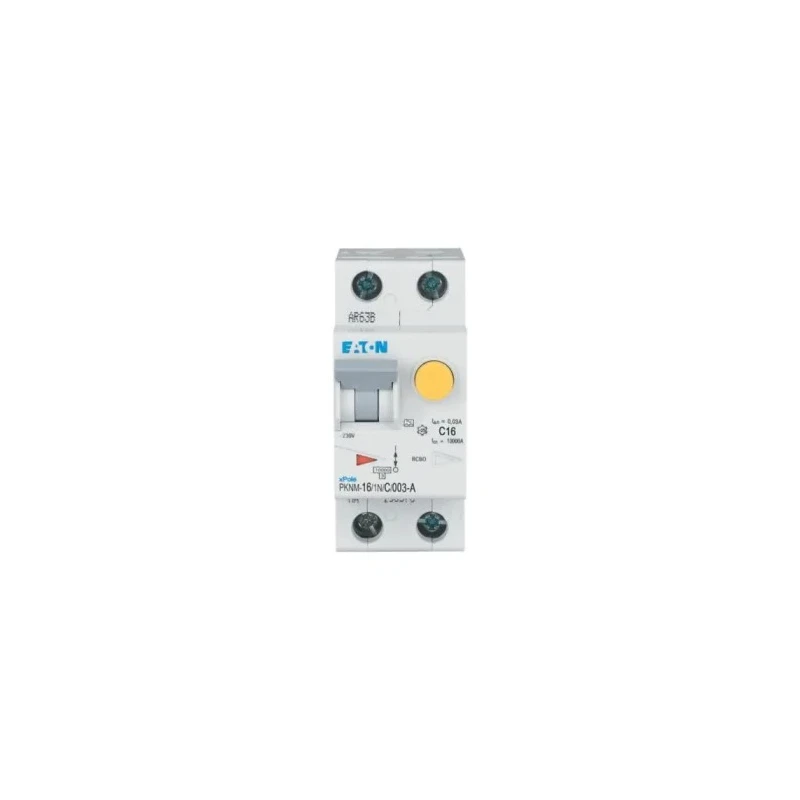

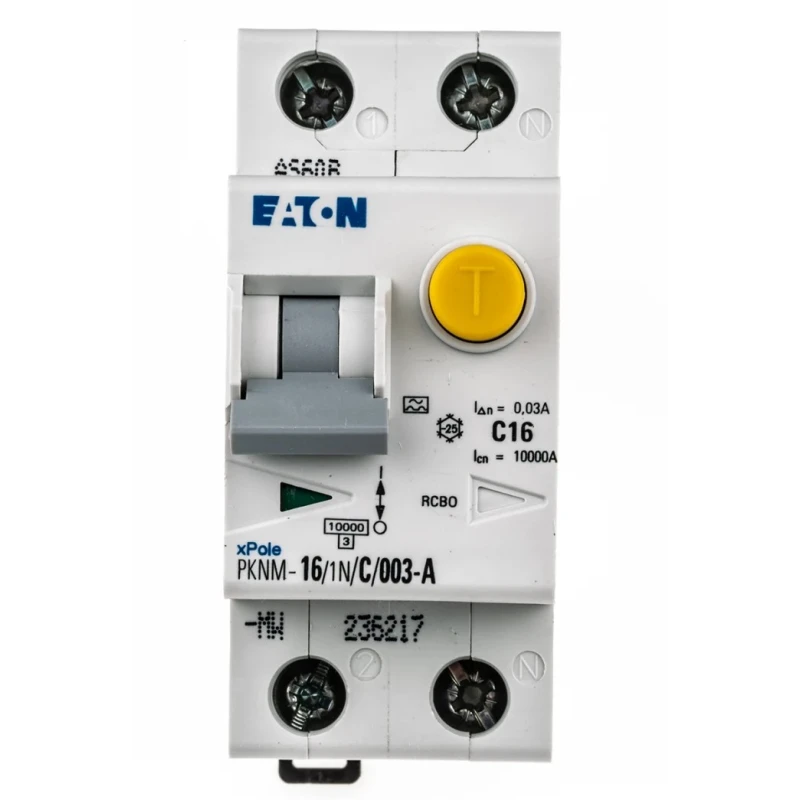

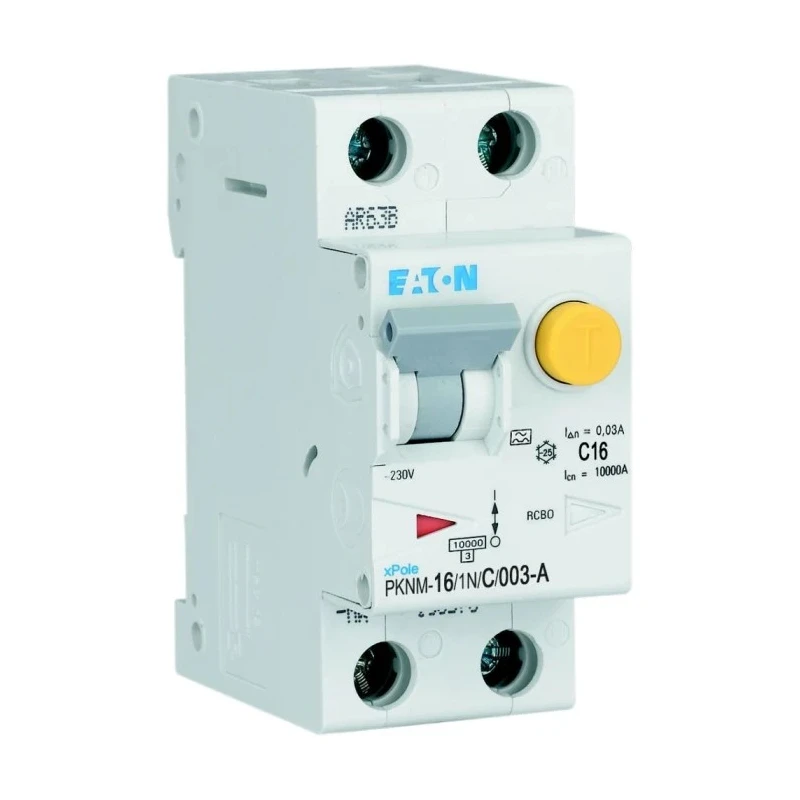

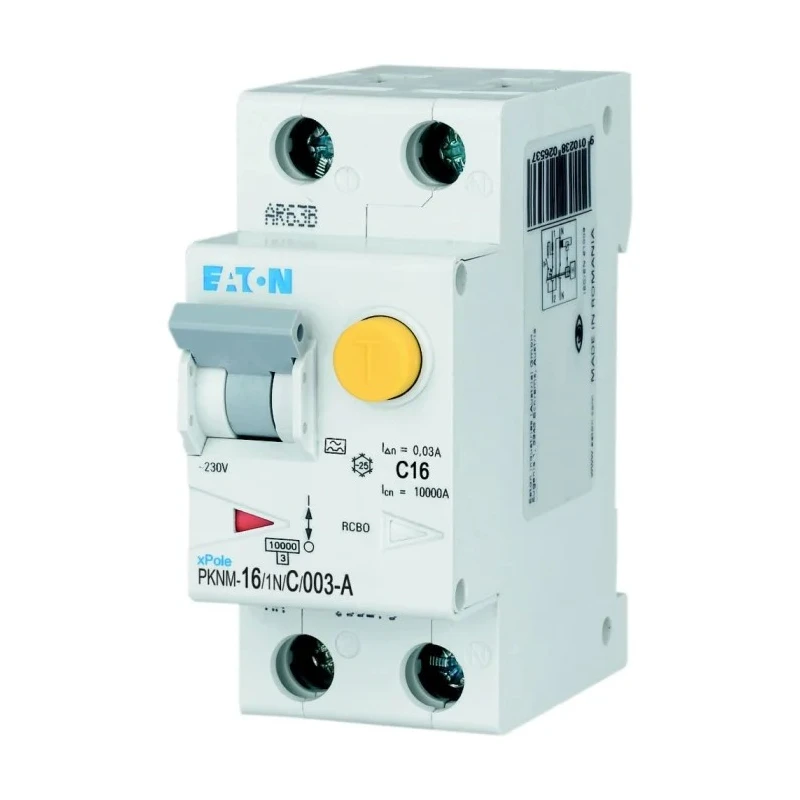

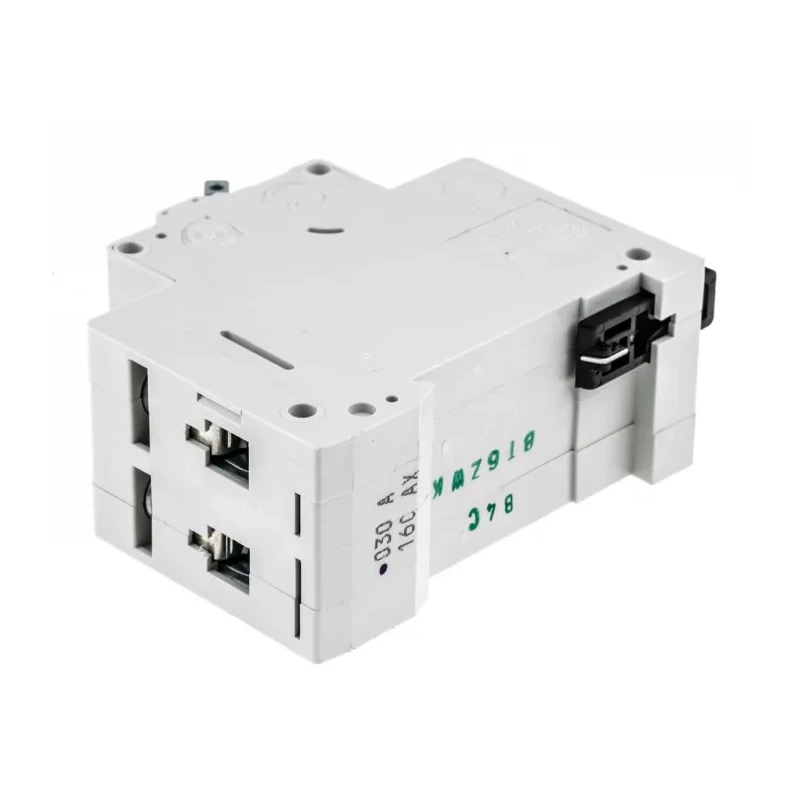

Eaton Residual Current Device PKNM Series 16A 2-Pole 30mA Type C 10kA 230V AC 236217 PKNM-16/1N/C/003-A-MW

Free Delivery in India | Lowest Global Shipping Charges

Eaton Residual Current Device PKNM Series 16A 2-Pole 30mA Type C 10kA 230V AC 236217 PKNM-16/1N/C/003-A-MW

Name: Eaton Residual Current Device PKNM Series 16A 2-Pole 30mA Type C 10kA 230V AC 236217 PKNM-16/1N/C/003-A-MW
Brand: Eaton
SKU: 276208
Price: 175.65 USD
Availability: InStock



Category Residual Current Device Brand Eaton Condition New

Specifications

Country of Origin	Romania
Range	PKNM
Brand	Eaton
Height	80mm
Model	236217 PKNM-16/1N/C/003-A-MW
Depth	70.5mm
Width	70mm
Mount Type	DIN Rail
Current Rating	16A
Series	PKNM
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	2
Standards/Approvals	IEC/EN 61008
Rated AC Voltage	230V ac
Tripping Characteristics	Type C
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous

Key Features

This device features a 16 amp current rating for handling standard residential and commercial electrical loads.
Equipped with 30 mA trip sensitivity to detect earth leakage for enhanced safety.
Compact dimensions of 80mm height, 70mm width, and 70.5mm depth allow for easy DIN rail mounting.
Designed with Type C tripping characteristics suitable for inductive loads such as motors.
Breaking capacity of 10 kiloamperes ensures robust fault clearing capability.
Toggle switch reset type actuator provides convenient manual control.
Screw terminals support wiring from 1 to 25mm² for versatile installation.
Operating AC voltage rating of 230 volts perfect for residential and commercial power systems.

Product Description

Eaton 236217 PKNM-16/1N/C/003-A-MW Residual Current Device is a reliable safety switch designed for commercial and residential electrical circuit protection. Rated at 16A and 230V AC, this device combines quick tripping and overload protection in a compact DIN rail mountable format.

This PKNM series unit features a 2-pole configuration and Type C tripping characteristics making it well-suited for inductive loads including motors and transformers. The 30 mA trip sensitivity provides effective leakage current detection minimizing electric shock risk.

Manufactured in Romania, it complies with IEC/EN 61008 standards and supports screw type terminals accepting wiring sizes from 1 to 25 mm². Its breaking capacity of 10 kA and instantaneous break time ensure fast and safe fault interruption.

16 amp current rating handles typical circuit loads safely. Type C trip curve offers protection against moderate surges typical in industrial environments. Toggle switch actuator allows easy manual reset after tripping events.

Compact at 80mm height, 70mm width, and 70.5mm depth for space-saving installation. DIN rail mounting clip provides simple installation and removal. Red and green indicators show contact position clearly. IP20 rated for finger-safe operation avoiding electrical shock risks.

This residual current device is ideally implemented in industrial, commercial, and residential electrical distribution systems to prevent damage and enhance user safety. It is particularly useful where electric motor loads are present and leakage detection is critical.

Explore Eaton's range of high-quality circuit protection devices and ensure your installations meet the highest safety standards with products like the PKNM Series Residual Current Device.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 16A, suitable for handling standard residential and commercial electrical loads.

It features a trip sensitivity of 30mA, which is designed to detect earth leakage and enhance safety.

The breaking capacity of this device is 10kA, ensuring robust fault clearing capability.

It is designed with Type C tripping characteristics, which are suitable for inductive loads such as motors.

The dimensions are 80mm in height, 70mm in width, and 70.5mm in depth, allowing for compact installation.

It is designed for DIN rail mounting, which simplifies installation and removal.

The rated AC voltage for this residual current device is 230V, making it suitable for residential and commercial power systems.

It features screw type terminals that support wiring sizes from 1 to 25mm², providing versatile installation options.

It complies with IEC/EN 61008 standards, which ensures it meets safety and performance requirements.

The reset actuator type is a toggle switch, allowing for convenient manual control after tripping events.

This model is manufactured in Romania, ensuring compliance with international standards.

It is ideally implemented in industrial, commercial, and residential electrical distribution systems, especially where electric motor loads are present.
