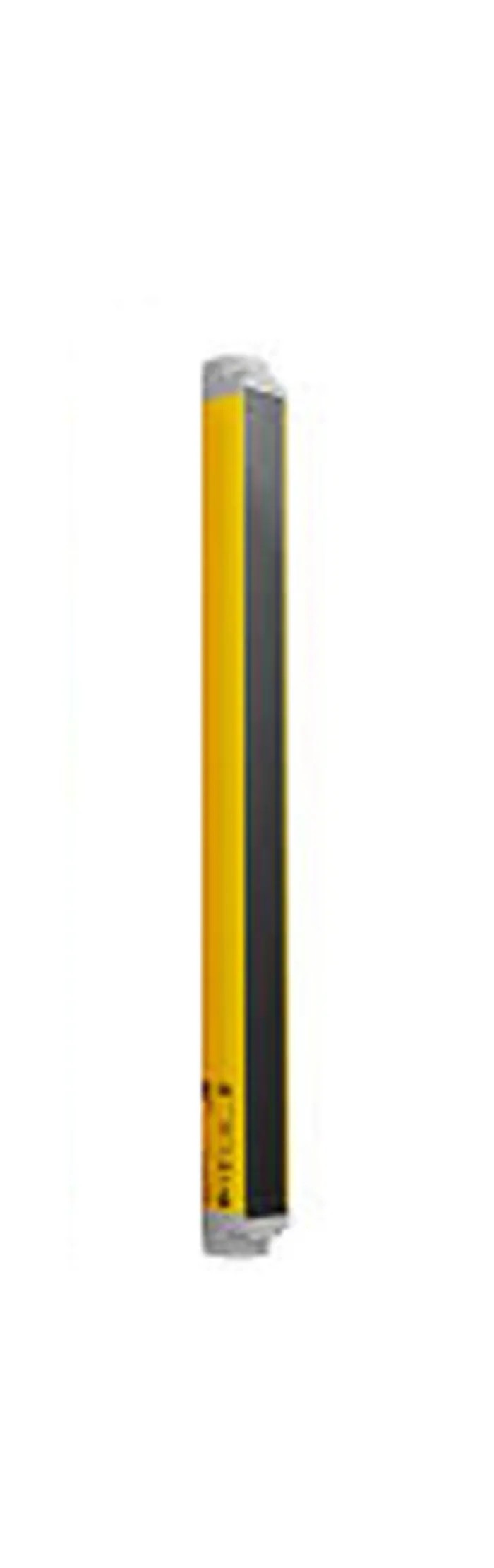

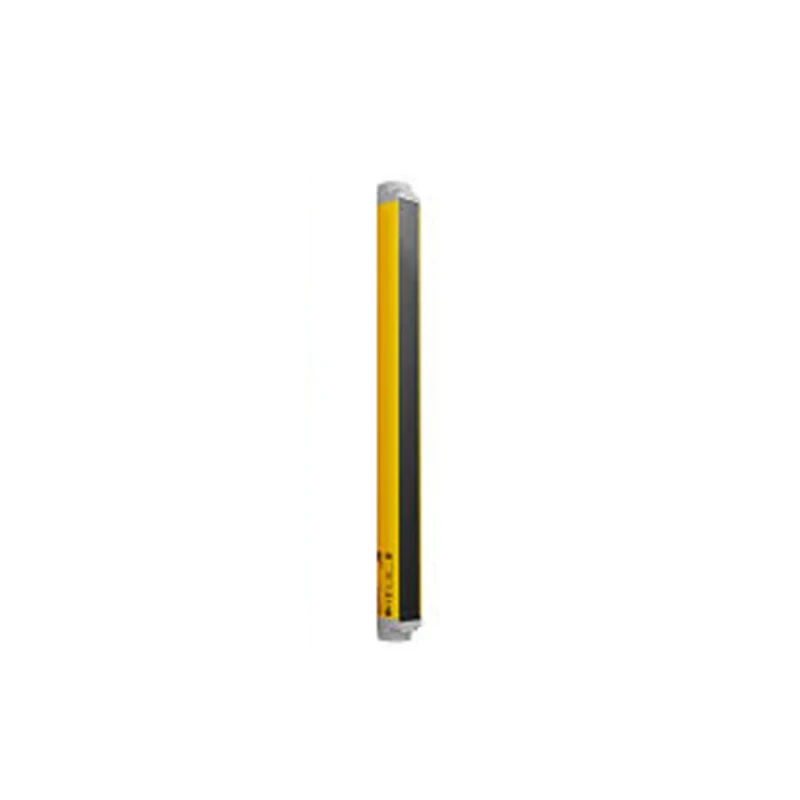

ABB Light Curtain Passive Part, 4 Beam(s), Safety Type 4, Protective Height 900mm, Terminal 2TLA022306R1300 Orion3-4-M2C-090

ABB 2TLA022306R1300 Orion3-4-M2C-090 Light Curtain Passive Part is a critical safety component designed to detect bodies by using four light beams. It operates as a passive reflector unit within the ABB Orion3 Light Grid system, complementing the active unit which contains the transmitter and receiver.

This passive unit reduces cabling requirements significantly, as it does not need direct power or data connection, relying instead on reflected beams to maintain precise sensing capabilities. Its compact dimensions of 980.5mm length, 56.9mm height, and 52mm width fit well into industrial safety setups.

The product features an 8-pin M12 terminal connector, simplifying installation and maintenance. It delivers protection over a 900mm high safety area with a maximum width of 65mm, enabling efficient perimeter and access guarding in industrial environments.

Protected under the highest safety category Type 4, it complies with stringent standards such as EN ISO 13849-1:2008 PL e, Cat 4, EN 61508 SIL3, and EN 62061 SIL CL 3, which ensures reliable operation in hazardous production areas. The passive part is suitable for applications requiring sturdy profiles and when power availability is limited to one side only.

This model also facilitates direct connection of a local reset button without additional cables to the electrical cabinet or the need for extra control modules, improving safety system usability.

ABB's Orion3 range with this passive part enhances alignment via rotation brackets and displays alignment levels on the unit itself to predict and prevent unwanted stops, thereby reducing downtime.

The protective height is 900mm, providing extensive coverage. Maximum protective width is 65mm for precise sensing. Minimum scanning distance is 0.5m with maximum up to 8m. Equipped with 8-Pin M12 terminals for quick cabling.

Compact dimensions of 980.5mm length, 56.9mm height, and 52mm width. Includes local reset functionality without extra control modules. Sturdy profile suitable for industrial perimeter and access guarding. Operates under multiple safety standards including EN ISO 13849-1:2008 PL e, Cat 4 and SIL3 certifications.

Designed in Italy ensuring high-quality manufacturing standards.

Ideal for industrial, automation, manufacturing, and safety-critical applications, this ABB passive light curtain part improves protection reliability while simplifying installation and maintenance tasks. Explore additional ABB safety products and light curtains to enhance your setup.
