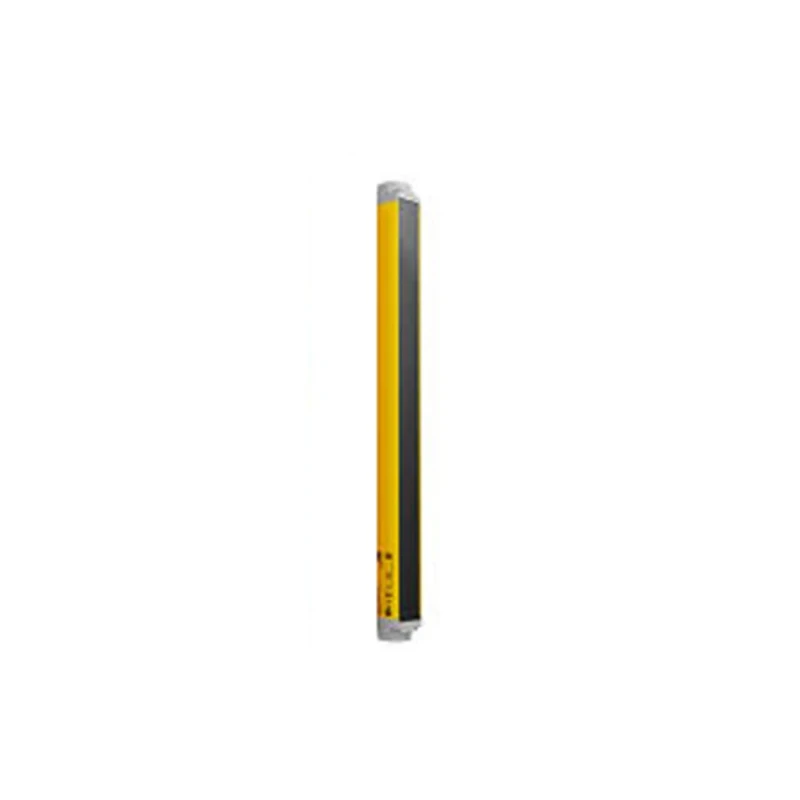

ABB Light Curtain Passive Part with 4 Beams, 1200mm Protective Height, 8m Max Scanning 2TLA022306R1400 Orion3-4-M2C-120

Free Delivery in India | Lowest Global Shipping Charges

ABB Light Curtain Passive Part with 4 Beams, 1200mm Protective Height, 8m Max Scanning 2TLA022306R1400 Orion3-4-M2C-120



Category Safety Light Curtain Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	56.9mm
Length	1.281m
Model	2TLA022306R1400 Orion3-4-M2C-120
Number of Beams	4
Width	52mm
Terminal type	8-Pin M12
Component Type	Passive Part
Standards/Approvals	e
Safety Type	4
Protective Height	1200mm
Maximum Protective Width	65mm
Minimum Scanning Distance	0.5m
Maximum Scanning Distance	8m
EN ISO 13849-1	2008 PL e, Cat 4
EN 61508-1..4	2010 SIL3
EN 62061	2005/A1:2013 SIL CL 3
A local reset button can be connected directly to the light grid	no need for cable between the reset button and the electrical cabinet or for an extra control module

Key Features

Passive part reduces cabling as it requires no power connection.
Includes 8-Pin M12 terminal for secure connections.
Supports local reset button connection without extra cabling.
Complies with EN ISO 13849-1 (PL e, Cat 4) and SIL3 safety standards.
Sturdy profile suitable for perimeter and access guarding.
Protective width maximum of 65mm for precise safety coverage.
Minimum scanning distance of 0.5 meters for effective detection.
Compact dimensions with height 56.9mm, length 1.281m, and width 52mm.

Product Description

ABB 2TLA022306R1400 Orion3-4-M2C-120 Light Curtain Passive Part is designed as part of the Orion3 safety light grid system, combining transmitter and receiver in a single active unit with passive mirrors reflecting beams to minimize wiring complexity. This passive part supports 4 beams, offering a protective height of 1200mm and effective body detection in industrial and automated environments.

Its 8-Pin M12 terminal connector facilitates quick and reliable electrical connections, while the robust profile ensures durability in stringent industrial applications. The unit allows direct connection of a local reset button, eliminating the need for cable runs to electrical cabinets or control modules. Compliance with EN ISO 13849-1 PL e Category 4, EN 61508 SIL3 and EN 62061 SIL CL 3 standards ensures reliable safety functions suitable for perimeter and access guarding in manufacturing, automation, and other industrial sectors.

The device supports a maximum scanning distance of 8 meters and a minimum scanning distance of 0.5 meters, providing tailored safety coverage. Its compact form factor - 56.9mm height, 1.281m length, and 52mm width - allows versatile installation options. Manufactured in Italy, the product reflects stringent quality and safety norms.

Passive part reduces cabling requirements by reflecting beams without connection. Supports up to 4 beams for effective body detection. Local reset button connectivity simplifies installation. Robust construction withstands industrial environments.

Complies with multiple international safety standards. Compact size enables flexible mounting options. Ideal for perimeter and access guarding applications. Enables cost-efficient installation with fewer cables. Designed for use where power is available only on one side.

This ABB light curtain component is integral to industrial safety systems and automation lines, assuring operator protection and machine safety in compliance with advanced safety regulations. For more solutions, explore EnvMart’s comprehensive Safety Light Curtains category.
