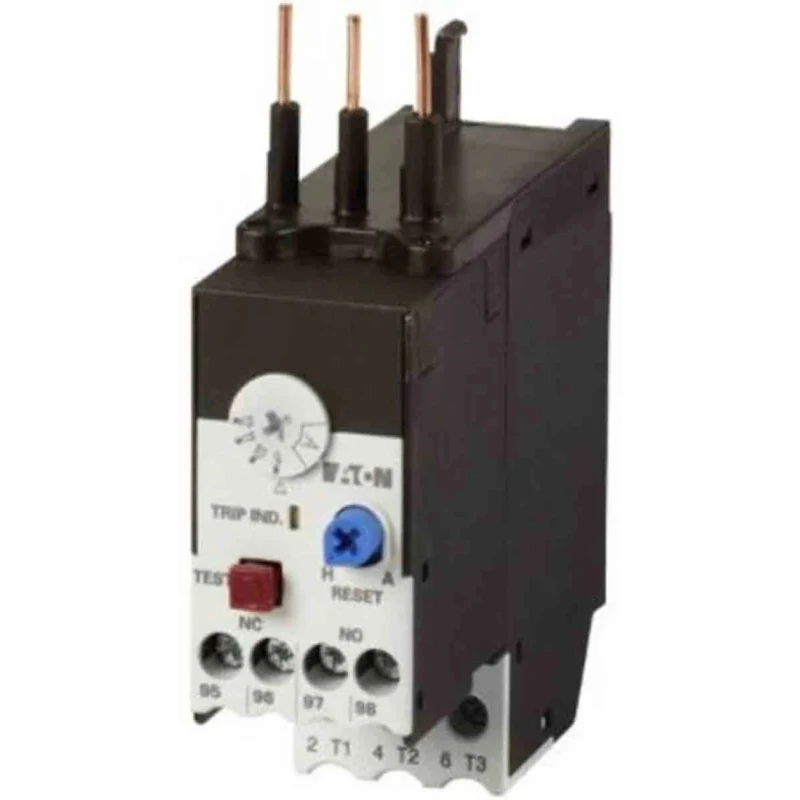

Eaton ZBT Overload Relay 1 NO/1 NC, 0.1A - 0.16A F.L.C, 160mA Contact Rating, 60 W, 690V AC 190959 ZBT12-0,16

Eaton 190959 ZBT12-0,16 thermal overload relay delivers precise overload protection for motors in industrial automation and control systems. It features a 1 pole (1P) design with one normally open (NO) and one normally closed (NC) auxiliary contact, adjustable current settings between 0.1 to 0.16 amperes full load current (FLC), and a power rating of 60 watts. The control voltage rating is 690V AC, ensuring compatibility with a wide range of industrial control circuits.

Designed for direct mounting, the relay incorporates screw terminals for reliable wiring connections. It is constructed to operate efficiently within a temperature range of -25°C to 55°C and provides an ingress protection rating of IP20, assuring protection against solid objects and access to hazardous parts. The compact ZBT12 frame size allows easy integration into control panels with dimensions of 97mm length, 27mm width, and 87.5mm depth.

Compliant with international standards GB14048 and IEC/EN 60947, this thermal overload relay ensures high reliability and safety in motor protection applications. It is suitable for a variety of industrial environments including manufacturing plants, HVAC systems, and automation machinery. The unit includes features such as a test/off button, manual or automatic reset pushbutton, and trip-free release mechanism for added operational safety and convenience.

Designed for motor overload protection with adjustable current range. Compact and durable ZBT12 frame size. High contact rating supporting 160 mA relay contact current. Temperature operation range from -25°C to 55°C for versatility.

Compliance with IEC/EN 60947 and GB14048 standards. IP20 rated for protection against solid ingress. Screw terminal type ensures secure electrical connections. Direct mounting facilitates easy installation. Applicable in industrial automation, manufacturing, and HVAC systems.

This Eaton ZBT overload relay provides efficient thermal protection ensuring motor longevity and safety in demanding electrical installations. Explore the Electronics & Electricals > Relays & Contactors > Overload Relay category at EnvMart for this and similar high-quality industrial control devices.
