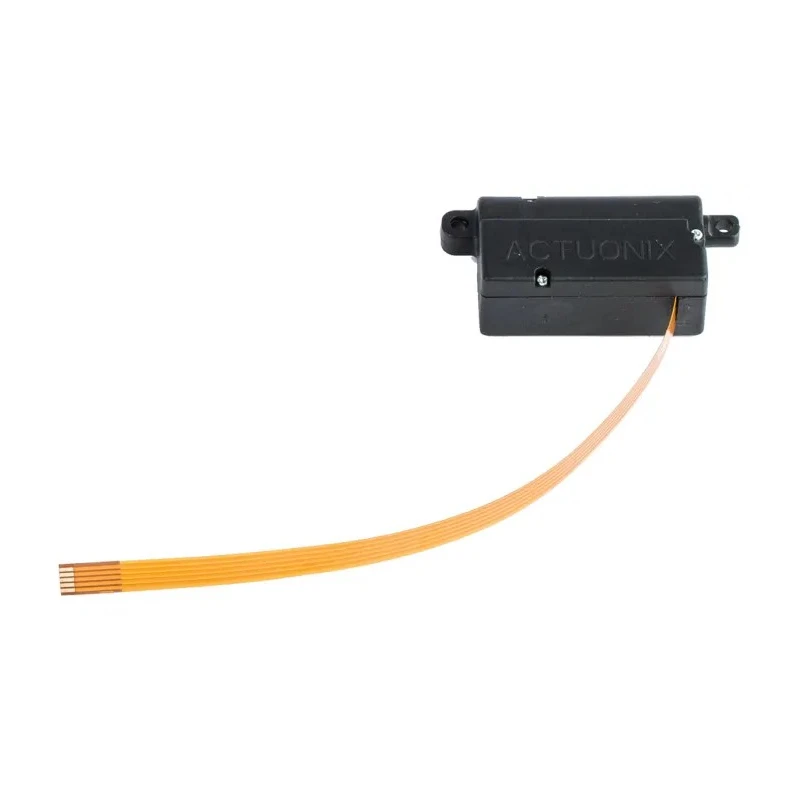

Actuonix Electrical Linear Actuator 20 mm Stroke Length 12V 28mm/s Speed PQ12-30-12-P

The Actuonix PQ12-30-12-P electrical linear actuator offers a miniature and compact solution for precise linear motion with a stroke length of 20 mm and a maximum speed of 28 mm per second. Operating at 12 volts DC, this actuator is designed to deliver a maximum force of 18 newtons, providing equal push and pull forces suitable for diverse industrial and consumer applications.

Featuring an IP54 rating, the actuator is protected against dust ingress and water splashes, making it reliable in various environmental conditions. It operates efficiently within a temperature range from -10°C to 50°C, supporting use in both cold and warm environments.

Its compact size and lightweight design (15 grams) allow easy integration into robotics, automotive components, consumer appliances, toys, and industrial automation systems. The actuator provides precise position feedback suitable for sophisticated control systems and motion-enabled projects.

Control is straightforward: applying a DC voltage extends the actuator, with reversing polarity causing retraction. The PQ12 series offers variants with potentiometer position feedback and end-of-stroke limit switch options to enhance control and safety for specific requirements.

The duty cycle is rated at 20%, ensuring the actuator can handle intermittent operations without overheating. Its robust construction supports stable performance under frequent mechanical load cycles.

Miniature actuator size for compact installations. Precise and simple position feedback control. IP54 protected against dust and water splashes. Wide operating temperature range from -10°C to 50°C. Maximum force of 18N with balanced push and pull capabilities.

Lightweight and easy to mount in diverse applications. Duty cycle ensures reliable intermittent use. Suitable for robotics, automotive, toys, and industrial automation. Options for potentiometer feedback and limit switches available.

Actuonix's PQ12 series linear actuators meet a high standard of reliability and precision for modern motion-controlled designs in industrial, laboratory, and commercial settings. Explore more products in the Electric Linear Actuators category on EnvMart for your automation needs.
