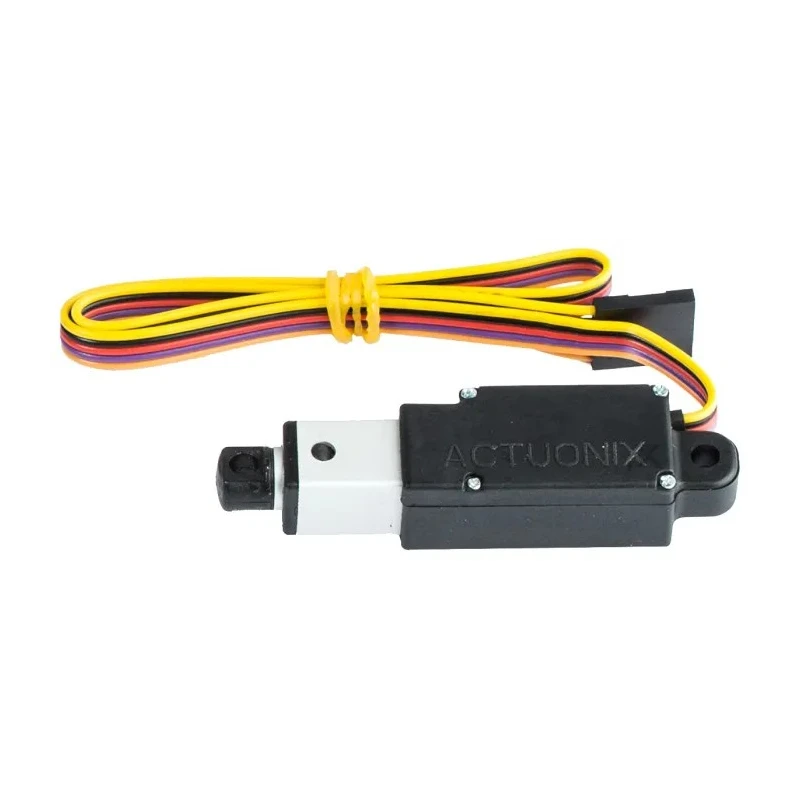

Actuonix Electrical Linear Actuator 10 mm Stroke 12V 6.5mm/s Speed L12-10-210-12-S

Actuonix L12-10-210-12-S Electrical Linear Actuator is a miniature actuator designed for precise linear motion with a 10 mm stroke length and 12V power supply. This compact actuator moves at a speed of 6.5 mm/s and features integrated end-of-stroke limit switches to ensure safety and prevent motor damage by cutting power 0.5 mm before reaching stroke limits.

Constructed with a strong axial drive and a rectangular cross-section for increased rigidity, the L12-S series offers a reliable, compact solution for applications requiring precise push and pull forces. It is rated IP54, protecting against dust and water splashes, and is suitable for operation in temperatures ranging from -10°C to 50°C.

The actuator provides a maximum force of 80 Newtons and operates optimally at a 20% duty cycle, making it well-suited for intermittent actuation tasks. With its miniature form factor and low weight of 56 grams, it integrates seamlessly into robotics, consumer appliances, RC vehicles, automotive mechanisms, and various industrial automation systems.

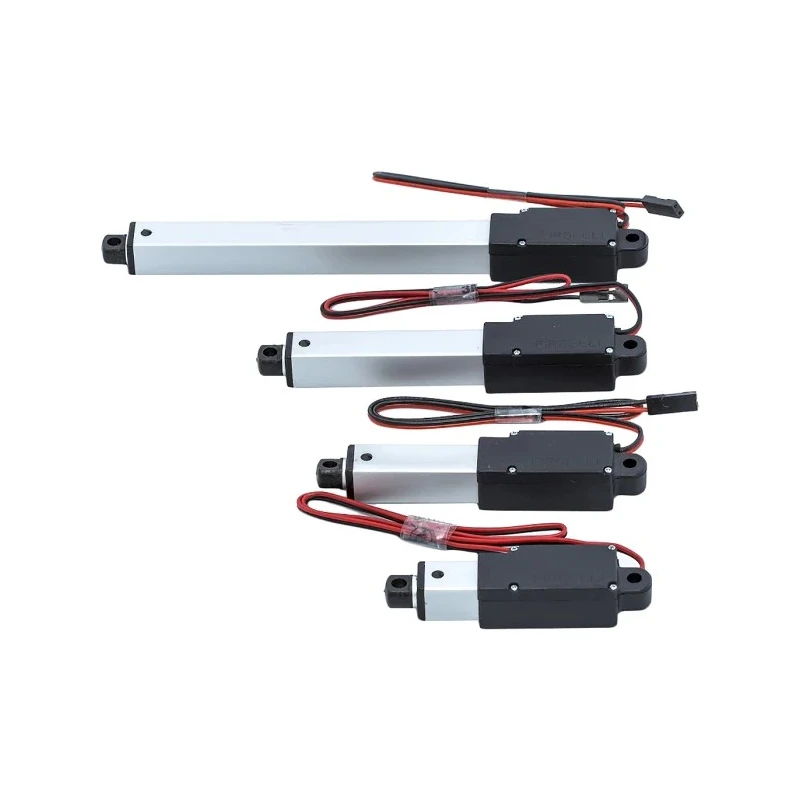

The L12 series simplifies designs by replacing bulky gears, motors, and linkages with a compact, easily mountable linear actuator. Its end-of-stroke switches enhance durability by preventing overdriving. While the L12-S model includes limit switches, it is not compatible with the LAC control board. For applications requiring position feedback, the L12-P variant offers potentiometer feedback for use with external controllers.

Compact miniature actuator with a 10 mm stroke length. Operates at 12 volts DC with a maximum speed of 6.5 mm per second. Equipped with end-of-stroke limit switches for motor protection. Features an IP54 rating for dust and water resistance.

Designed for a 20% duty cycle suitable for intermittent operation. Delivers a maximum force of 80 Newtons for varied actuation tasks. Robust axial design with a rectangular cross-section for enhanced rigidity. Operates reliably within temperatures from -10°C to 50°C.

Lightweight at 56 grams, enabling easy integration into compact systems. Ideal for robotics, consumer appliances, industrial automation, and automotive applications.

This actuator is manufactured in China and supplied in new condition. It serves industrial, commercial, laboratory, robotics, and automotive automation use cases where precise and compact linear motion is required.
