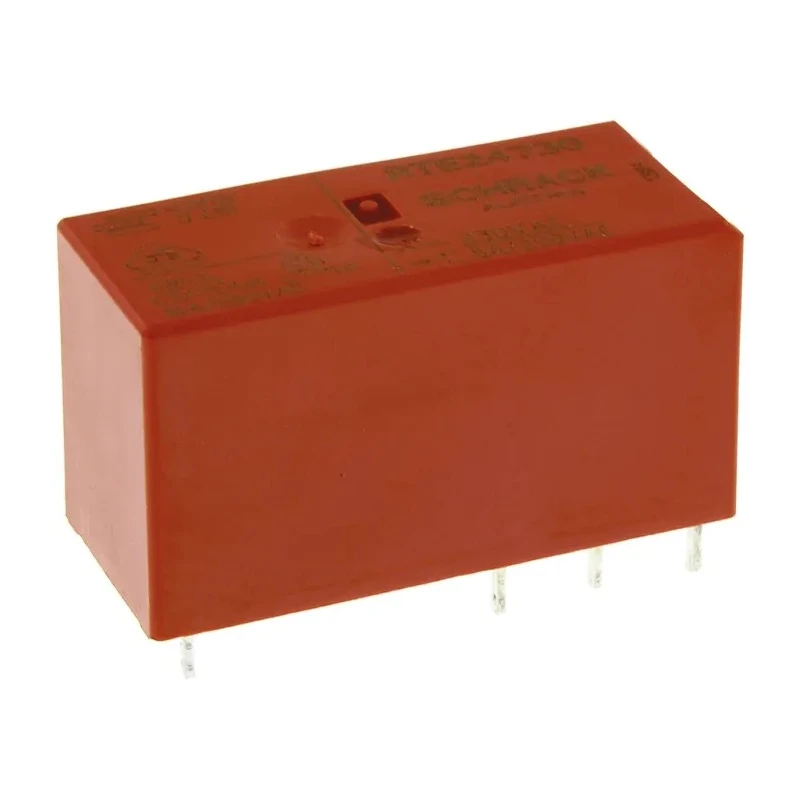

TE Connectivity PCB Non-Latching Relay 230V ac Coil 8A Switching Current DPDT RTE24730

TE Connectivity RTE24730 is a high-quality PCB Non-Latching Relay designed for demanding electrical and automation applications requiring reliable switching performance with low maintenance.

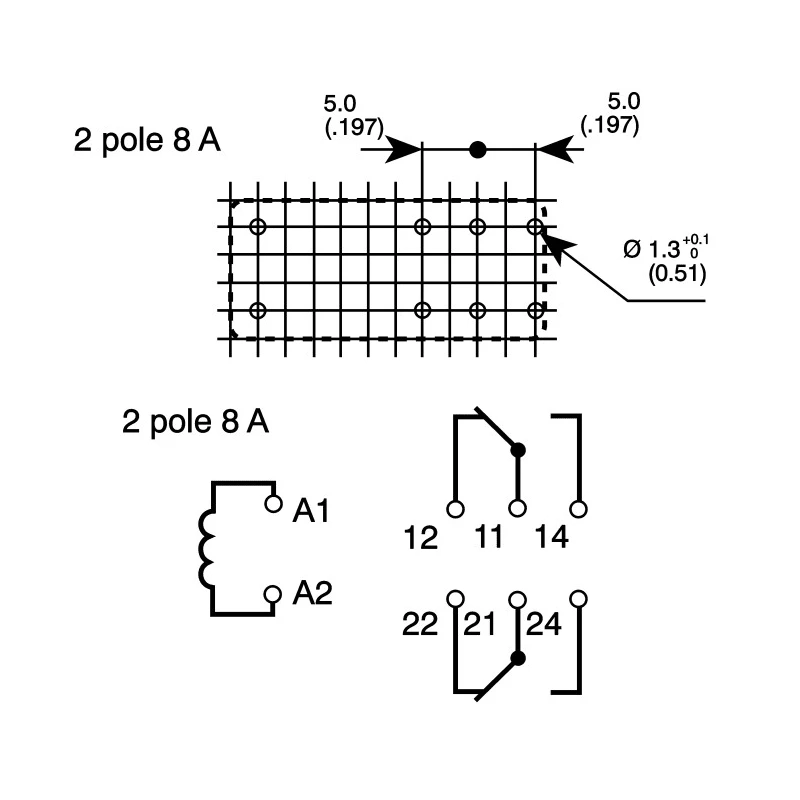

This relay features a coil voltage of 230V AC and DPDT (Double Pole Double Throw) contact configuration that provides versatile switching capabilities. It supports a switching current of up to 8A and a switching AC voltage rating of 400V AC, making it suitable for power relay duties in interface controls, domestic automation, security lighting, and heating systems.

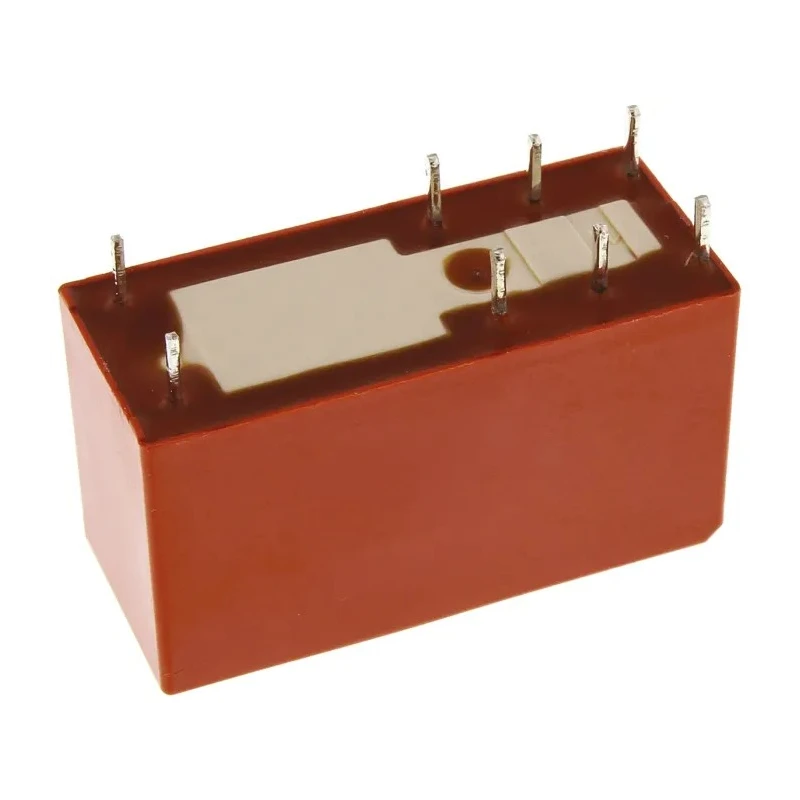

The relay mount type is PCB with solder terminals, facilitating secure and compact circuit integration. It operates efficiently within a temperature range of -40°C to 70°C, ensuring dependable functionality in diverse environmental conditions. The coil resistance of 32.5kΩ and coil power consumption of 0.74VA optimize its power requirements.

Constructed with silver nickel alloy contacts, it delivers excellent conductivity and long service life. The relay is compliant with international standards including VDE and cULus, emphasizing its safety and quality assurance.

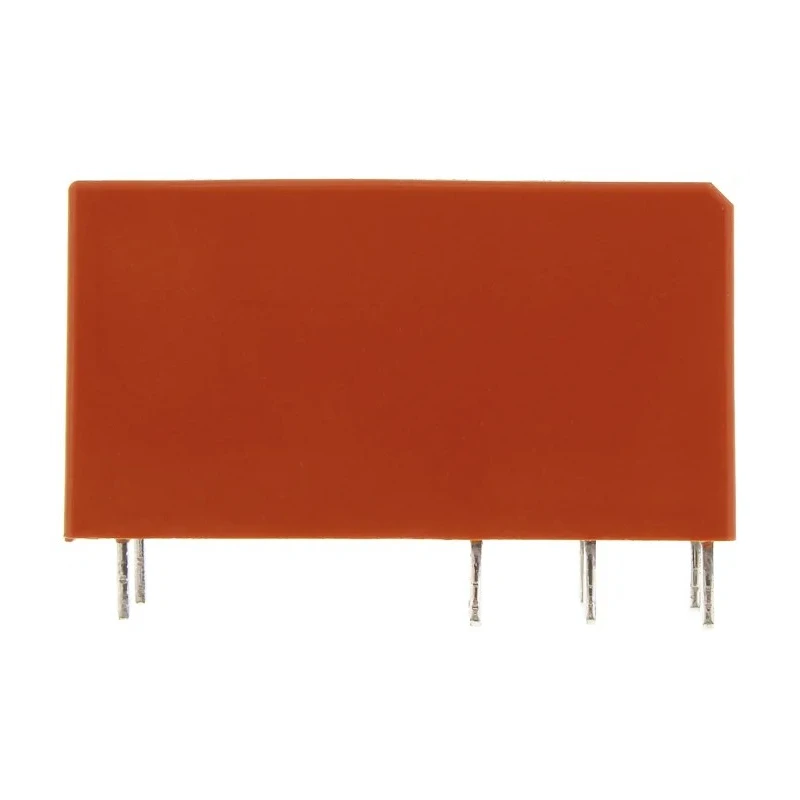

Physical dimensions are 29mm in length, 15.7mm in height, and 12.7mm in width, resulting in a space-saving profile suitable for compact circuit designs. Originating from Austria, this product exemplifies robust European manufacturing standards.

Operating coil voltage of 230V AC suitable for diverse electrical systems. Double pole double throw (DPDT) contact configuration allows multiple circuit switching. Switching current rated at 8A enabling robust power handling.

Compact PCB mount relay type with solder terminals for easy installation. Operating temperature range from -40°C to 70°C ensures performance in harsh conditions. Silver nickel alloy contact material enhances conductivity and durability.

Compliance with VDE and cULus standards guarantees quality and safety. Dimensions: 29mm length, 15.7mm height, and 12.7mm width for space-efficient usage. Coil resistance is 32.5kΩ with coil power of 0.74VA for energy efficiency.

Switching AC voltage capability up to 400V AC for broad application scope.

This TE Connectivity relay is commonly used in industrial automation, power control circuits, security systems, heating controls, and interface electronics. It offers reliable signal conditioning and power relay functionality essential for modern electronics manufacturing and maintenance.
