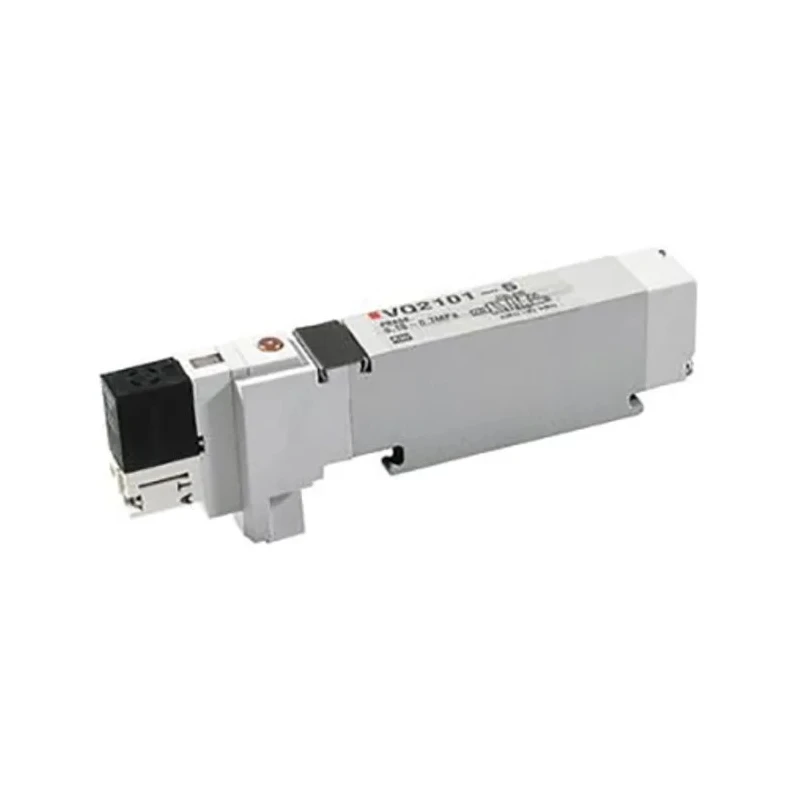

SMC Pneumatic Solenoid Valve 5/2 Solenoid VQ100 Series 24V DC Die Cast Zinc Body

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Solenoid VQ100 Series 24V DC Die Cast Zinc Body



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Height	93.5mm
Length	123mm
Model	VQ100
Width	63.5mm
Mount Type	Base
Series	VQ100
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	One-Touch Fitting
Number of Positions	2
Seal Material	Metal
Minimum Operating Temperature	-10°C
Operating pressure range	0.15 - 1.0MPa
Actuation Type	Solenoid
Fluid	air/inert gas
Standards/Approvals	RoHS, CE
Minimum Pilot Pressure	0.1MPa
Valve Function	5/2
Solenoid Type	Double
Port Gender	Female
Solenoid Power Consumption	1W

Key Features

The valve features a 5-port 2-position design with double solenoid actuation for precise control.
Constructed with a die cast zinc body and metal seal material for durability and corrosion resistance.
Operates within a pressure range of 0.15 to 1.0 MPa and maximum operating pressure of 0.7 MPa.
Equipped with built-in one-touch fittings to save piping time and labor.
Suitable for air and inert gas fluids with operating temperatures from -10°C to 50°C.
The compact design measures 123mm length, 63.5mm width, and 93.5mm height.
Consumes 1 watt solenoid power for efficient operation.
Mountable on base type with female port gender for easy installation.

Product Description

SMC VQ2200N-51-Q Pneumatic Solenoid Valve from the VQ100 Series offers a 5-port, 2-position metal-sealed design optimized for industrial pneumatic applications requiring high-speed and frequent operational cycles. Powered by a 24V DC double solenoid coil with a power consumption of 1 watt, this valve ensures stable response time and long service life, minimizing downtime in automated pneumatic systems.

Fabricated with a robust die cast zinc body and metal seal material, it is engineered for durability and resistance to corrosion, suitable for use with air and inert gases. The valve operates efficiently within a pressure range of 0.15 to 1.0 MPa, with a maximum operating pressure of 0.7 MPa and pilot pressures between 0.1 MPa and 0.7 MPa, making it adaptable to diverse pneumatic control demands.

Its compact dimensions of 123mm length, 63.5mm width, and 93.5mm height enable integration into manifold systems without excessive space requirements. The base mount type combined with female port gender and built-in one-touch fittings simplifies installation and maintenance, reducing labor and operational costs.

Designed for operation in temperatures from -10°C to 50°C, the valve maintains performance in typical industrial environments. The VQ100 series incorporates safety and environmental compliance standards including RoHS and CE certifications, reinforcing its suitability for use in manufacturing, automation, fluid power control, and HVAC applications.

Precision pneumatic control with double solenoid actuation. Durable die cast zinc body with metal seals for longevity. Wide operating pressure and temperature ranges. Compact size with efficient solenoid power consumption.

Easy installation with one-touch fittings and base mount. Certified to RoHS and CE standards for safety and quality.
