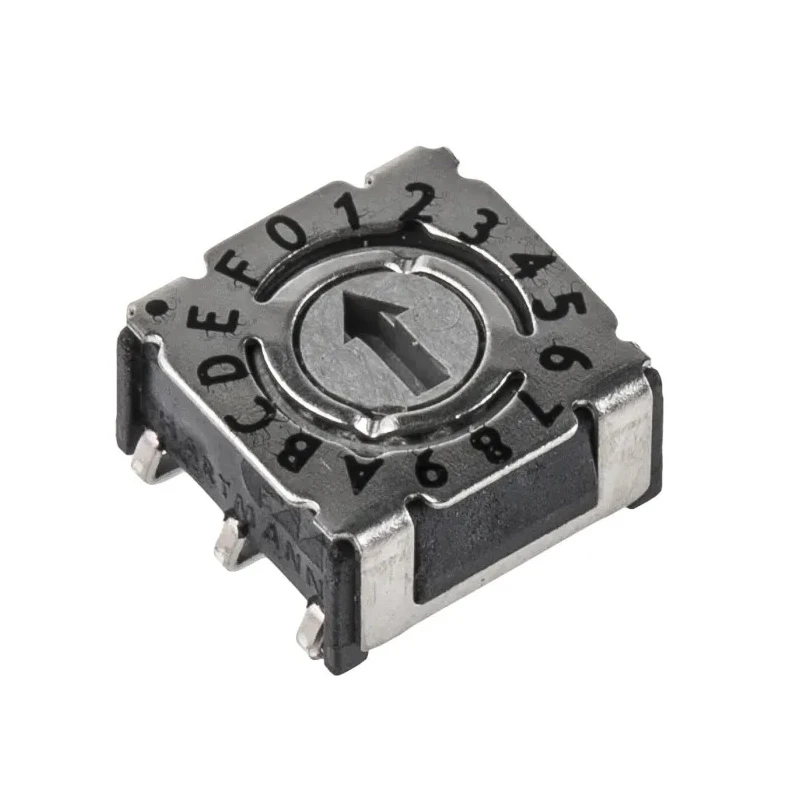

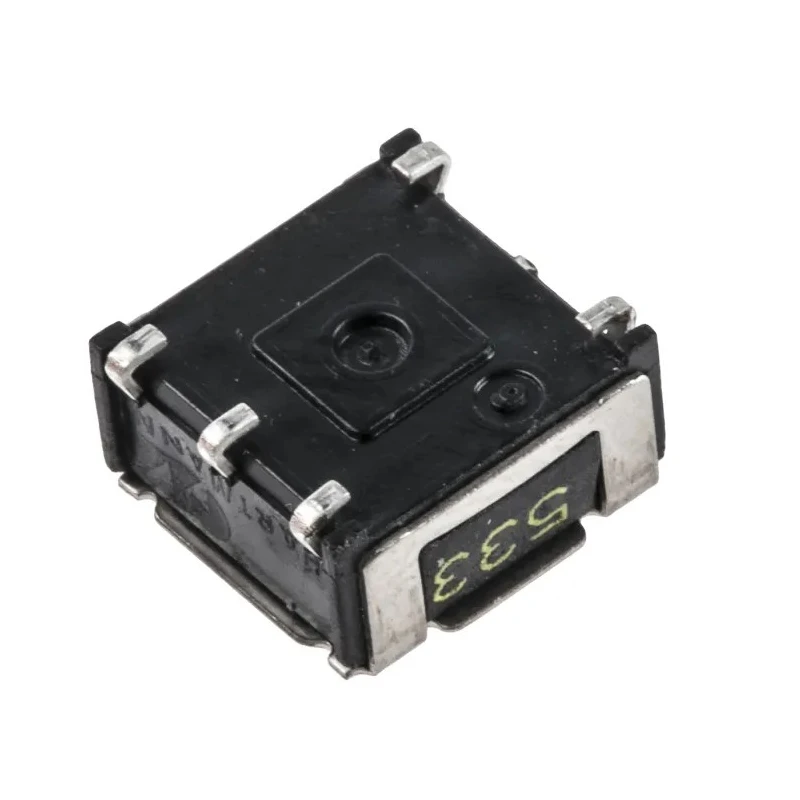

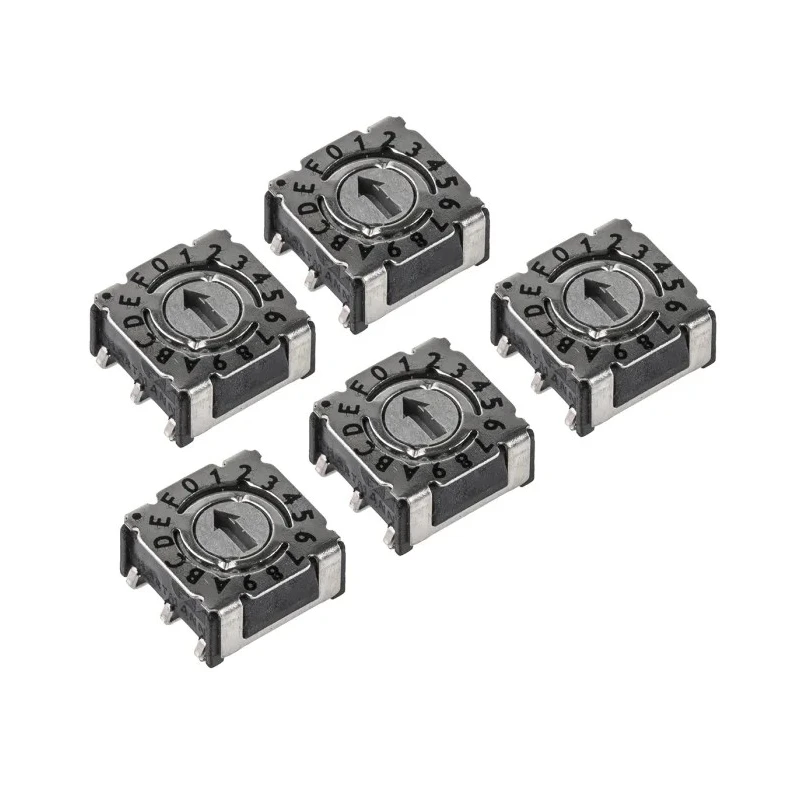

Hartmann Rotary Coded DIP Switch Surface Mount with J Type Terminals, Low Profile, IP67 Rated P36SMJ103

Hartmann P36SMJ103 Rotary Coded DIP Switch is a surface mount component designed for electronic applications requiring precise multi-position switching in a compact form factor. Its low profile construction suits devices where space saving is critical. The switch features J type terminals compatible with standard automatic installation and solid PCB pins for secure and reliable mounting.

Two actuator styles are offered: screwdriver and spindle types. Each actuator supports two coding styles - BCD, which provides 10 switch positions, and hexadecimal, which offers 16 positions, allowing flexibility depending on application requirements. The contacts are plated with abrasion resistant hard gold to enhance long-term durability and ensure consistent electrical performance.

This switch is both solder and flux sealed, rendering it washable and compliant with a dust and moisture protection rating comparable to IP67, making it suitable for harsh industrial or commercial environments. It operates reliably within a wide temperature range of -50 to +125 degrees Celsius, which enables use in demanding thermal conditions.

The horizontal mounting orientation facilitates easy integration on PCBs within electrical and automation systems. Manufactured in Germany, it meets high quality and reliability standards expected in industrial automation, instrumentation, control panels, and other electronics applications.

These rotary coded DIP switches are widely used in industrial machinery, equipment control interfaces, automation signalling, and electronic instrumentation where precise, reliable multi-position switches are required in a compact footprint.

Low profile rotary code switch ideal for limited space applications. Surface mount with solid PCB pins and SMJ mounting type. Two actuator options: screwdriver or spindle with BCD or hexadecimal coding. Provides 10 positions (BCD) or 16 positions (Hexadecimal) selectable switch.

Contacts have abrasion resistant hard gold plating for durability. Switch design is solder and flux sealed, making it washable and dust resistant. High operating temperature range from -50 to +125°C. Horizontal mounting orientation with robust construction.

Made in Germany ensuring premium build quality and reliability. Explore the full range of Rotary Coded DIP Switches at EnvMart to find the best fit for your industrial electrical and automation needs.
