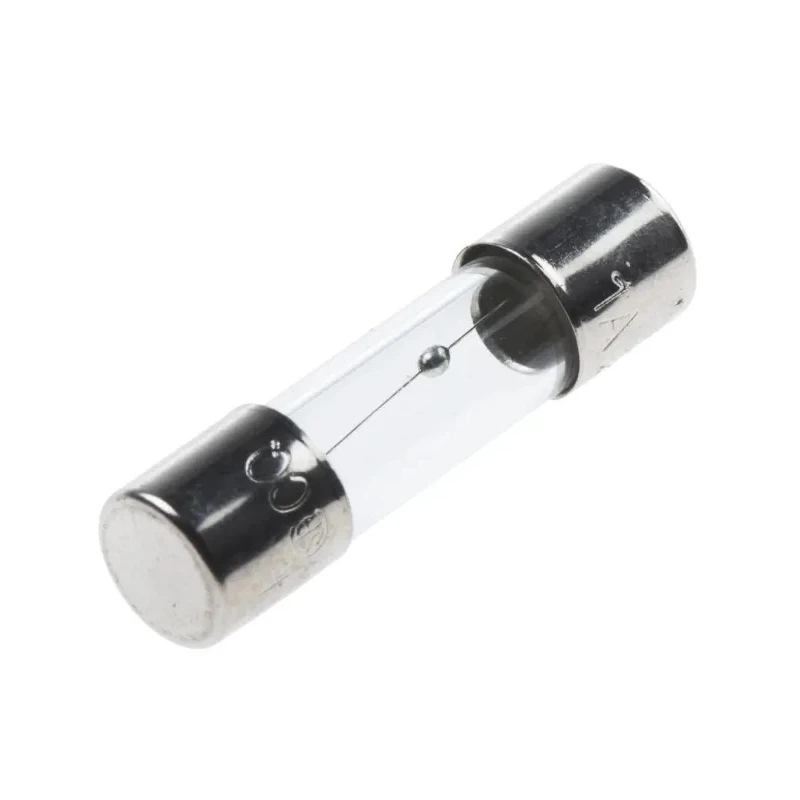

RS PRO 1A T Slow Blow Glass Cartridge Fuse, 5 x 20 mm, 250V AC, Time Lag 911-3382

RS PRO model 911-3382 is a 1 ampere T speed (slow blow) glass cartridge fuse sized at 5 x 20 mm designed for 250V AC circuits. This glass fuse provides reliable protection against overcurrent and short circuits by interrupting the circuit when excessive current flows, helping to safeguard electrical devices and circuits.

The glass body allows users to visually inspect the fuse element to verify if it has blown, providing ease of maintenance and replacement. Its 5 x 20 mm dimension is a standard cartridge fuse size suitable for a wide range of fuse holders, making this fuse versatile for various electrical applications.

This fuse features time lag characteristics (T speed rating), also known as anti-surge, allowing it to tolerate short-duration current surges without blowing, which is useful for motor start-up and other transient conditions. The fuse has a low breaking capacity (LBC), which is adequate for protecting common appliances such as motors, air conditioners, refrigerators, and pumps.

Operating within a temperature range from -55°C to 125°C, this fuse maintains performance across diverse environmental conditions. It complies with multiple standards including UL, RoHS, PSE GTE, KTL, and CSA, ensuring quality and safety for industrial and commercial use.

The RS PRO 911-3382 fuse finds applications in industrial facilities, commercial equipment, residential electrical installations, and automotive circuits where protection against overcurrent is crucial. It is part of the RS PRO series and has an overall length of 20 mm and a diameter of 5.2 mm, conforming to standard fuse dimensions.

Glass body allows visual fuse status inspection. T speed rating provides time lag protection. Standard 5 x 20 mm size fits common fuse holders. Rated current: 1A for effective circuit protection. Low breaking capacity for typical appliance protection.

Wide operating temperature range from -55°C to 125°C. Complies with UL, RoHS, PSE GTE, KTL, and CSA standards. Suitable for industrial, commercial, residential, and automotive applications. Dimensions: 20 mm length, 5.2 mm diameter.
