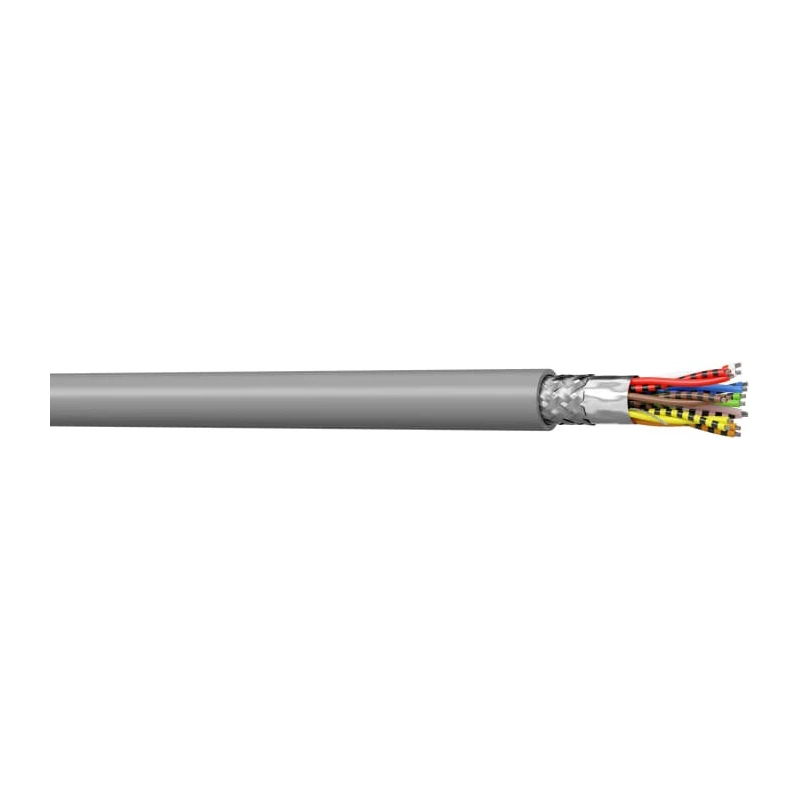

AXINDUS MP22E Series Data Cable 8 Pairs 16 Cores 0.22 mm² 100 m Grey Sheath Polyvinyl Chloride MP22E
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | AXINDUS |
| CROSS SECTIONAL AREA | 0.22mm² |
| Model | MP22E |
| Cable Length | 100m |
| Series | MP22E |
| Outside diameter | 8.1mm |
| Maximum Operating Temperature | 60°C |
| Number Of Cores | 16 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | IEC 60332-1, NF C 32-070/C2 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.2mm |
| Size of Strands | 0.2mm |
| Number of Pairs | 8 |
Key Features
- The cable features 8 twisted pairs comprising 16 cores with a 0.22 mm² cross-sectional area.
- The conductor is constructed of tinned copper wire with stranded structure to ensure flexibility and conductivity.
- Sheathed in grey polyvinyl chloride, the jacket offers flame retardant properties and durability.
- The cable operates reliably within a temperature range of -20°C to 60°C.
- It complies with IEC 60332-1 and NF C 32-070/C2 standards for fire behavior and safety.
- The core strands consist of 7 strands of 0.2 mm wires per conductor.
- The overall cable diameter measures 8.1 mm, providing compact form factor without compromising performance.
- This cable is suitable for use in industrial, automation, electrical power, and communication signal transmission systems.
Product Description
AXINDUS MP22E Series Data Cable MP22E is engineered as an industrial-grade multi-core cable, featuring 8 pairs (16 cores) each with a 0.22 mm² cross-sectional area and a stranded conductor made of tinned copper wire. The grey sheath is manufactured from polyvinyl chloride (PVC) providing flame retardant properties and excellent mechanical protection.
With an overall diameter of 8.1 mm, the cable balances flexibility and robustness to suit demanding environments. It operates reliably in temperatures ranging from -20°C to a maximum of 60°C, making it ideal for indoor and controlled outdoor installations.
This Data Cable series complies with rigorous standards including IEC 60332-1 regarding fire safety and NF C 32-070/C2, ensuring dependable performance in industrial and automation applications. The conductor strands are configured as 7 strands of 0.2 mm wires, providing flexibility and enhanced signal integrity.
The cable's dual shielding combining tinned copper braid and aluminum tape assists in reducing electromagnetic interference, making it suitable for process control, communication, and electronic signal transmission in high noise environments.
Widely used in electrical power and industrial systems, the MP22E Series is recognized for supporting high-speed data transmission and control signal fidelity in challenging settings.
The cable features 8 twisted pairs with 16 cores for efficient multi-channel data transmission. The conductor material of tinned copper wire ensures excellent conductivity and corrosion resistance. The PVC jacket provides a durable, flame retardant external protective layer.
Meets IEC 60332-1 and NF C 32-070/C2 standards for safety and fire retardancy. Operates over a temperature range from -20°C to 60°C for versatile application. The compact 8.1 mm diameter cable facilitates easy installation in confined spaces.
Core strands of 7 x 0.2 mm provide balanced flexibility and durability.
This product is ideal for use in industrial automation, manufacturing, control systems, and data communication networks. For comprehensive solutions in wiring and cabling, browse the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductors in this data cable have a cross-sectional area of 0.22 mm².
This model features a total of 16 cores, organized into 8 twisted pairs.
The maximum operating temperature for this cable is 60°C.
It complies with IEC 60332-1 and NF C 32-070/C2 standards for fire safety and behavior.
The jacket is made from polyvinyl chloride (PVC), which provides flame retardant properties.
The overall diameter of this cable is 8.1 mm.
The cable uses stranded conductors made of tinned copper wire.
The minimum operating temperature for this cable is -20°C.
This cable has a length of 100 meters.
Each core consists of 7 strands of 0.2 mm wires.
It is suitable for use in industrial automation, electrical power, and communication signal transmission systems.
The jacket of this cable is grey.
