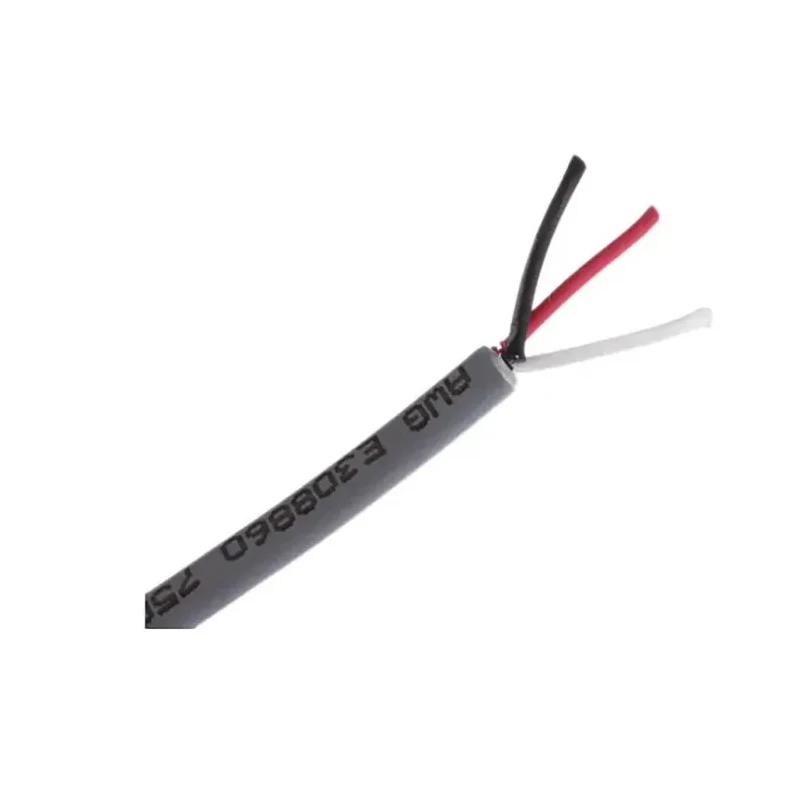

Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable 2 Pairs 3 Cores 0.35 mm² 305 m Slate 1173L SL001

Alpha Wire 1173L SL001 Alpha Essentials LSZH Communication & Control Series Data Cable is a high-quality, 2 pairs, 3 cores cable with 0.35 mm² cross-sectional area and a length of 305 meters, featuring a slate-colored Low Smoke Zero Halogen (LSZH) jacket. It is specially designed for controlled-environment signal and control runs in automation, electronic, and electrical installations at 300V rated voltage and up to 75°C maximum operating temperature.

This cable combines tin-plated multi-strand copper conductors, which offer excellent corrosion resistance and flexibility, making it ideal for routing in tight spaces and ducts. The 7-strand construction per core improves bending performances and assists in cable pulling during installation.

The LSZH jacket significantly limits the emission of toxic gases and corrosive acid residues in case of fire, fulfilling the requirements for fire-restricted environments and meeting relevant IEC standards. This makes the cable suitable for applications where safety and environmental standards are critical.

Typical industrial applications include interconnects inside control panels for factory automation systems, sensor and actuator wiring in machinery, building management systems, and internal wiring of electrical cabinets. The cable’s compact 4.27 mm outside diameter allows for efficient use in space-constrained installations.

Alpha Wire 1173L SL001 is compliant with recognized UL, CSA, and CE standards, ensuring compatibility with multi-jurisdiction projects and supporting RoHS and REACH substance restrictions for environmentally conscious installations.

Constructed with 0.35 mm² tin-plated copper conductors for corrosion resistance and flexibility. Features 7-strand conductor construction enhancing bend performance. Slate-colored Low Smoke Zero Halogen (LSZH) jacket reduces toxic gas and residues in fire.

Rated for 300V voltage and maximum operating temperature of 75°C. Suitable for factory automation, sensor wiring, building management, and electrical cabinet internal wiring. Complies with UL, CSA, and CE standards ensuring broad regulatory acceptance.

Outer diameter of 4.27 mm provides compact cable design. Operates reliably in temperatures from -20°C to 75°C ambient environments. Designed for easy pulling and routing in confined ducts due to flexible conductor strands.

Meets required IEC tests for smoke and acid gas generation in fire-restricted areas. Explore the comprehensive range of Data Cables and communication wiring solutions available at EnvMart for your electrical and automation needs.
