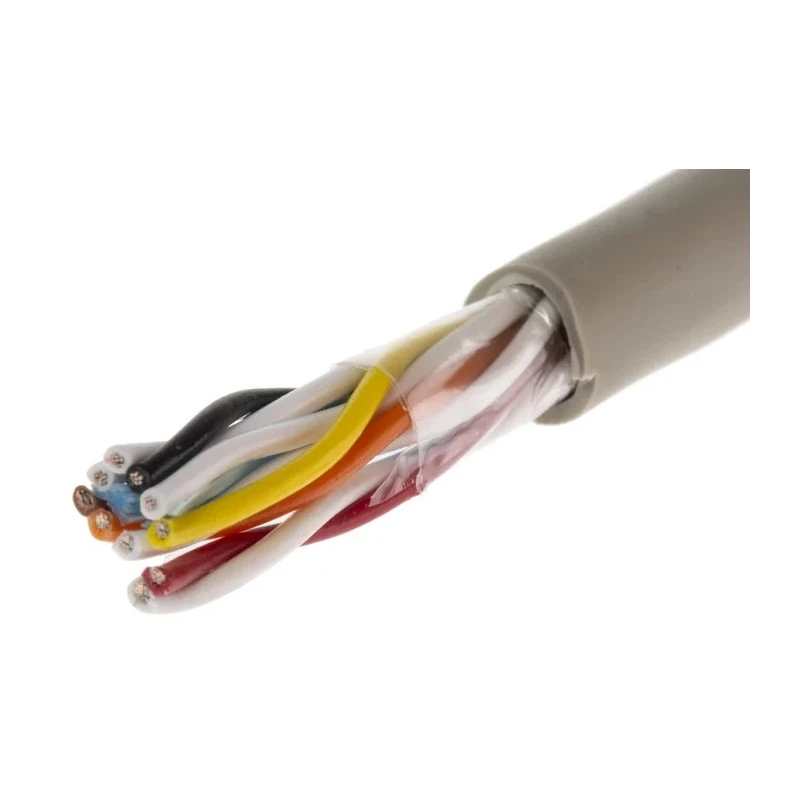

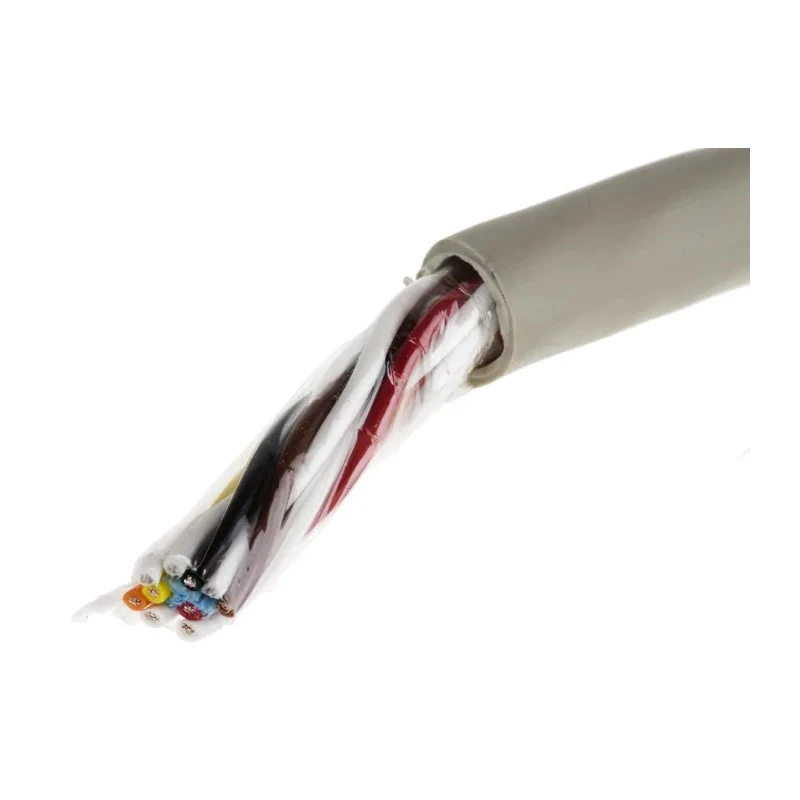

Alpha Wire Pro-Tekt Series Data Cable 5 Pairs 10 Cores 100 m Grey PVC Sheath B963051 GE033
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | B963051 GE033 |
| Cable Length | 100m |
| Series | Pro-Tekt |
| Outside diameter | 6.68mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.263 inch (6.68 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Number of Pairs | 5 |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
| Pairs | 5, White + Black, White + Brown, White + Red, White + Orange, White + Yellow |
Key Features
- The cable is designed with stranded tin copper conductors for enhanced flexibility.
- Operating temperature ranges from -30°C to +105°C enabling use in demanding industrial environments.
- The grey PVC sheath provides good abrasion resistance and flame retardant properties.
- The cable is suitable for data transmission applications requiring 300 V voltage rating.
- Its nominal diameter is 6.68 mm (0.263 inch) with a jacket thickness of 0.81 mm (0.032 inch).
- The stranded conductor strands are 7 strands of 0.20 mm each, sized 24 AWG (0.23 mm²).
- Pro-Tekt cable complies with CE, CSA, and UL standards assuring quality and safety.
Product Description
Alpha Wire B963051 GE033 Pro-Tekt Series Data Cable is a 5 pairs, 10 cores cable with a length of 100 meters, jacketed in premium grade grey polyvinyl chloride (PVC). It supports 300 V operation with a flexible stranded tin copper conductor design optimized for durability and flexibility.
This cable operates efficiently at temperatures ranging from -30°C to +105°C, suitable for industrial automation, medical devices, aerospace, petrochemical plants, and commercial electronic applications. Its flame-retardant PVC sheath offers UV and oil resistance for extended service life in demanding environments.
The cable pairs are distinctly color-coded for easy installation and troubleshooting. The overall cable diameter is 6.68 mm with a robust jacket thickness of 0.81 mm ensuring mechanical resilience.
The 24 AWG stranded conductors ensure signal integrity while accommodating bending and twisting during installation or operation. Alpha Wire's Pro-Tekt cables carry CE, CSA, and UL approvals reflecting their adherence to global safety and performance standards.
Stranded tin copper conductors for flexibility and durability. Temperature rating from -30°C to +105°C supports harsh conditions. Flame-retardant, UV and oil resistant PVC jacket. Color-coded conductor pairs for ease of use.
Complies with CE, CSA Certified, UL safety standards. Nominal diameter of 6.68 mm with thick insulation enhances reliability.
This Pro-Tekt Data Cable is ideal for controlled environment usage where high data integrity and mechanical toughness are required. Suitable for industrial, automation, aerospace, and commercial electronics sectors.
Explore more cables and electrical components on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 105°C.
The nominal diameter of this cable is 6.68 mm (0.263 inch).
This cable features 10 cores, organized into 5 pairs.
It uses stranded tin copper wire as the conductor material for enhanced flexibility.
The cable is rated for 300 V operation.
The jacket thickness of this model is 0.81 mm (0.032 inch).
The jacket is made of polyvinyl chloride (PVC), which is flame-retardant and offers good abrasion resistance.
It complies with CE, CSA, and UL standards, ensuring quality and safety.
The minimum operating temperature is -30°C.
The cable is designed with stranded conductors, specifically 7 strands of 0.20 mm each, which enhances flexibility and durability.
This model is suitable for industrial automation, medical devices, aerospace, and commercial electronic applications.
The conductor pairs are distinctly color-coded, including combinations such as White + Black, White + Brown, White + Red, White + Orange, and White + Yellow for easy installation and troubleshooting.
