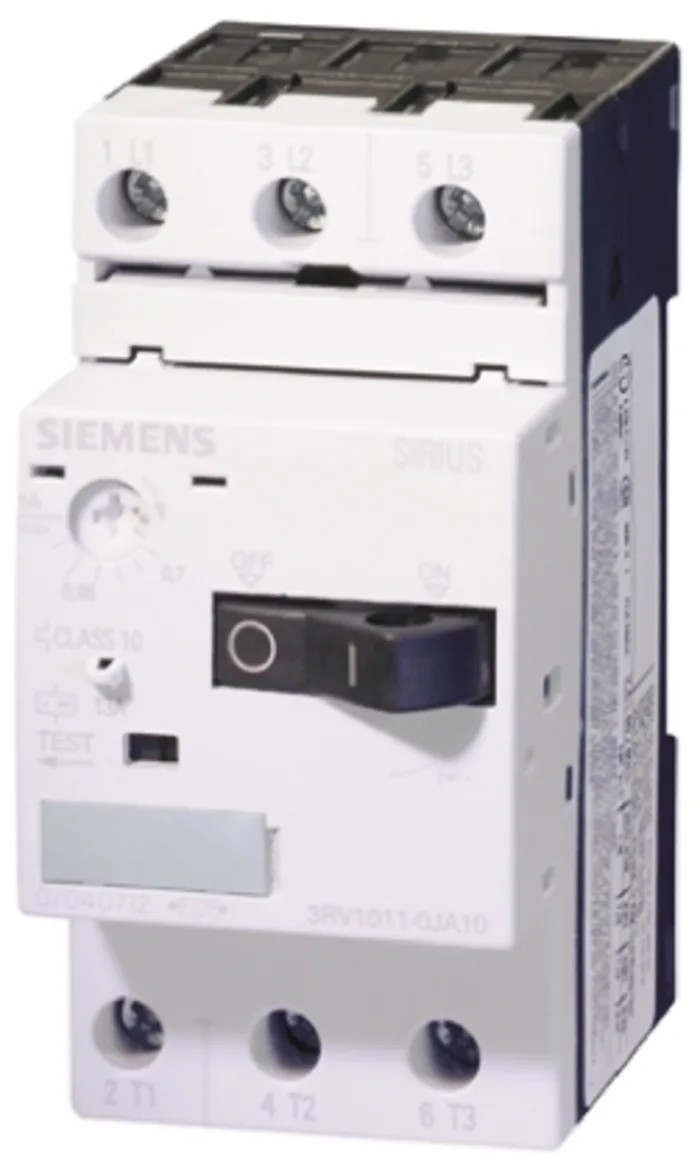

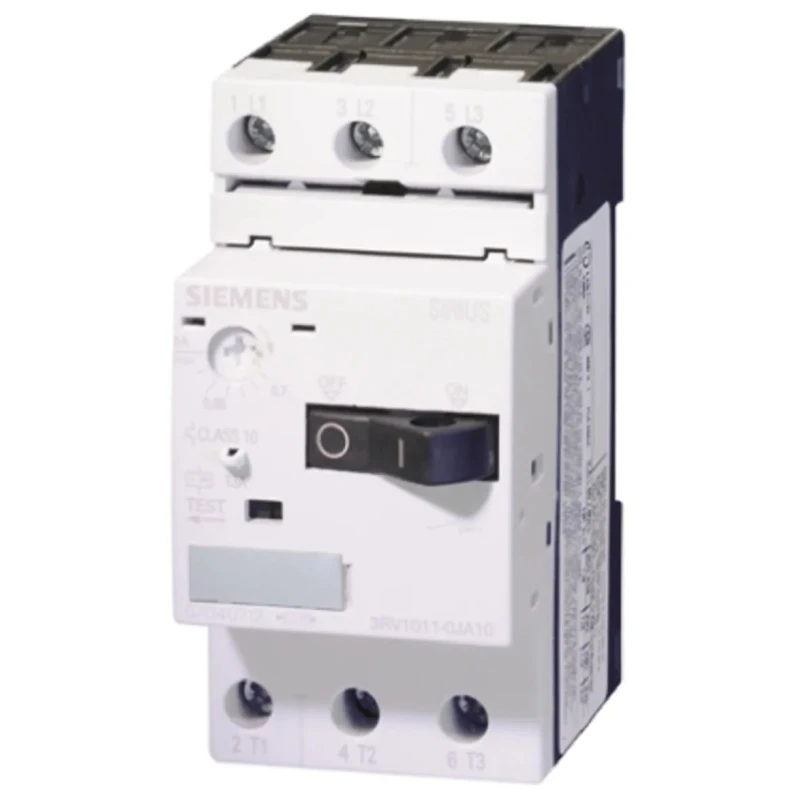

Siemens 3.2A Motor Protection Circuit Breaker 690V IP20 3RV1011-1DA15
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV1011-1DA15 |
| IP Rating | IP20 |
| Overall Length | 90mm |
| Current Rating | 3.2A |
| Series | 3RV1 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Reliability | the terminal connection is resistant to shock and vibration |
| Sensing type | Current |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0990, UL, UKCA, IEC 947, EN60947, CSA |
| Overall Depth | 81mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Time saving | the connection can be made quickly without having to press on end sleeves |
| Reduced maintenance | the cage clamp system means that the checking of screw connections following transportation is unnecessary |
Key Features
- Compact and current limiting motor starter protector.
- Equipped with electronic release sensitive to phase failure and phase unbalance.
- Suitable for switching and protecting induction motors and other loads.
- Features Siemens SIRIUS Cage Clamp Technology for secure and vibration-resistant connections.
- IP20 rated with robust dimensions of 90mm length, 45mm width, and 81mm depth.
- Standards approved including VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA.
- Supports high short circuit breaking capacity for motor feeders.
- Designed for vertical mounting with reduced maintenance requirements.
Product Description
Siemens 3RV1011-1DA15 Motor Protection Circuit Breaker is a precision-engineered device designed for efficient motor protection in industrial and automation environments. It supports a current rating of 3.2A and operates at a supply voltage of 690V, suitable for motor feeders requiring reliable short circuit and overload protection.
This 3-pole circuit breaker offers an operating temperature range from -20°C to 60°C and carries an IP20 rating for protection against solid objects. Its compact design with dimensions of 90mm length, 45mm width, and 81mm depth ensures ease of installation in constrained spaces.
The breaker is part of the Siemens 3RV1 series and features an electronic release system that provides protection not only against overloads and short circuits but also phase failure, phase unbalance, and rotor blockage conditions. The breaker is suitable for inductive motor loads and other similar applications.
Siemens SIRIUS Cage Clamp Technology incorporated in this model allows for fast and reliable conductor connections resistant to shock and vibration. The cage clamp connection permits solid, stranded, and finely stranded conductors with or without end sleeves, enhancing reliability and reducing maintenance needs.
This product adheres to multiple global standards such as VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA, confirming its suitability for international industrial applications. The device is manufactured in Germany, ensuring high quality and manufacturing standards.
Compact current limiting motor protection integrated with overload and short circuit releases. Electronic release sensitive to phase failure and phase unbalance enhances motor safety. Siemens SIRIUS Cage Clamp Technology ensures secure and maintenance-free connections.
High short circuit breaking capacity enables safe usage in motor feeders. IP20 protection class protecting internal components from solid objects. Conforms to VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA standards. Suitable for vertical mounting reducing maintenance effort.
Operating temperature span from -20°C up to 60°C allows flexibility in different environments.
This Motor Protection Circuit Breaker is ideally suited for industrial, automation, manufacturing, and electrical control systems requiring durable and precise motor safety devices. The robust construction and advanced features ensure operational reliability and enhanced motor lifespan.
Explore more Siemens industrial electrical products and dependable motor control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3.2A, making it suitable for motor feeders requiring reliable overload protection.
The maximum supply voltage for this circuit breaker is 690V, which allows it to be used in various industrial applications.
The dimensions of this model are 90mm in length, 45mm in width, and 81mm in depth, facilitating installation in constrained spaces.
It has an IP20 rating, which protects the internal components from solid objects but does not provide protection against water.
This unit operates within a temperature range of -20°C to 60°C, allowing for flexibility in various environments.
The electronic release system is sensitive to phase failure and phase unbalance, providing additional safety for the motor.
This model complies with several standards, including VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA, confirming its suitability for international applications.
The SIRIUS Cage Clamp Technology allows for fast and reliable connections that are resistant to shock and vibration, enhancing reliability during operation.
This motor protection circuit breaker has 3 poles, suitable for various motor protection applications.
The cage clamp system reduces maintenance needs by eliminating the necessity to check screw connections after transportation.
Yes, this model is designed for vertical mounting, which can help reduce maintenance efforts during operation.
It is suitable for switching and protecting induction motors and other similar inductive loads in industrial settings.
