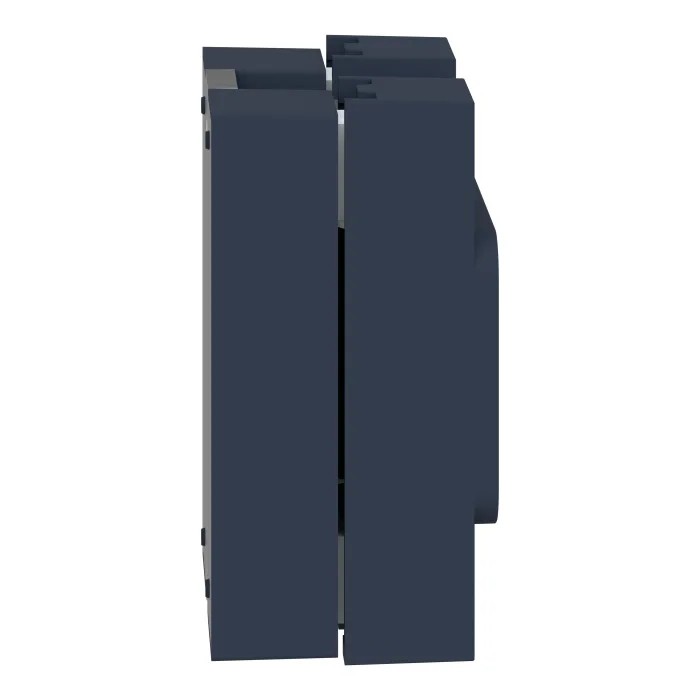

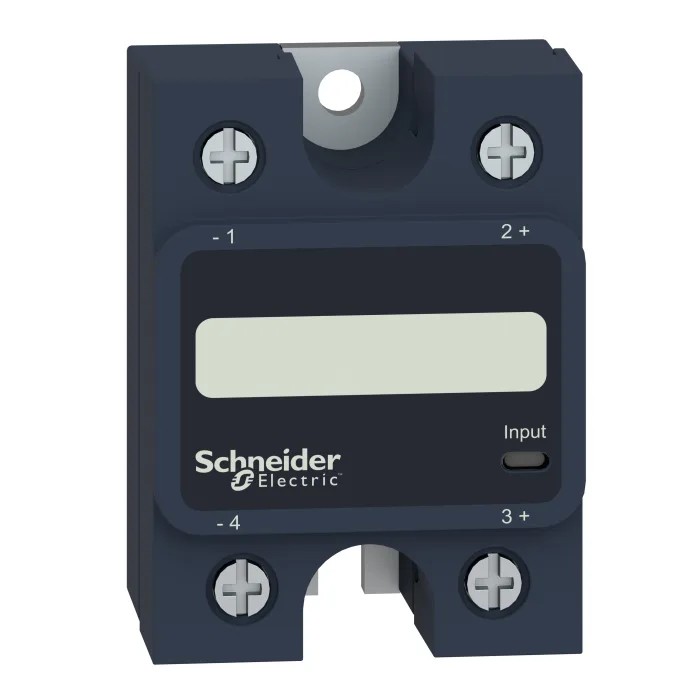

Schneider Electric Harmony Relay Series Solid State Relay Panel Mount 40 A Load 150 V DC Load 32 V DC Control SSP1D440BDT
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 58.9mm |
| Length | 44.5mm |
| Model | SSP1D440BDT |
| IP Rating | IP20 |
| Width | 34.29mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 50pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 40A |
| Standards/Approvals | CE, CSA, EAC, EN/IEC 62314, REACH, RoHS, UL |
| Maximum Load Voltage | 150V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.3mA |
Key Features
- Features panel mounting with telescopic screw terminals for easy installation.
- Supports maximum load voltage of 150 V DC and current of 40 A for versatile applications.
- Zero voltage switching function ensures efficient operation with minimal electrical noise.
- Includes thermal pad for effective heat dissipation and improved reliability.
- Test button allows troubleshooting and debugging for maintenance convenience.
- Robust construction with IP20 rating providing protection against solid objects.
- Operates safely from -40°C to 80°C ambient temperature range.
- Screw terminal type ensures secure electrical connection.
Product Description
Schneider Electric SSP1D440BDT is a Harmony Relay Series Solid State Relay designed for panel mounting. It provides a maximum load current of 40 A and can handle load voltages up to 150 V DC with a control voltage range of 3.5 V to 32 V DC. This relay features zero voltage switching, enhancing efficiency by minimizing electrical noise and improving switching accuracy.
The relay comes equipped with a thermal pad to facilitate heat dissipation, protecting nearby components and extending the device's operational life. It includes a test button for straightforward troubleshooting and debugging. The robust screw terminal connections and telescopic mounting ensure secure and simple installation.
Its construction has an IP20 rating, making it suitable for environments where protection from solid objects is required. Operating temperature ranges from -40°C to 80°C, supporting harsh industrial settings. The relay features a visual indicator and alarm system to alert users of unexpected output changes, enhancing safety and reliability.
This Solid State Relay is widely used in applications including industrial computers, medical and scientific research, and heating control systems, benefiting from its silent operation and durability without moving parts. The model complies with multiple standards such as CE, CSA, EAC, EN/IEC 62314, REACH, RoHS, and UL, and is made in Mexico.
Features panel mounting with telescopic screw terminals for easy installation. Supports maximum load voltage of 150 V DC and current of 40 A for versatile applications. Zero voltage switching function ensures efficient operation with minimal electrical noise.
Includes thermal pad for effective heat dissipation and improved reliability. Test button allows troubleshooting and debugging for maintenance convenience. Robust construction with IP20 rating providing protection against solid objects.
Operates safely from -40°C to 80°C ambient temperature range. Screw terminal type ensures secure electrical connection. Equipped with visual indicator and alarm to monitor circuit status and alert unexpected changes. Suitable for industrial computers, medical research, and heating control applications.
Explore Schneider Electric products on EnvMart for advanced electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum load current of 40 A.
It operates safely within a temperature range of -40°C to 80°C.
The maximum load voltage supported by this relay is 150 V DC.
This relay features a zero voltage switching function, which enhances efficiency by minimizing electrical noise.
The dimensions of this model are 58.9 mm in height, 44.5 mm in length, and 34.29 mm in width.
It uses screw terminals for secure electrical connections.
Yes, it includes a test button that allows for straightforward troubleshooting and debugging.
This relay has an IP20 rating, providing protection against solid objects.
It complies with multiple standards including CE, CSA, EAC, EN/IEC 62314, REACH, RoHS, and UL.
The minimum control voltage required for this relay is 3.5 V DC.
It is suitable for applications including industrial computers, medical research, and heating control systems.
The relay includes a thermal pad to facilitate effective heat dissipation and improve reliability.
