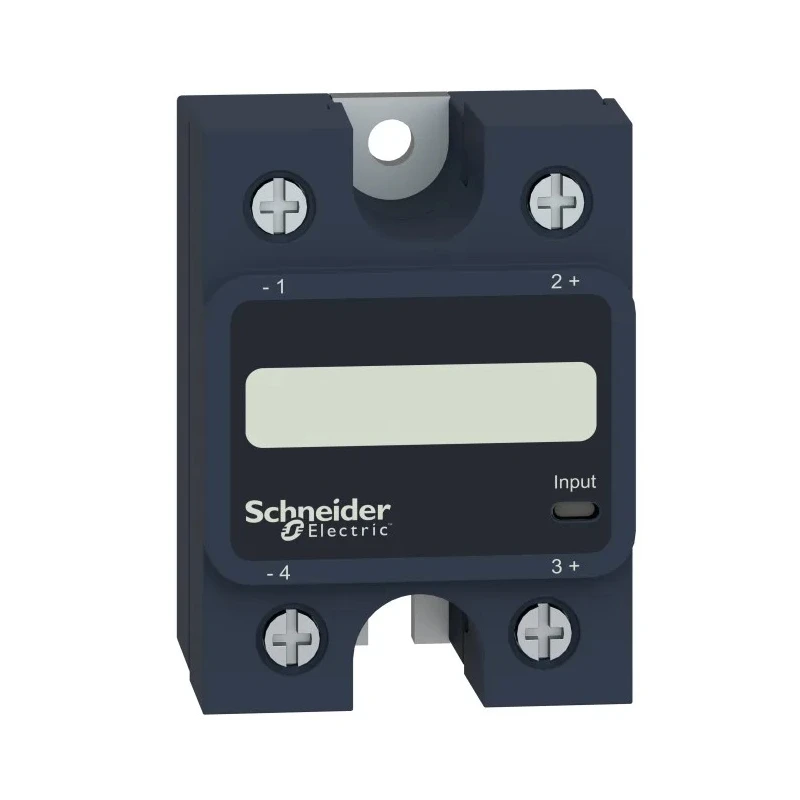

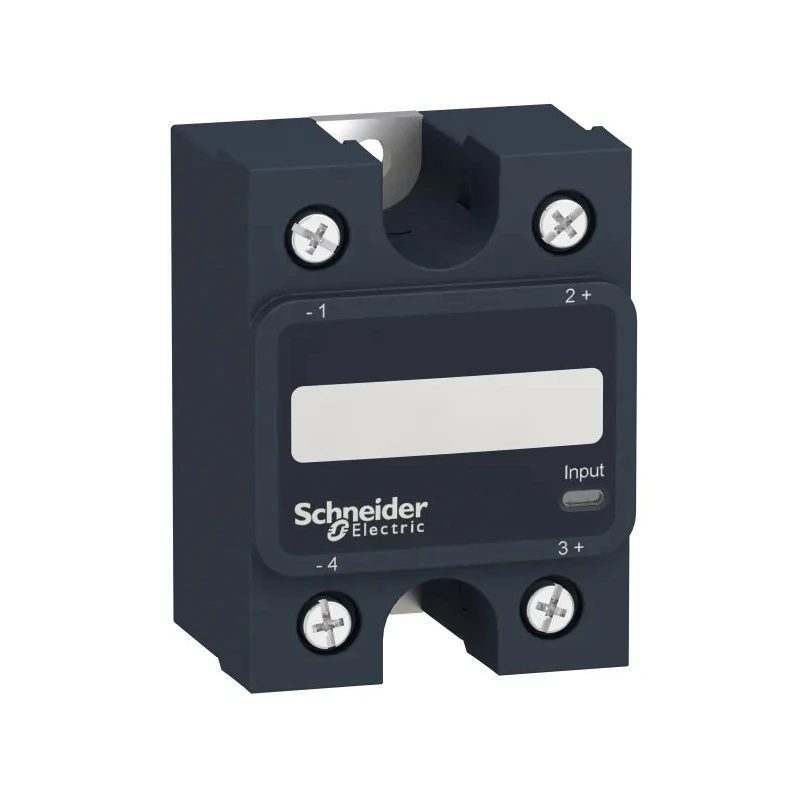

Schneider Electric Harmony Relay Series Solid State Relay, 75 A Load, Panel Mount, 660 V AC Load, 32V DC Control SSP1A475BD
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 58.9mm |
| Length | 44.5mm |
| Model | SSP1A475BD |
| IP Rating | IP20 |
| Width | 34.29mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 75A |
| Standards/Approvals | RoHS, UL, CE, CSA, EAC, EN/IEC 62314, REACH |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Capable of switching a maximum load current of 75 amperes.
- Panel mount type relay with screw terminal connections.
- Operates with zero voltage switching function for reduced electrical noise.
- Offers an output type of SCR with low off-state leakage current of 1mA.
- Wide operating temperature range from -40°C to 80°C.
- IP20 rated for protection against solid objects and limited ingress of dust.
- Complies with multiple standards including RoHS, UL, CE, CSA, EAC, EN/IEC 62314 and REACH.
- Manufactured in Mexico ensuring high quality and reliability.
Product Description
Schneider Electric SSP1A475BD Harmony Relay Series Solid State Relay offers a reliable panel mounting solution capable of handling a maximum load current of 75 A and a maximum load voltage of 660 V AC. The relay is controlled by a DC voltage ranging between 4V to 32V, specifically designed for robust industrial applications.
The relay features a zero voltage switching function that minimizes electrical noise and prolongs the device's lifespan. Its solid-state switching using SCR ensures silent, fast, and maintenance-free operation without moving parts, making it highly durable and resistant to harsh operating environments.
With a compact size of 44.5mm length, 34.29mm width, and 58.9mm height, the relay integrates easily into panels and electrical enclosures. The screw terminal type allows secure wiring, while the IP20 rating protects against solid objects and limited dust ingress.
The SSP1A475BD model supports temperatures from -40°C up to 80°C, making it suitable for a wide range of climates and industrial settings. It complies with major international standards including RoHS, UL, CE, CSA, EAC, EN/IEC 62314, and REACH, highlighting its quality and environmental compliance.
Capable of switching a maximum load current of 75 amperes. Panel mount design with screw terminals for reliable installation. Zero voltage switching function reduces electrical noise. Solid State Relay with SCR output type and low off-state leakage current.
Wide operating temperature range: -40°C to 80°C. Compact dimensions facilitate easy panel integration. IP20 rated for protection against dust and solid particles. Meets RoHS, UL, CE, CSA, EAC, EN/IEC 62314, and REACH standards.
Manufactured in Mexico ensuring quality and durability. Ideal for industrial machines, packaging machines, HVAC, building equipment, and medical devices.
This solid state relay is an excellent choice for industrial, manufacturing, HVAC, and automation applications requiring reliable switching performance. Browse more Solid State Relays and Schneider Electric products on EnvMart for advanced industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch a maximum load current of 75 amperes.
It operates with a control voltage ranging from 4V DC to 32V DC.
The maximum load voltage for this relay is 660V AC.
This model features a panel mount design with screw terminal connections for secure installation.
It can operate in a wide temperature range from -40°C to 80°C.
This relay has an IP20 rating, providing protection against solid objects and limited ingress of dust.
It features a solid-state switching output type of SCR.
The zero voltage switching function minimizes electrical noise, enhancing the device's lifespan.
It complies with several standards including RoHS, UL, CE, CSA, EAC, EN/IEC 62314, and REACH.
The relay measures 44.5mm in length, 34.29mm in width, and 58.9mm in height.
The off-state leakage current is 1mA, indicating low leakage when the relay is not activated.
This solid state relay is suitable for industrial machines, packaging machines, HVAC, building equipment, and medical devices.
