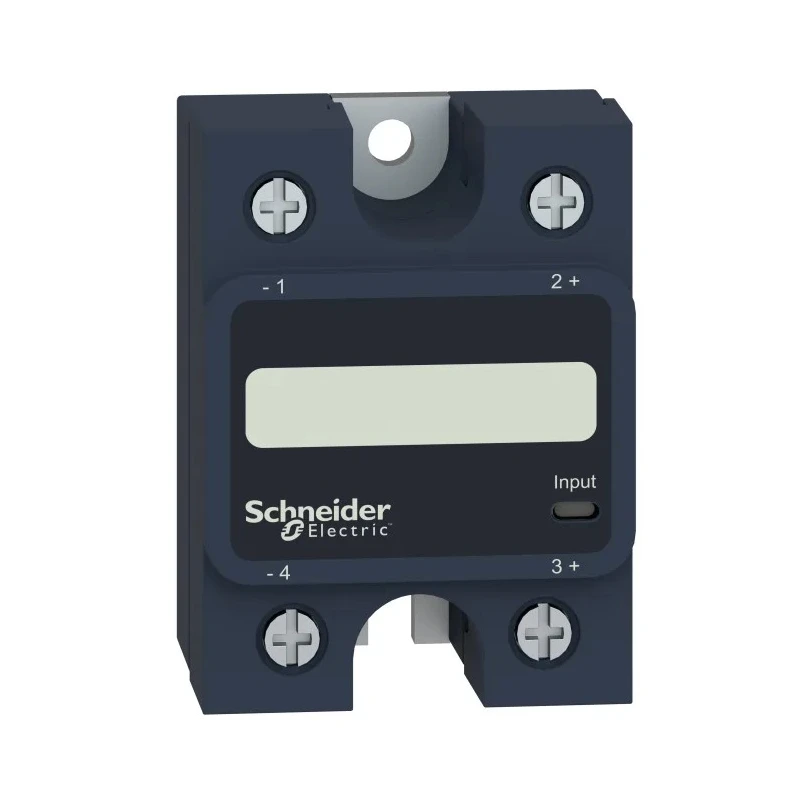

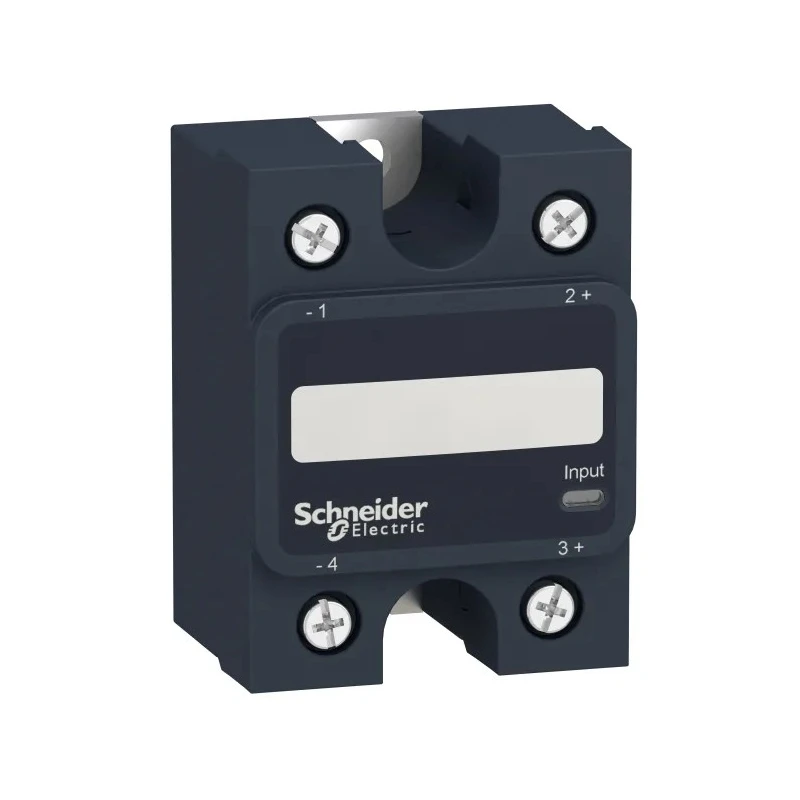

Schneider Electric Harmony Relay Series Solid State Relay, Panel Mount, 12 A Load, 150 V DC Load, 32 V DC Control SSP1D412BDT

Schneider Electric SSP1D412BDT Solid State Relay from the Harmony Relay Series is engineered for efficient panel-mounted DC switching applications, supporting a maximum load current of 12 A and a maximum load voltage of 150 V DC. This relay is equipped with a robust SCR output type and utilizes screw terminals for stable and secure electrical connections. It accepts a control voltage range from 3.5 V DC to 32 V DC, accommodating versatile control applications.

Designed for industrial, HVAC, manufacturing, and automation applications, this relay features a switching function optimized for zero voltage switching, ensuring minimal electrical noise and prolonging device life. Its IP20 rating guarantees protection against accidental contact, enhancing operator safety in challenging environments. The unit operates reliably over a broad temperature range of -40°C to 80°C, making it suitable for demanding conditions involving shocks and vibrations.

The compact dimensions (58.9 mm height, 44.5 mm length, 34.29 mm width) and a lightweight chassis of 89.2 g reduce space and mounting load on equipment panels. Its solid-state design assures a long service life with minimal wear, and an integrated green LED provides clear operational status indication. The relay includes a built-in heatsink to maintain safe operating temperatures without the need for additional cooling mechanisms.

This product complies with numerous international standards including EAC, CE, CSA, EN/IEC 62314, REACH, RoHS, and UL, affirming its quality and safety credentials. Originating from Mexico, it is an ideal choice for industrial automation systems, injection molding machines, packaging machinery, and HVAC system integration.

Designed for DC switching with a robust SCR output type. Mounts securely on panels using screw terminals for reliable connectivity. Supports a control voltage range from 3.5 V DC to 32 V DC. Boasts a durable operating temperature range from -40°C to 80°C suitable for harsh industrial environments.

Compact dimensions of 58.9 mm height, 44.5 mm length, and 34.29 mm width. Incorporates zero voltage switching function for precise operation. Features an IP20 rating ensuring touch protection for user safety. Includes a green LED indicator to provide quick status feedback.

Constructed to minimize off-state leakage current of 1 mA enhancing energy efficiency. Lightweight design at 89.2 g reducing strain on mounting surfaces.
