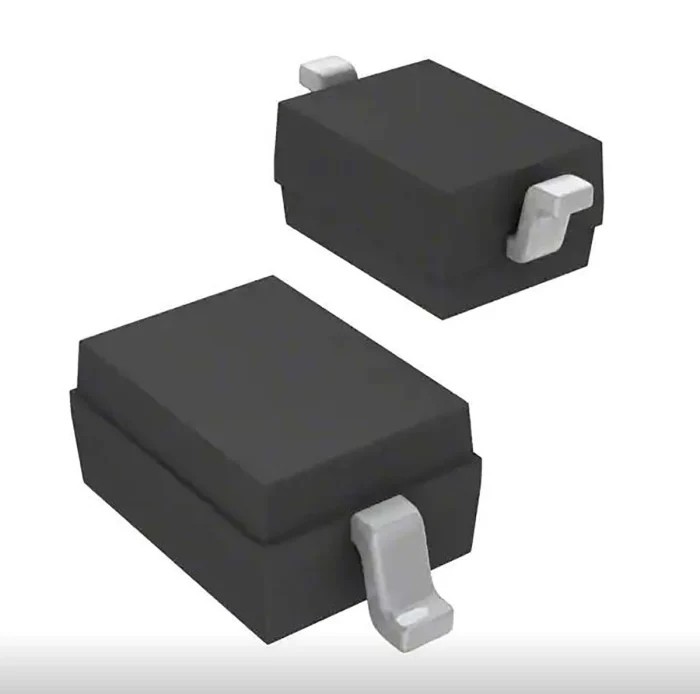

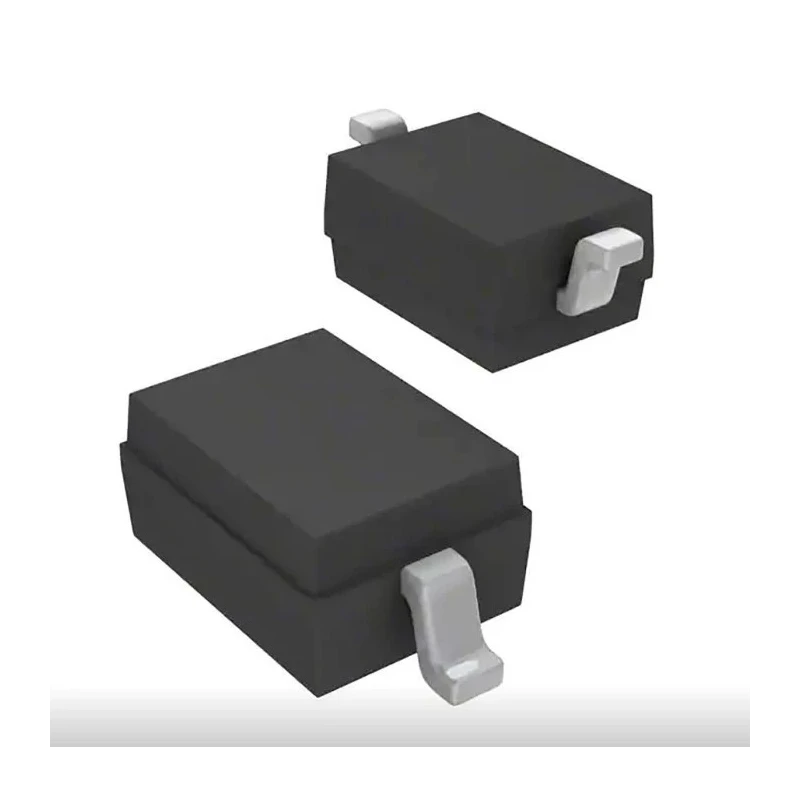

STMicroelectronics 1-Element Uni-Directional TVS Diode 6.2V Breakdown, 12.8V Clamping, 20A Peak Pulse, Surface ESDA051-1JY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.17mm |
| Length | 1.8mm |
| Model | ESDA051-1JY |
| Width | 1.45mm |
| Mount Type | Surface |
| Series | ESDA051-1JY |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 12.8V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.2V |
| Maximum Peak Pulse Current Ippm | 20A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- This diode has a unidirectional configuration for precise ESD protection.
- It supports a maximum peak pulse current of 20A, ensuring robust transient handling.
- The device operates over a temperature range from -55°C to 150°C, suitable for automotive applications.
- Complies with IEC and RoHS standards, and is AEC-Q101 automotive qualified.
- The compact SOD-323 package measures 1.8mm length, 1.45mm width, and 1.17mm height for space-saving PCB designs.
- Maximum reverse leakage current of only 50nA helps minimize power loss.
- Single-element diode design provides reliable ESD and EOS surge protection.
Product Description
STMicroelectronics ESDA051-1JY is a 1-element uni-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic circuits against electrostatic discharge (ESD) and electrical overstress (EOS) surges. It features a breakdown voltage of 6.2V and a clamping voltage of 12.8V, making it suitable for 5V automotive systems and other industrial electronics requiring robust surge protection.
The diode is housed in a compact SOD-323 surface mount package, with dimensions of 1.8mm length, 1.45mm width, and 1.17mm height, allowing for efficient PCB space utilization. It supports a maximum peak pulse current of 20 amperes, ensuring high surge handling capability. The device operates within an extended temperature range of -55°C to 150°C, meeting stringent automotive reliability requirements under the AEC-Q101 standard.
This component complies with IEC and RoHS standards, certifying its environmental and safety compliance. Its maximum reverse leakage current of 50nA minimizes power consumption, enhancing circuit efficiency. With a single diode element and 2 pins, it provides reliable unidirectional protection in various semiconductor and automotive electronic applications.
Uni-directional single diode configuration for targeted transient suppression. Compact SOD-323 surface mount package ideal for high-density PCB layouts. High peak pulse current capacity of 20A ensures effective ESD and EOS protection.
Wide operating temperature range between -55°C and 150°C supports harsh environments. Compliant with IEC, RoHS, and automotive AEC-Q101 standards for quality assurance. Minimal leakage current of 50nA reduces power losses in sensitive electronics.
Optimal for automotive and industrial electronic circuit protection against voltage transients.
This STMicroelectronics ESDA051-1JY 1-Element Uni-Directional TVS Diode is essential for developers and engineers designing protection circuits for automotive, industrial, and other electronic devices where transient voltage suppression is critical. Explore more components in our TVS Diode category to find solutions suited for your specific protection requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breakdown voltage of the ESDA051-1JY diode is 6.2V, making it suitable for 5V automotive systems and other industrial electronics.
This model supports a maximum peak pulse current of 20A, ensuring effective handling of transient surges.
The dimensions of the SOD-323 package are 1.8mm in length, 1.45mm in width, and 1.17mm in height.
The operating temperature range for this diode is from -55°C to 150°C, making it suitable for harsh environments.
The clamping voltage of the ESDA051-1JY is 12.8V, providing effective protection against voltage transients.
This model uses a uni-directional single diode configuration for targeted transient suppression.
The diode complies with IEC and RoHS standards and is also AEC-Q101 automotive qualified.
The maximum reverse leakage current for this diode is 50nA, which helps minimize power loss.
The ESDA051-1JY diode has a single element design, providing reliable ESD and EOS surge protection.
This diode has a pin count of 2, suitable for surface mounting applications.
This diode is optimal for automotive and industrial electronic circuit protection against voltage transients.
The ESDA051-1JY diode is manufactured in India.
