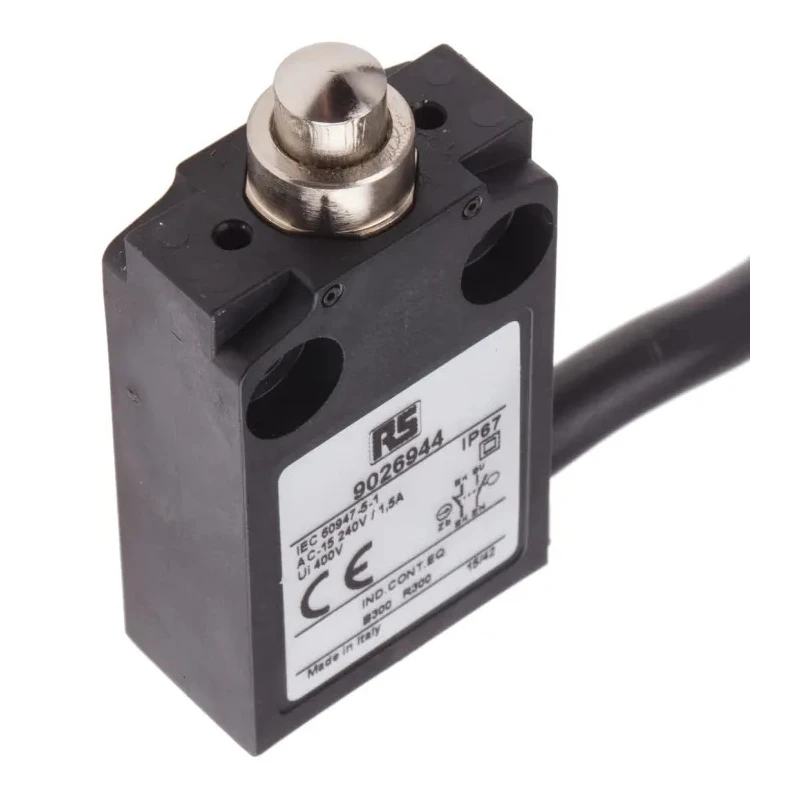

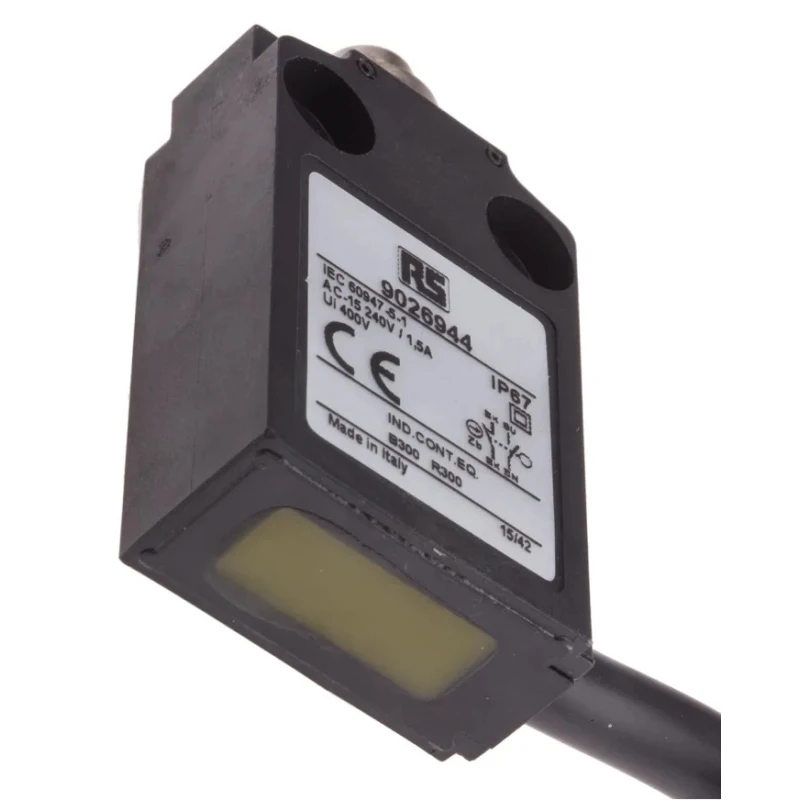

RS PRO Plunger Limit Switch 1 NO/1 NC, IP67, Thermoplastic Housing, 240V AC, 5A IP67

Name: RS PRO Plunger Limit Switch 1 NO/1 NC, IP67, Thermoplastic Housing, 240V AC, 5A IP67
Brand: RS PRO
SKU: 270907
Price: 41.39 USD
Availability: InStock



Category Limit Switches Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Length	31.5mm
Model	IP67
Depth	16mm
IP Rating	IP67
Width	60mm
Housing Material	Thermoplastic
Maximum Operating Temperature	70°C
Mounting Orientation	Vertical
Contact Configuration	1 NO/1 NC
Actuator Type	Plunger
Contact Type	Snap Action
Minimum Operating Temperature	-25°C
Switching Current	5A
Terminal type	Cable
Standards/Approvals	CE, CSA, EN, RU, RoHS, UL, IMQ, IEC
Operating Force	15N
Mechanical Life	10000000Operations
Switching DC Voltage	250V dc
Switching AC Voltage	240V ac
RS PRO Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 400V acBrand	RS PRO

Key Features

Features a plunger actuator type for reliable object presence detection.
IP67 rated housing ensures dust-tight and water immersion protection.
Equipped with snap action contacts for fast switching performance.
Operates at a maximum AC voltage of 240 V and switching current of 5 A.
Designed for vertical mounting with a mechanical life of 10,000,000 operations.
Thermoplastic housing offers chemical and impact resistance in harsh environments.
Operating temperature range spans from -25°C to +70°C ensuring wide industrial applicability.
Pre-wired with cable terminals for quick and secure installation.

Product Description

RS PRO IP67 Plunger Limit Switch model IP67 is a robust and reliable limit switch featuring a plunger actuator for industrial automation and control systems. This limit switch uses a thermoplastic housing material providing strong resistance to impact and chemicals, suitable for harsh operating environments.

The device is IP67 rated, making it completely dust-tight and capable of withstanding immersion in water up to 1 meter, ensuring reliability even in wet or dusty conditions.

Operating at a switching AC voltage of 240 V and current of 5 A, the switch reliably changes contact positions between normally open (NO) and normally closed (NC) states using snap-action contacts.

Its compact dimensions of 31.5 mm length, 60 mm width, and 16 mm depth allow easy integration in control panels and machinery. The switch supports vertical mounting orientation and includes cable-type terminals pre-wired for fast setup.

With an operating temperature range from -25°C to +70°C and a mechanical life expectancy of 10 million operations, this limit switch delivers durability and consistent performance in demanding applications.

Certified with CE, CSA, UL, RU, IMQ, IEC, and RoHS standards, it meets stringent quality and safety requirements. Plunger actuator type for precise position detection. Thermoplastic housing with IP67 ingress protection. Snap action contact type for quick switching.

Maximum switching voltage of 240 V AC and 250 V DC. Switching current rated at 5 A. Vertical mounting orientation capability. Operating force of 15 N for actuating the plunger. Mechanical life of 10,000,000 operations ensures longevity.

Dimensions: Length 31.5 mm, Width 60 mm, Depth 16 mm. Pre-wired cable terminals for ease of installation. Manufactured in Italy to high-quality standards.

This RS PRO plunger limit switch is ideal for industrial automation, manufacturing lines, conveyor systems, and other applications requiring accurate object presence or position detection.
