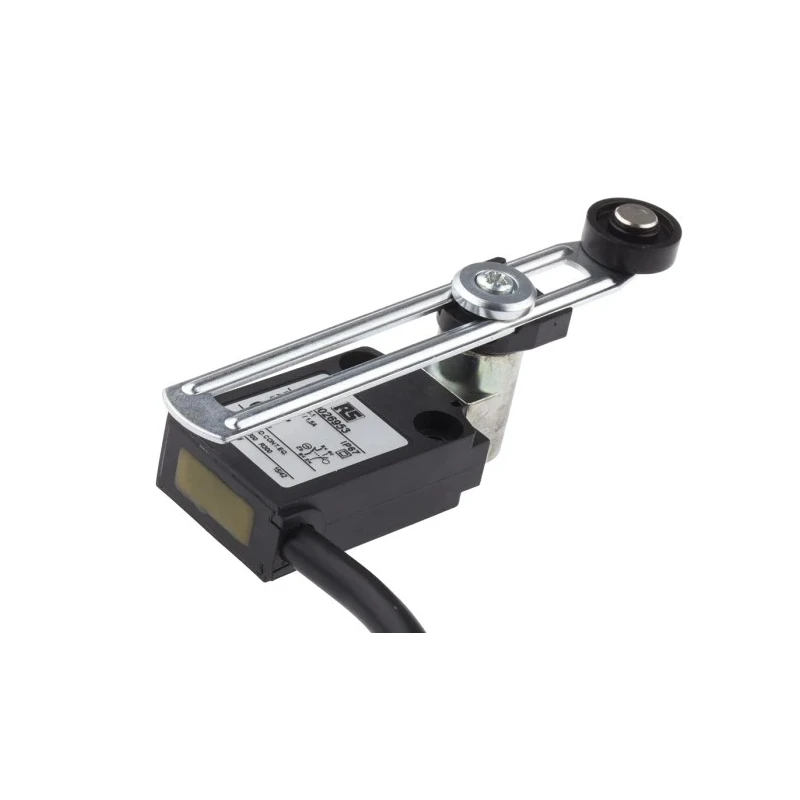

RS PRO Adjustable Roller Lever Limit Switch 1 NO/1 NC Thermoplastic Housing IP67 240V AC 5A IP67
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Length | 31.5mm |
| Model | IP67 |
| Depth | 16mm |
| IP Rating | IP67 |
| Width | 158mm |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Adjustable Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Cable |
| Standards/Approvals | CE, IEC, IMQ, RoHS, RU, UL, EN, CSA |
| Operating Force | 0.08N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
Key Features
- Adjustable roller lever actuator type for flexible installation.
- Thermoplastic housing provides chemical and impact resistance.
- Rated IP67 for dust tightness and water immersion protection.
- Operates at 240 V AC with 5 A switching current capacity.
- Snap action contact type with 1 normally open and 1 normally closed contact.
- Operating temperature range from -25°C to 70°C for harsh environments.
- Mechanical life of 10 million operations ensuring long-term reliability.
- Vertical mounting orientation for versatile setup.
Product Description
RS PRO IP67 Adjustable Roller Lever Limit Switch 1 NO/1 NC features a thermoplastic housing and is designed for reliable position detection in demanding industrial environments. Operating at 240 V AC and capable of handling up to 5 A current, it supports automation and safety applications in manufacturing and processing industries.
The adjustable roller lever actuator offers a length range from 86 mm to 158 mm for flexible installation setups. Its snap-action contacts reliably switch circuits, providing one normally open and one normally closed channel for dual control capabilities.
Its robust thermoplastic body is resistant to impacts and chemicals, while the IP67 rating ensures it remains dust-tight and fully protected against temporary immersion in water, suitable for outdoor or harsh indoor conditions.
The switch operates efficiently within a temperature range of -25°C to 70°C and provides a mechanical life expectancy of 10 million operations, ensuring long service life. The vertical mounting orientation, combined with a low operating force of 0.08 N, makes it adaptable in a wide variety of automation and conveyor applications.

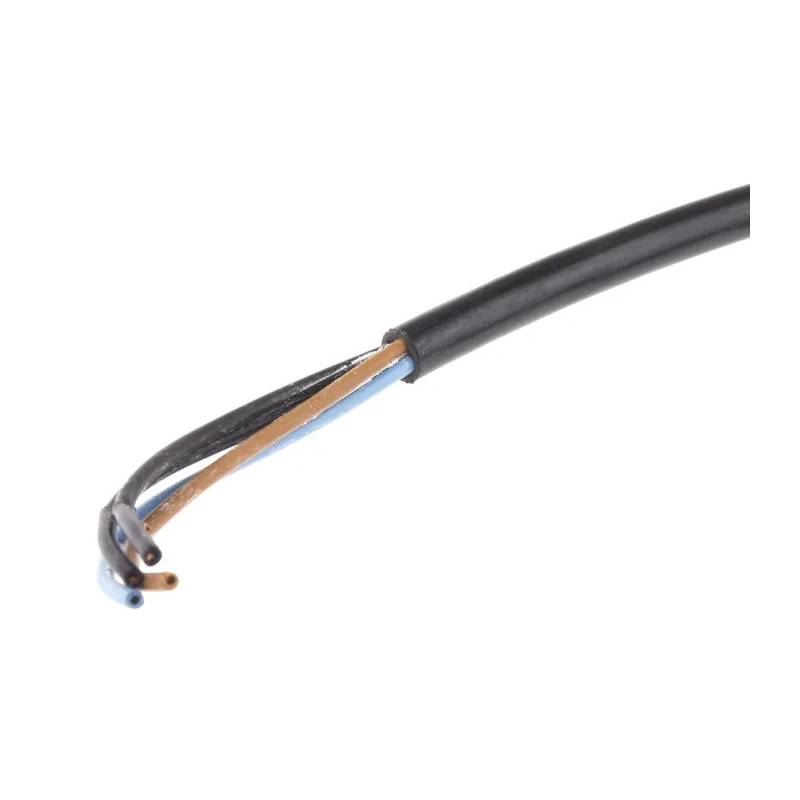

This limit switch includes cable terminals for easy wire lead connections and complies with major industrial standards including CE, IEC, IMQ, RoHS, RU, UL, EN, and CSA, guaranteeing safety and performance.
Adjustable roller lever actuator type for flexible installation. Thermoplastic housing material resists chemical and impact damage. IP67 rated sealing protects against dust and water immersion. Rated for 240 V AC and 5 A switching current for robust operation.
Includes 1 normally open and 1 normally closed snap action contacts. Operating temperature range of -25°C to 70°C for use in tough environments. Mechanical life of 10 million operations for extended reliability. Vertical mounting orientation and low operating force of 0.08 N.
Cable terminal type for secure electrical connections. Certified under CE, IEC, IMQ, RoHS, RU, UL, EN, and CSA standards.
This limit switch is suited for industrial automation, manufacturing, material handling, and conveyor systems requiring precise position detection and reliable control switch operation. RS PRO products provide professional-grade components designed for demanding environments.
Explore additional Limit Switch products and industrial automation solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The limit switch is rated for a maximum switching current capacity of 5 A.
It operates at 240 V AC.
The operating temperature range is from -25°C to 70°C.
It features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) with snap action contact type.
The housing is made of thermoplastic, providing resistance to chemicals and impacts.
It has a mechanical life expectancy of 10 million operations.
It is designed for vertical mounting orientation.
This model features an adjustable roller lever actuator type.
The dimensions are 158 mm in width, 31.5 mm in length, and 16 mm in depth.
It complies with several standards including CE, IEC, IMQ, RoHS, RU, UL, EN, and CSA.
It includes cable terminals for secure electrical connections.
It is suited for industrial automation, manufacturing, material handling, and conveyor systems requiring precise position detection.
