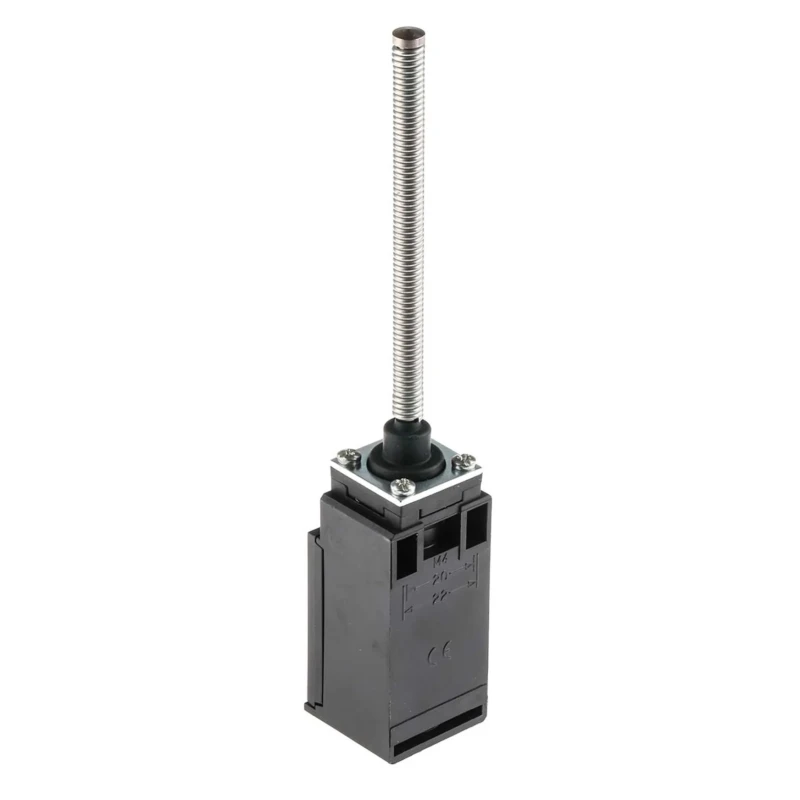

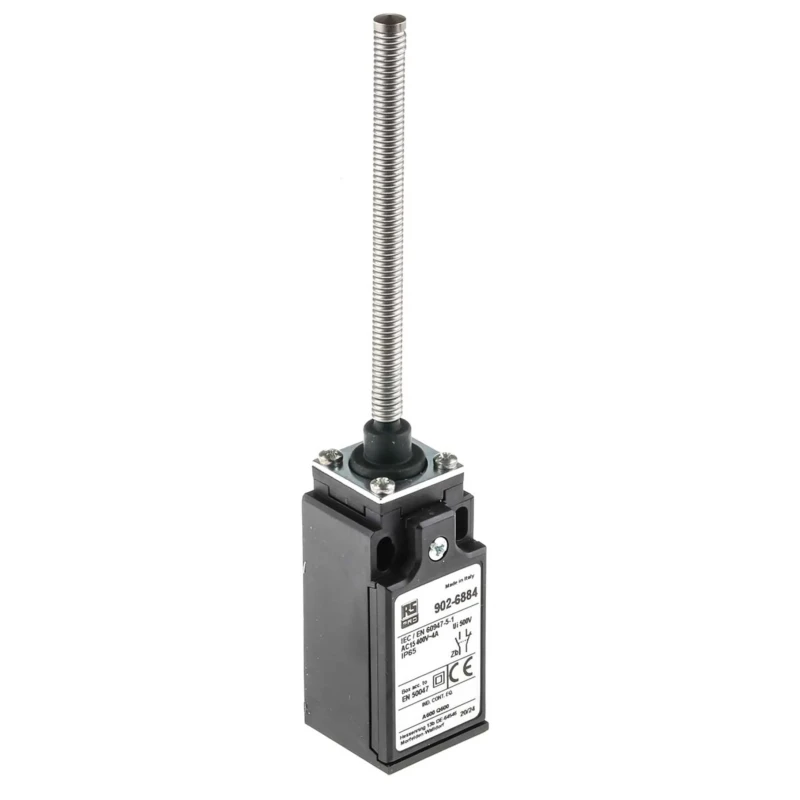

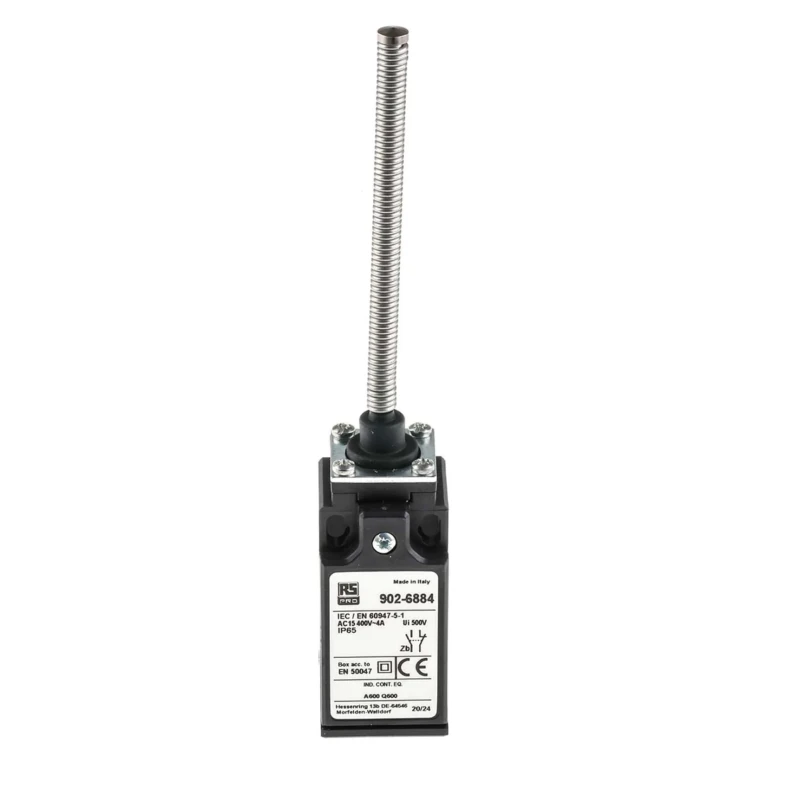

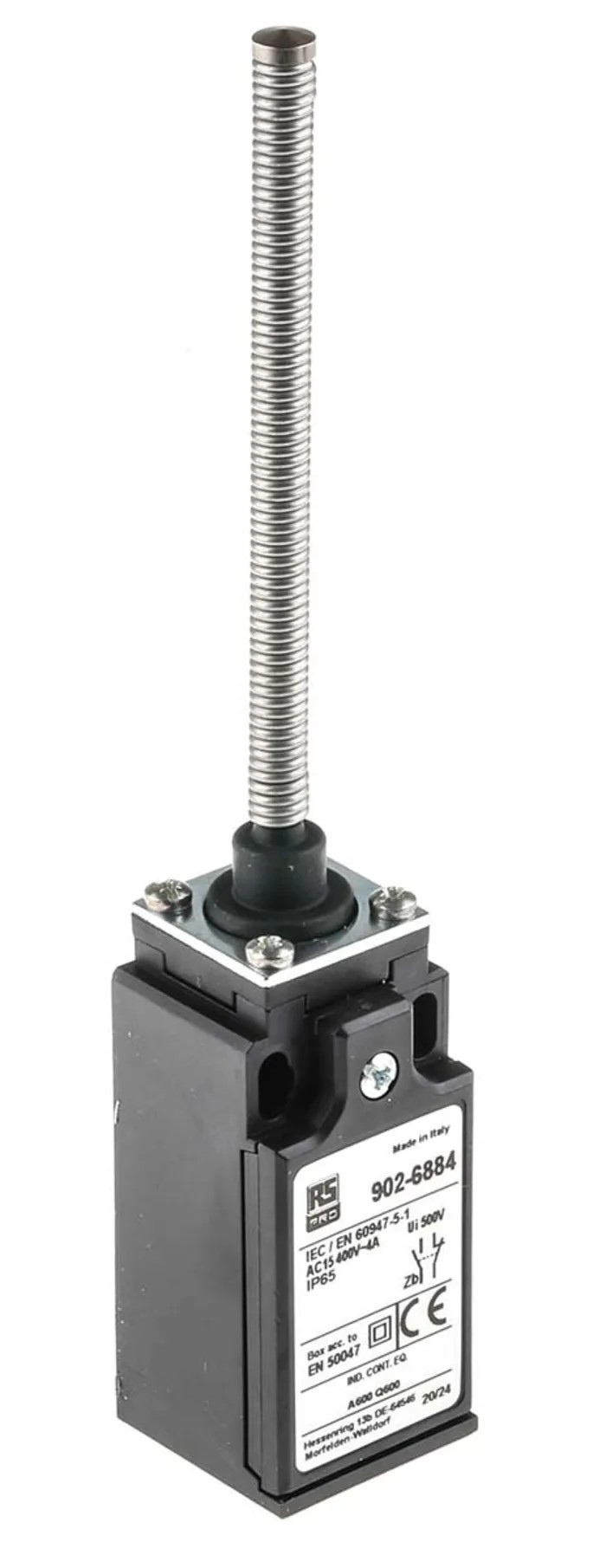

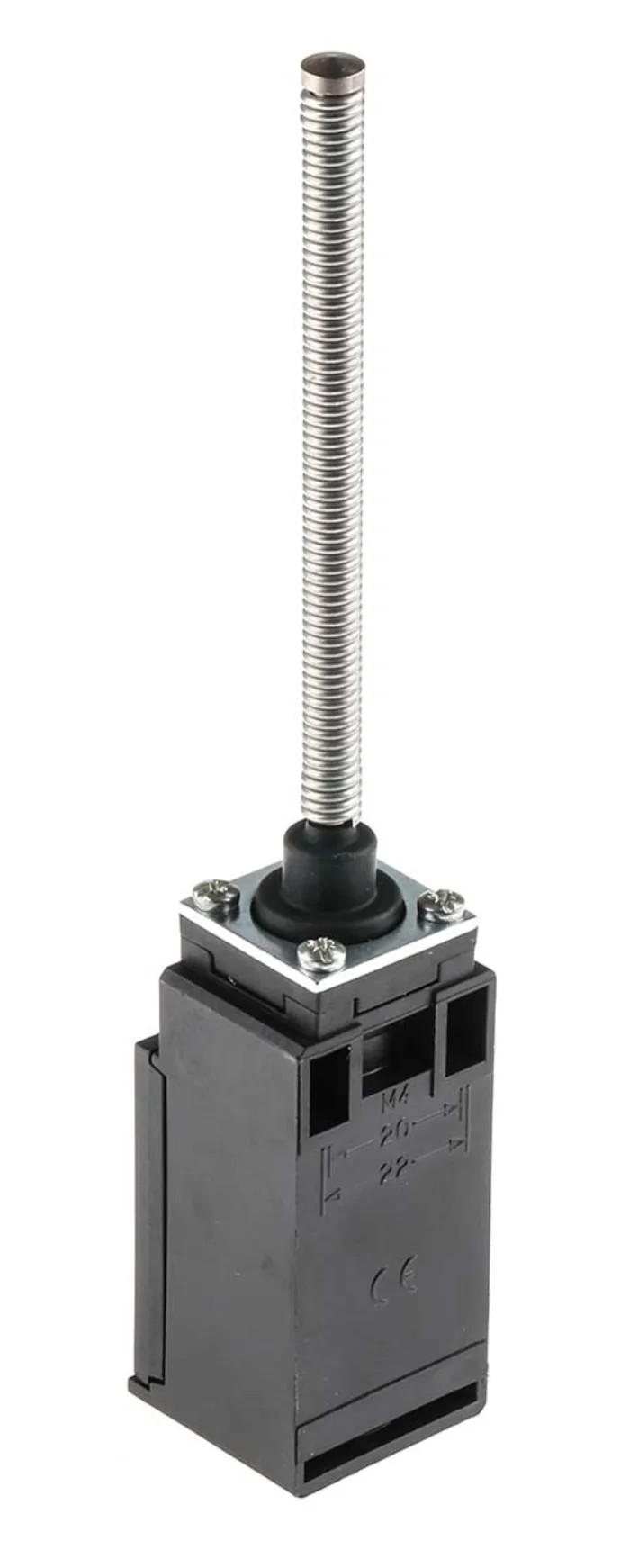

RS PRO Coil Spring Limit Switch 1 NO/1 NC, IP65 Fibreglass Reinforced Thermoplastic Housing, 400V AC, 10A IP65
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Length | 30.3mm |
| Model | IP65 |
| Depth | 30mm |
| IP Rating | IP65 |
| Width | 170mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Coil Spring |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Screw |
| Standards/Approvals | CSA, EN, UL, RoHS, IMQ, IEC |
| Operating Force | 0.12N |
| Mechanical Life | 15000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 400V ac |
| Conduit Entry | M20 x 1.5 |
Key Features
- The switch features a coil spring actuator and snap action contact type for precise operation.
- It is rated IP65 for dust, water, and oil resistance, suitable for demanding environments.
- Supports a switching current of 10A with screw terminals for secure cable connection.
- Operates at voltages up to 400V AC and 250V DC, with a mechanical life of 15 million operations.
- Designed with fibreglass reinforced thermoplastic housing for durability and double insulation.
- Minimum operating temperature is -25°C and maximum operating temperature is 70°C.
- Vertical mounting orientation with low operating force of 0.12N ensures ease of installation.
- Complies with CSA, EN, UL, RoHS, IMQ, and IEC standards for quality and safety.
Product Description
RS PRO IP65 Coil Spring Limit Switch 1 NO/1 NC is a robust and reliable snap limit switch designed for automatic control of mechanical equipment in industrial, manufacturing, and automation environments. It is ideal for applications such as machinery, conveyors, robotic arms, and garage door control where precise limit detection is vital.
This switch features a coil spring actuator and snap action contact that guarantees exact and repeatable contact closure, enhancing operational dependability. Its housing is made from fibreglass reinforced thermoplastic, providing excellent mechanical strength and double insulation for safety.
Rated IP65, this limit switch provides excellent protection against dust ingress and water jets, making it suitable for harsh industrial environments. It operates efficiently within a temperature range from -25°C to 70°C, ensuring wide usability.
The device supports switching currents up to 10A and voltages of 400V AC and 250V DC, connected via secure screw terminals. Its vertical mounting orientation and low operating force (0.12N) allow for easy installation and reliable operation.
Its mechanical lifespan of 15 million operations ensures long-term durability and minimal maintenance. This switch meets international standards including CSA, EN, UL, RoHS, IMQ, and IEC, reflecting its certified quality.
The switch's coil spring actuator provides responsive mechanical operation. IP65 rating ensures resilience against dust and water exposure. Fibreglass reinforced thermoplastic housing offers robust electrical insulation and durability.
Capable of switching currents up to 10A with screw terminal connections. Mechanical life extends to 15 million operations for reliable longevity.
This RS PRO limit switch is manufactured in Italy, representing European quality manufacturing standards. It is ideal for industrial automation, construction machinery, and equipment control systems where safety and precision are critical. Explore more premium quality Limit Switches and electrical components in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 10A.
It operates at voltages up to 400V AC and 250V DC.
This unit has an IP65 rating, providing protection against dust and water exposure.
The dimensions are 170mm in width, 30mm in depth, and 30.3mm in length.
The housing is made from fibreglass reinforced thermoplastic, offering durability and electrical insulation.
It operates within a temperature range of -25°C to 70°C.
This model features a coil spring actuator for precise operation.
The switch is designed for vertical mounting orientation.
The mechanical life of this unit extends to 15 million operations.
It complies with CSA, EN, UL, RoHS, IMQ, and IEC standards.
This limit switch features a contact configuration of 1 NO (Normally Open) and 1 NC (Normally Closed).
The operating force required is 0.12N, which ensures ease of operation.
