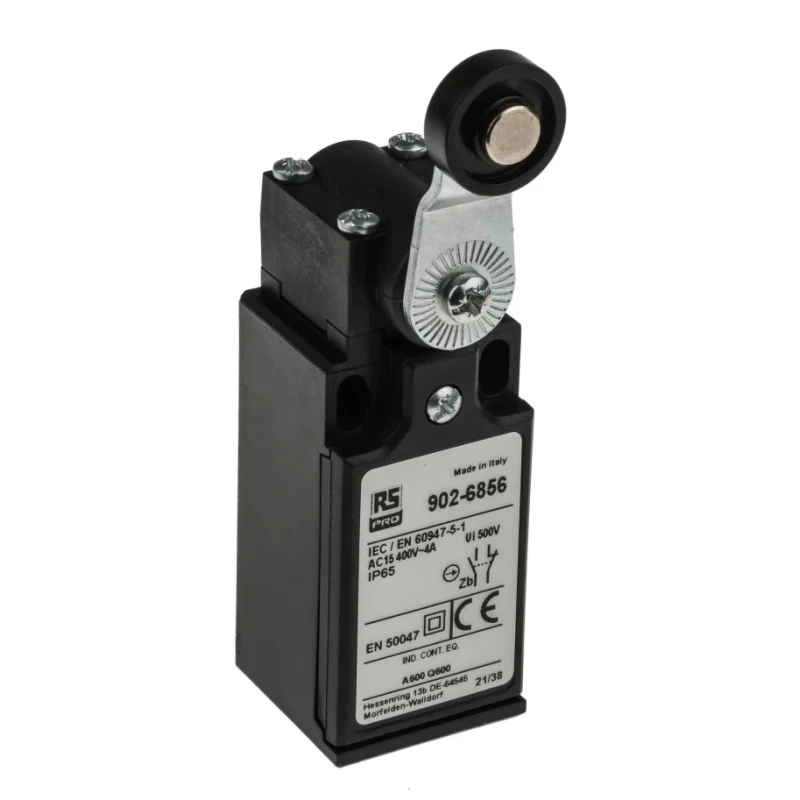

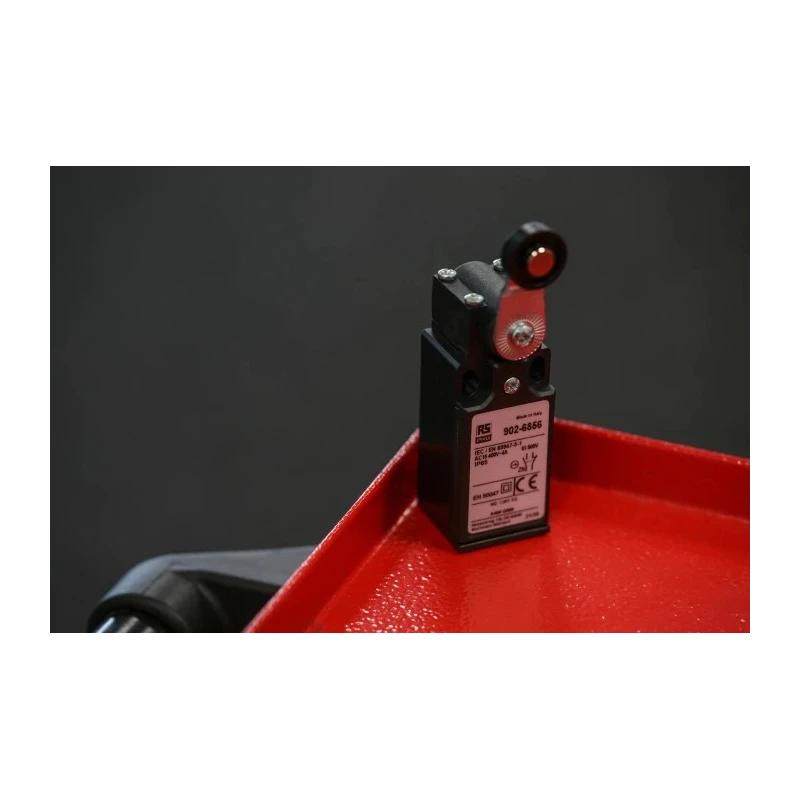

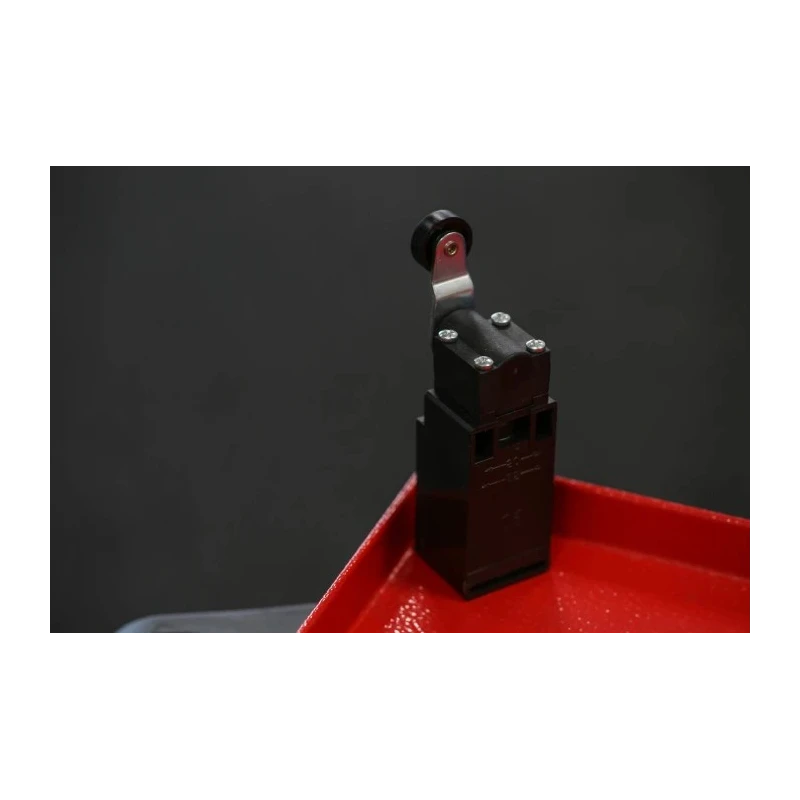

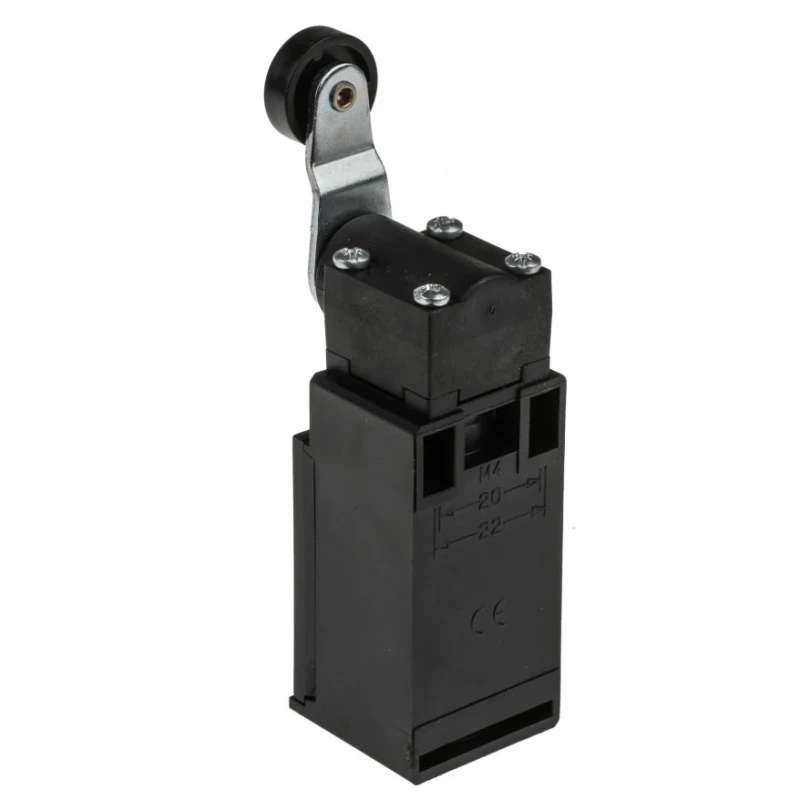

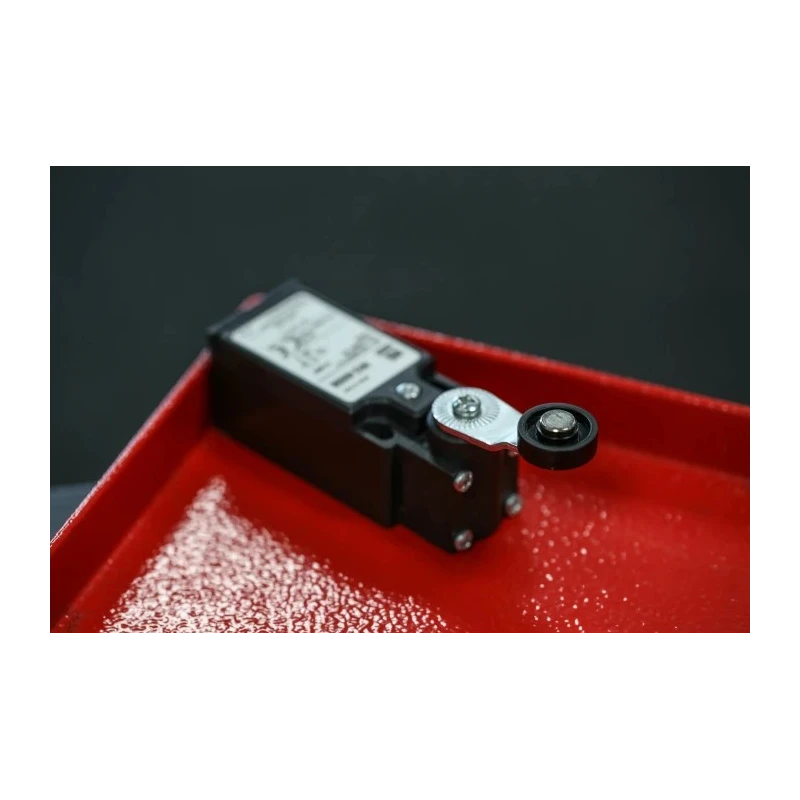

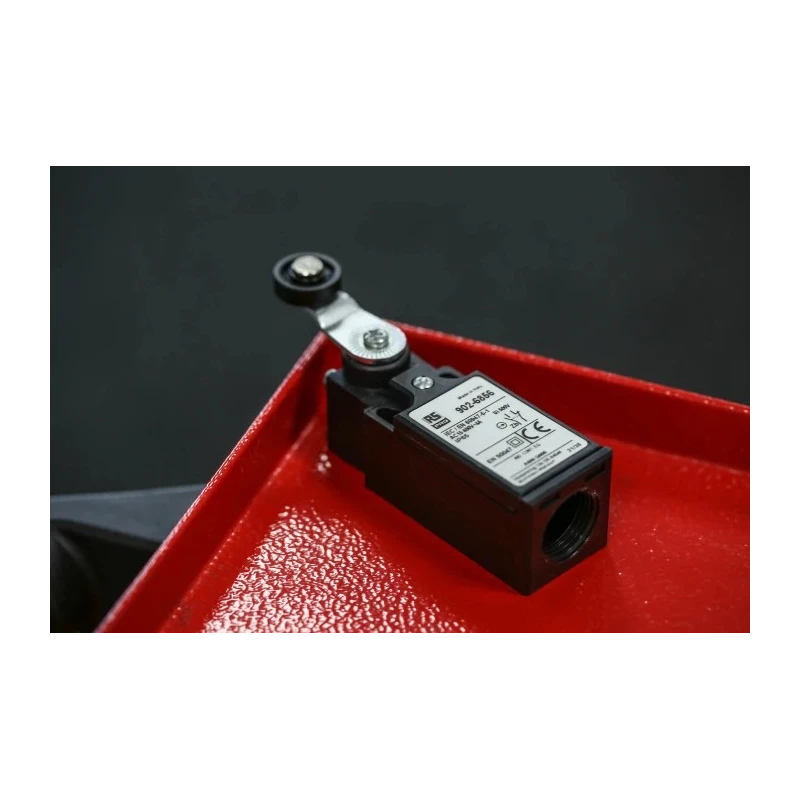

RS PRO Roller Lever Limit Switch, 1 NO/1 NC, IP65, Fibreglass Reinforced Thermoplastic Housing, 400V AC, 10A IP65

RS PRO IP65 Roller Lever Limit Switch 1 NO/1 NC is engineered for industrial automation and mechanical equipment control with a durable fibreglass reinforced thermoplastic housing and a reliable roller lever actuator. The switch provides snap action contact closure and precise operation to start, stop, or regulate machinery effectively.

This limit switch is rated IP65, protecting against dust ingress and water jets, making it suitable for demanding industrial environments. It supports operation at 400V AC and 250V DC with a maximum current rating of 10A, ensuring compatibility with various electrical control circuits.

The switch features 1 normally open (NO) and 1 normally closed (NC) contacts, allowing for flexible switching applications. Its compact design with dimensions of 30.3mm length, 106mm width, and 30mm depth fits well in limited space installations. The product can operate within a wide temperature range from -25°C up to +70°C, ensuring robust performance under diverse environmental conditions.

The roller lever actuator is adjustable for versatile mechanical settings and the cable screw terminal connection offers secure wiring. The device features a mechanical life expectancy of 15 million operations, assuring longevity in continuous use scenarios.

Certified by several international standards such as CE, CSA, EN, IEC, IMQ, RoHS, RU, and UL, this switch meets stringent quality and safety requirements. It is made in Italy, reflecting high manufacturing standards.

Typical industrial applications include control of conveyor systems, robotic arms, safety interlocks, and other automated machinery where precise limit detection is critical. Its vertical mounting orientation enables straightforward installation in various equipment layouts.

Roller lever actuator ensures precise snap action switching. 1 NO and 1 NC contact configuration for versatile use. Robust fibreglass reinforced thermoplastic housing with double insulation. IP65 protection against dust and water jets.

Electrical ratings: 10A current, 400V AC and 250V DC voltage. Wide operating temperature range from -25°C to +70°C. Mechanical life of 15 million operations guarantees durability. Screw terminal cable type connection for secure wiring.

Compact dimensions fit constrained installation spaces. Certified to CE, CSA, EN, IEC, IMQ, RoHS, RU, and UL standards. Explore the RS PRO and Limit Switch category on EnvMart for professional-grade industrial automation components to optimize your control systems.
