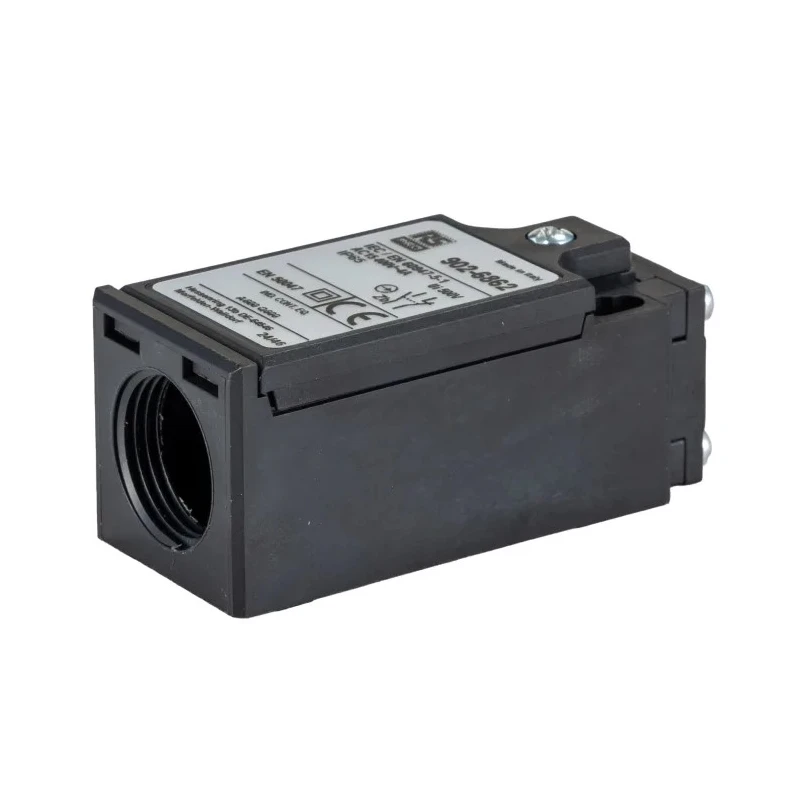

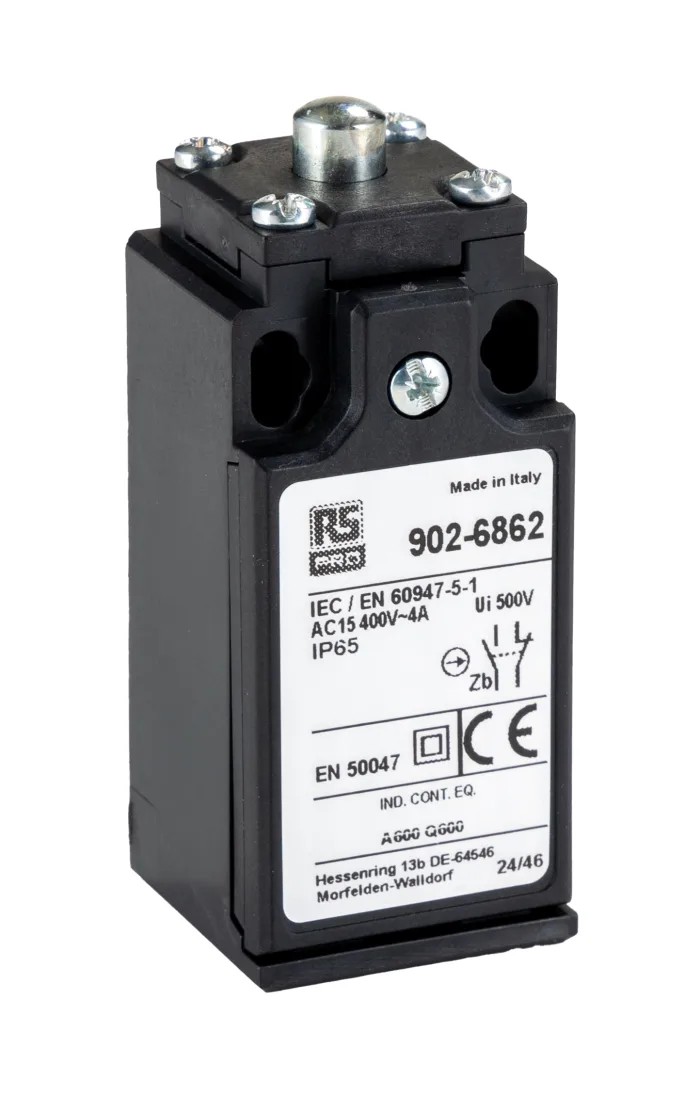

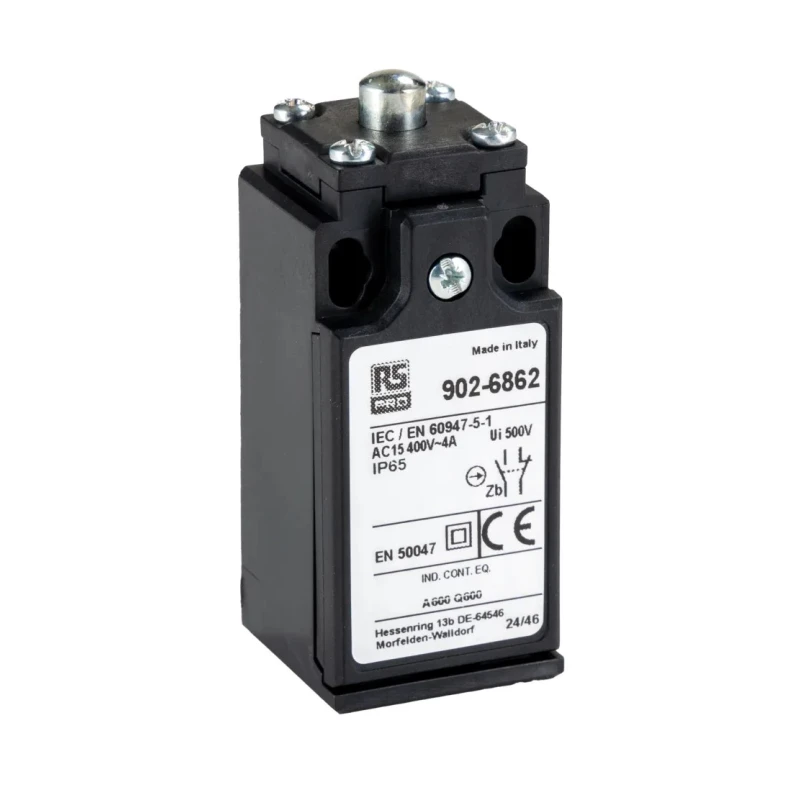

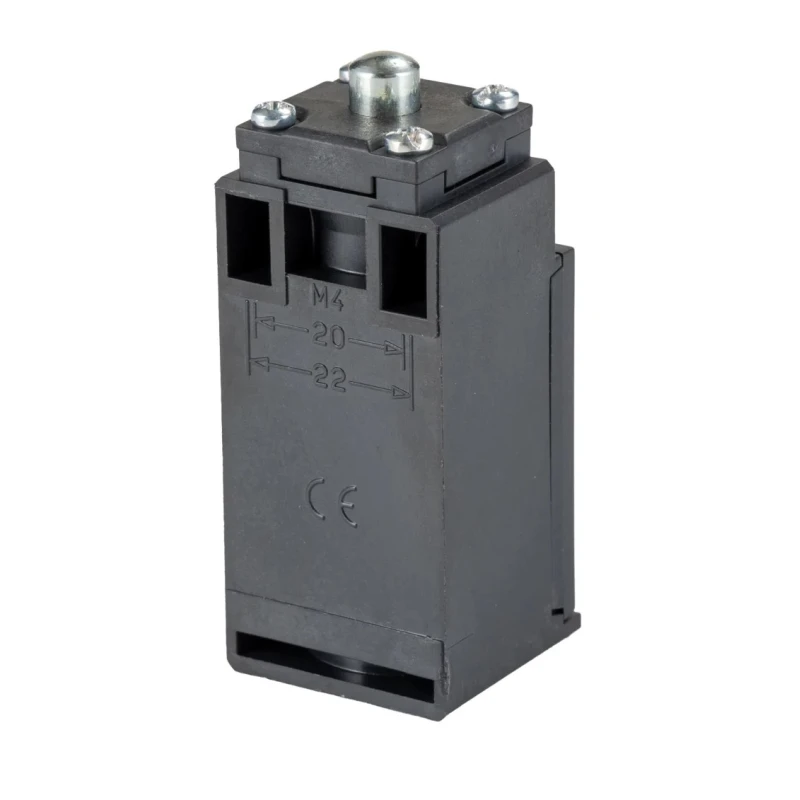

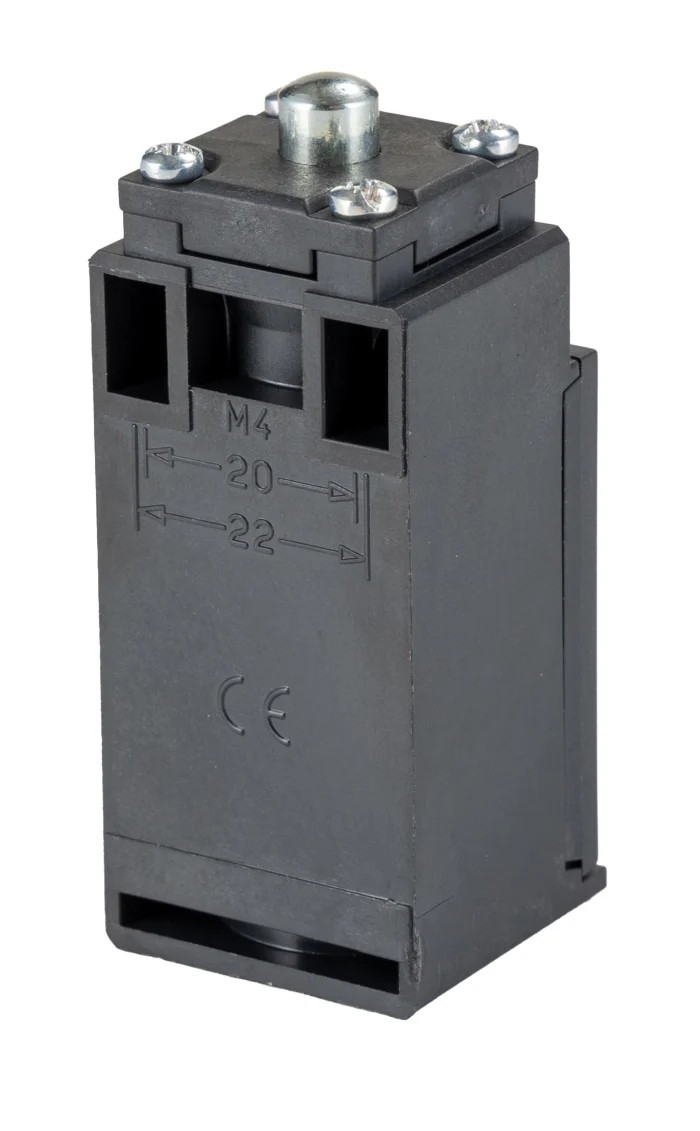

RS PRO Plunger Limit Switch 1 NO/1 NC, IP65 Fibreglass Reinforced Thermoplastic Housing 400V AC 10A IP65
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Length | 30.3mm |
| Model | IP65 |
| Depth | 30mm |
| IP Rating | IP65 |
| Width | 73mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Cable |
| Standards/Approvals | UL, RoHS, IMQ, IEC, EN, CSA |
| Operating Force | 15N |
| Mechanical Life | 15000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 400V ac |
| Conduit Entry | M20 x 1.5 |
| RS PRO Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 400V acBrand | RS PRO |
Key Features
- Features a plunger actuator type for precise position detection.
- Constructed with fibreglass reinforced thermoplastic housing for durability.
- Rated IP65 for dust-tight and low-pressure water jet protection.
- Supports switching current up to 10A at 400V AC.
- Contact configuration is 1 Normally Open and 1 Normally Closed.
- Designed to operate between -25°C and 70°C ambient temperature.
- Mechanical life rated for 15 million operations ensuring long-term reliability.
- Terminals are cable type with conduit entry of M20 x 1.5.
Product Description
RS PRO IP65 Plunger Limit Switch model IP65 features a robust fibreglass reinforced thermoplastic housing designed for industrial automation applications requiring a reliable limit switch capable of handling switching currents up to 10A at 400V AC.
This electromechanical limit switch utilizes a plunger actuator with snap action contacts configured as 1 Normally Open (NO) and 1 Normally Closed (NC) providing accurate and consistent switching performance. The device's IP65 rating assures protection from dust ingress and low-pressure water jets, making it suitable for demanding environments.
The switch operates effectively within a temperature range of -25°C to 70°C and offers an impressive mechanical life of 15 million cycles, contributing to minimal maintenance and operational reliability in industrial, manufacturing, and machinery control systems.
Its housing, made from reinforced thermoplastic fibre-glass, ensures double insulation and mechanical strength. The cable terminal type with a conduit entry of M20 x 1.5 facilitates secure electrical connections. The switch is designed primarily for vertical mounting, providing flexible deployment options in control panels and machinery.
Applications for this limit switch span across industrial automation, robotics, conveyor systems, positioning, and safety detection tasks within manufacturing, processing plants, and material handling sectors.
Features a plunger actuator type for precise position detection. Constructed with fibreglass reinforced thermoplastic housing for durability. Rated IP65 for dust-tight and low-pressure water jet protection. Supports switching current up to 10A at 400V AC.
Contact configuration is 1 NO and 1 NC for versatile control logic. Operates within temperature range -25°C to 70°C with high mechanical life expectancy. Cable terminal type with M20 x 1.5 conduit entry. Vertical mounting orientation suitable for various industrial configurations.
Explore more RS PRO Limit Switches for diverse control and automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 10A at 400V AC and 250V DC.
It has an IP65 rating, providing protection against dust ingress and low-pressure water jets.
The switch operates effectively within a temperature range of -25°C to 70°C.
This model utilizes a plunger actuator type for precise position detection.
It is rated for a mechanical life of 15 million operations, ensuring long-term reliability.
The contact configuration is 1 Normally Open (NO) and 1 Normally Closed (NC).
It is designed for vertical mounting, providing flexible deployment options in various applications.
The housing is made from fibreglass reinforced thermoplastic, ensuring durability and mechanical strength.
The terminal type is cable with a conduit entry of M20 x 1.5.
It complies with several standards including UL, RoHS, IMQ, IEC, EN, and CSA.
It is suitable for industrial automation, robotics, conveyor systems, positioning, and safety detection tasks.
The operating force for this model is 15N.
